Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine

China Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine supplier
Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine supplier Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine supplier

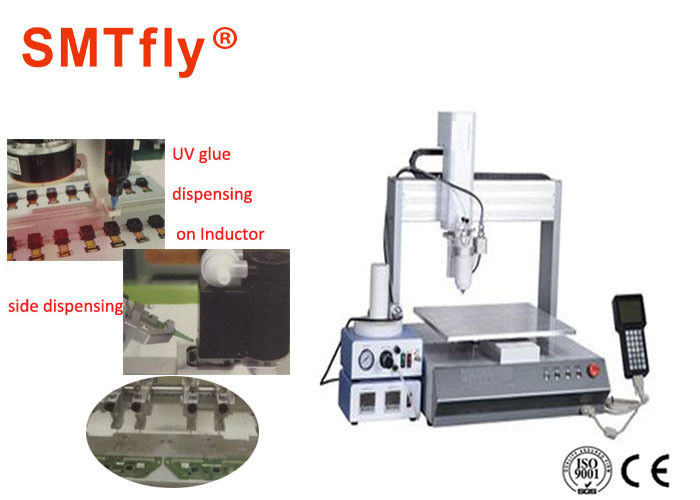

Large Image :  Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-7000

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 30Set/Month
Detailed Product Description
Working Temperature: 0~40°C Working Relative Humidity: 20~90% No Condensation
Repeat Ability: +/- 0.01mm / Axis Interpolation Function: 3 Axis
I/O Signals Port: 8 Inputs / 8 Outputs Trade Term: EXW
High Light:

conformal coating machine

,

glue coating machine

Revival of SMT Glue,Robotic Dispensing Systems,SMTfly-7000 Technical parameters:



Item 7200N 7300N 7400N 7500N 7300S 7400S 7500S

Working Ares:

X/Y/Z mm

200/200/50 300/300/100 400/400/100 400/400/100 300/300/100 400/400/100 500/500/100
Max Load Y/Z Axis 5kg / 3kg 11kg / 6kg 15kg / 8kg
Speed X&Y/Z 500/350 mm/s 800/500 mm/s 500/350 mm/s
Repetitive Positioning Accuracy +/- 0.02mm/Axis +/- 0.01mm / Axis +/- 0.01mm / Axis
Program Capacity At least 100 groups, 4000 points / Group
Date Storage Type CF Card
Byte 32 Bit
Program Display LCD
Motor System 2 phase stepping motor 3phase stepping motor Servo Motor

Transmission

Mode

Synchronous Belt X/Y Synchronous Belt, Z ball screw Precision Ball Screw

Interpolation

Function

3 Axis

Programming

Mode

Teach Pendant
I/O Signals Port 8 Inputs / 8 Outputs

External Control

Interface

RS232
Power Supply AC 100~230V 300W

Working

Temperature

0~40°C
Working Relative Humidity 20~90% no condensation
Dimensions: mm 385/380/500 485/505/610 585/610/610 685/700/670 485/505/610 585/610/610 685/700/670
Robot Weight 23kg 34kg 41kg 52kg 50kg 55kg 70kg



Revival of SMT Glue,Robotic Dispensing Systems,SMTfly-7000 Description:



The application in filling, adhesive, moulding and sealing which need to inject adhesive and sealant.

SMTfly Multi-axis system and on line dispensing arm which provides a highly reliable operation and good repeat ability.

Multi-axis system which can simple programming for point, stripes, arc, composite curve, and different

patterns.

This machine can set up quickly and easy to operate, can save more more time for other projects so

that help to increase production.



Revival of SMT Glue,Robotic Dispensing Systems,SMTfly-7000 Features:



Easy to program;

Reduce the process time so that to help increase production;

Fully integrated positioning and dispensing function;

The perfect integration of dispensing and positioning function.



Revival of SMT Glue,Robotic Dispensing Systems,SMTfly-7000 Application to:



Filling, Dotting, Forming, Drawing, Under filling, Coating, Doming, etc.



Apply to:



Adhesive,Coating materials,Acrylic resin adhesive,Grease,Oil paint,Reagent,Sealant,Solder

paste, etc.

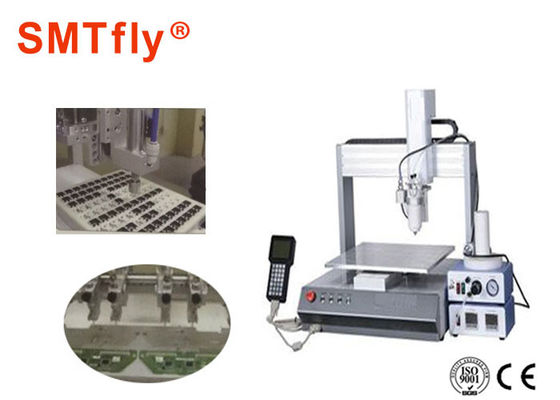

Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine    Professional SMT Glue Dispensing Equipment , Automatic Solder Paste Dispenser Machine
