Stand - Alone SMTfly SMTfly Automation with 0.5mm Cutting Accuracy

China Stand - Alone SMTfly SMTfly Automation with 0.5mm Cutting Accuracy supplier
Stand - Alone SMTfly SMTfly Automation with 0.5mm Cutting Accuracy supplier Stand - Alone SMTfly SMTfly Automation with 0.5mm Cutting Accuracy supplier

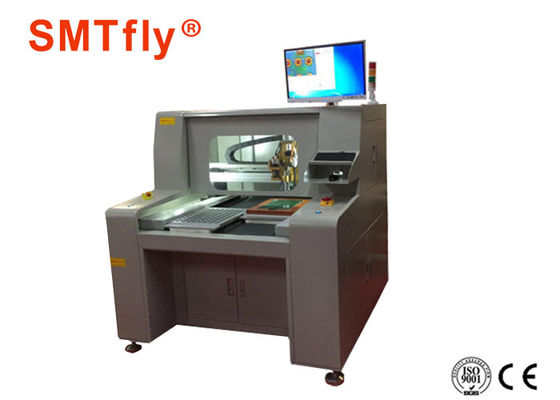

Large Image :  Stand - Alone SMTfly SMTfly Automation with 0.5mm Cutting Accuracy

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F04

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Detailed Product Description
Cutting Speed(max.): 80mm/s Machine Repeat Ability: ± 0.02mm
Air Supply: 4-6KG/cm2 Power Consumption: 3KVA
Dust Collection: Dust On The 2HP Cutting Accuracy: ± 0.05mm
High Light:

pcb cnc router machine

,

pcb depanelizer machine

PCB Stand-Alone Routers - SMTfly Automation with 0.5mm Cutting Accuracy,SMTfly-F04​ Specification:



Model

SMTfly-F04

Standard working area

320*320mm

Power

220V, 4.2KW

Manipulator Repeat ability

±0.02mm

Resolution

±0.01mm

Board Positioning

Dual workstation with nest fixture or pin fixture

Panel Location

Located by tooling holes or edges of PCB

Loading

Manual

Unloading

Manual

Panel Size

320*320mm(standard)

Panel Thickness

0.5-3.5mm

Spindle motor

KAVO Spindle

Tool Change

Manual

Dust filtration system

3KW Vacuum Cleaner

Vision system

High resolution CCD video camera

Programming

Vision assisted point to point manual teaching

Editing Function

Dry run vision assisted / test run mode

Machine weight

500kgs

Machine dimension

113*140*108cm



PCB Stand-Alone Routers - SMTfly Automation with 0.5mm Cutting Accuracy Features:



1. Manual loading/unloading processing;

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value;

3. Friendly touch panel with 10X CCD camera to minimize the time of programming;

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy;

5. Auto router bit check to prevent the bit break incomplete cutting.



Pcb Router - Aluminum PCB Routing Machine,SMTfly-F04:

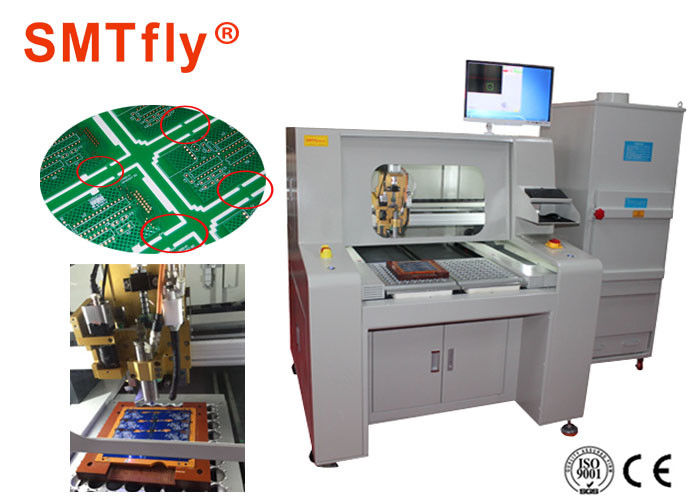

SMTfly-F04 is a machine cutting multi-panel PCB according to the pre-edited path by use of high-speed motion of milling cutter. Getting rid of the cutting flaws of manual cutting, C-CUT or Push cut, it improves product quality and reduces scrap rates.

The machine adopts human-machine interface vie Windows XP, which is simple and convenient, able to achieve automatic cutting path correction, edit and modification of high-pixel CCD program, block program and single-step program.

The PCB with two interactive plates loading and unloading materials will effectively reduce machine idle time, thus achieve an ideal productivity. With a high-pixel CCD amplification lens, auxiliary demonstration program and editing function, the machine can work more accurately and get sharper graphics. Equipped with automatical mark positioning correction system, the motion path is displayed in real time and traced in an analog way; all in all realize a clear vision.

Due to the automatic position correction function, PCB can cut more accurately. Within the maximum 3mm, the machine can correct the deviated position automatically, therefore lowers the standard for operators to place the plate, in this way to improve work efficiency immensely.

The copy function of the two plates, the block, arrays, multi-angle plate, the single tracing modification function and block editing function indeed simplify the process of programming and increase efficiency.



Why us



1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3.Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.
