330 * 330mm Inline PCB Depaneling Router Machine With KAVO Spindle

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

330 * 330mm Inline PCB Depaneling Router Machine With KAVO Spindle

China 330 * 330mm Inline PCB Depaneling Router Machine With KAVO Spindle supplier
330 * 330mm Inline PCB Depaneling Router Machine With KAVO Spindle supplier 330 * 330mm Inline PCB Depaneling Router Machine With KAVO Spindle supplier

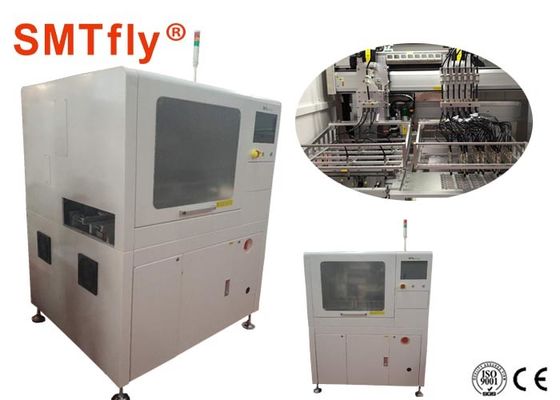

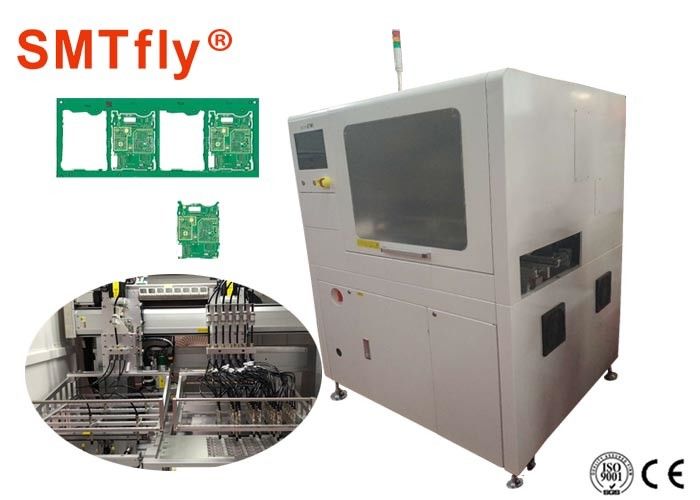

Large Image :  330 * 330mm Inline PCB Depaneling Router Machine With KAVO Spindle

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F05

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Detailed Product Description
Precision Position: 0.1mm Cutting Range: 330*330mm(S)
Servo Control: Fuji Servo Airspeed: 60m/min
Cutting Speed: 0-100mm/s Suction Air Pressure: 195mm-Ag
Color: White Warranty: 1Year
High Light:

cnc pcb router machine

,

pcb depanelizer machine

330*330mm Inline PCB Router Machine / Pcb Depaneling Router With Germany KAVO Spindle Specification:


XYZ itinerary450*600*60mm (S)
XYZ itinerary620*700*60mm(L)
RouterMin 0.8mm,max 3.0mm
Cutting Speed0-100mm/s
Shape of CuttingLine,L shape,Square,Round,Arc
Airspeed60m/min
Spindle motorImported from Germany
Cutting range330*330mm(S)
Cutting range500*420mm(L)
Machine Size1732*1100*2088mm(S)
Machine size2032*1220*2088mm(L)
Host controlIndustrial computer
Servo controlFuji servo
Static eliminationSMC Ion generator
Vacuum methodUnder vacuum
Precision position0.1mm
Screw guideHIWIN/THK
Track width adjustmentAutomatic
Into board directionLeft in right out
Entry and exit methodVacuum suction
Board thickness0.6-5mm
PowerA220V 50Hz
Power consumption1.5Kw
Air consumption10N1/min
HMI12 inch industrial capacitive screen
Operation EnvironmentWin 7
Permission distinctionPassword
Dust filtrationSecondary filtration
Weight900Kg


Auto Routing-PCB Depaneling Router Machine​ Optional Dust Collector:


Dust collector (mainly used to collect dust generated during cutting). Its main power supply is 3-phase AC
220V/AC380. Confirm the motor running direction after power-on. The dust that is cut will fall into the dust concentration,Users can collect and do centralized processing.

330*330mm Inline PCB Router Machine / Pcb Depaneling Router With Germany KAVO Spindle

There is no better way to depanel a printed circuit board than with the SMTfly PCB Router. This PCB depaneler is the answer for hassle-free PCB depaneling through the employment of a router bit that minimizes stress on components. The high speed spindle included in the machine speeds up cutting and maintains precision, while also allowing for flexible panel designs with various cutting patterns. Our PCB depaneler will also cut down on bit replacement with our router bit depth adjustment system, which automatically shifts up to 5 depth levels. The PCB router bit maximum cutting speed is 50mm per second, while the traveling speed is a maximum of 800mm per second.

Easy Operation

Easy to operate, the image processing software of the PCB router makes it simple to program cutting paths with point-and-click technology, whereas it also automatically compensates for alignment with a CCD camera. With the simple touch of an external button PCB depaneling can be started promptly for easy operation, and through the easy to use pre-programming mode, the operation of the machinery is made even more undemanding. The PCB depaneler is also very low maintenance, as the machine is designed for easy access and repairs. Frame structure and the spindle motor operate on an X, Y and Z axis.

Cost Effective

With the variety of benefits that our depaneling systems offer, and the ease in which the machinery can be operated, the price is undeniably practical. Not only are depaneling needs taken care of with efficiency and simplicity, but the low cost will save money and time.

330*330mm Inline PCB Router Machine / Pcb Depaneling Router With Germany KAVO Spindle Feature:
The machine series is mainly an on-line sub-board equipment, which uses a milling cutter to run at a high speed.
Pre-edit path trajectories are segmented to avoid manual breaks, V-CUT or PUSH cutting, and increase production
Product quality, reduce scrap rate, this machine uses human-machine interface WIN7 operating system, and is equipped with high-pixel CCD vision
System, teaching production and editing to modify the cutting path is very fast, can be single-step and overall modification, deletion, addition
Program track. This model adopts follow-up dust removal and double gripping at the same time, which improves the dust removal ability and grasping and releasing.
Board efficiency.
(1) Vision System
1.Mark positioning correction
Mark positioning correction function is based on computer image processing, which is performed on the PCB placed on the processing table.
Positioning correction to achieve higher cutting accuracy, and for the multi-panel PCBA, only one piece is made
PCBA cutting program and Mark reference position, other PCBA can be corrected according to the teaching board after Mark correction
Cutting to improve cutting accuracy;
2 Image zoom assist teaching
When the image is reduced, the field of view is increased, which is beneficial for program editing to quickly find a point. When the image is enlarged, the field of view is reduced.
Conducive to precise alignment.
3 Edge positioning cutting function (optional)
The edge-cutting is performed by using the CCD to first position the cutting position and find the precise cutting edge.
The lower cutting point greatly reduces the degree of unevenness of the edge of the product during cutting and improves the cutting precision.
(2)Tool Monitoring System
1.Tool segmentation
For the PCBA thickness, the tool can be set to use the segment length and the tool single segment cutting distance, that is, the same
The milling cutter can be used in several stages. After cutting a certain distance, another section is used to improve the cutting efficiency and reduce the cutting efficiency.
Use less consumables and make full use of the tools;
2.Broken knife detection
The equipment is equipped with a broken knife slide detection sensing device to cut off the tool during the machining process, the tool slips, etc.
Abnormal conditions are monitored, and the detection frequency can be set as needed to protect PCBA from tools
Abnormal and damaged, can also prompt the operator equipment abnormalities.
3.Automatic tool change function
Countertop device 1~8 tool change slots, automatic tool change can be performed when the tool is abnormal, which improves production efficiency and reduces
Stop time.
(3) Double gripping at the same time
The Carry module is equipped with two grippers, Z1 and Z2, which can be taken while removing the finished daughter board.
The main board of the front-end area to be processed also puts down the board to be processed when the processed sub-board is lowered.
(4) Track memory / auto-width adjustment
This model can automatically record the track width according to the type of machine technology. It can be adjusted automatically when this model is turned on.
Front and rear track width.
(5)Link copy
For array-style board PCBA, sub-board can be used under the premise of making a sub-board program
The sequence is copied out of the matrix array program, that is, the entire slab is processed to cut the trajectory, which greatly reduces the program editing time.
High line change efficiency.
