Cnc Pcb Router Machine Depaneling / Pcb Depanelizer Machine SMTfly-F03

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

Cnc Pcb Router Machine Depaneling / Pcb Depanelizer Machine SMTfly-F03

China Cnc Pcb Router Machine Depaneling / Pcb Depanelizer Machine SMTfly-F03 supplier
Cnc Pcb Router Machine Depaneling / Pcb Depanelizer Machine SMTfly-F03 supplier Cnc Pcb Router Machine Depaneling / Pcb Depanelizer Machine SMTfly-F03 supplier

Large Image :  Cnc Pcb Router Machine Depaneling / Pcb Depanelizer Machine SMTfly-F03

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F03

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Detailed Product Description
Max PCB Size: 350*350mm PCB Thickness: 0.4-6mm
Transmission Height: 900±50mm Cooling Type: Air Compression
ESD Monitoring: Yes Color: White
High Light:

pcb cnc router machine

,

pcb depanelizer machine

PCB Depaneling Router Machine Depaneling | PCB Depaneling Machine | PCB Depanelizer,

SMTfly-F03​ Specification:



Model

SMTfly-F03

Machine Size

1000*1200*1533mm

Weight

Approx 1900kgs

Max PCB Size

350*350mm

PCB Thickness

0.4-6mm

Transmission height

900±50mm

Transmission direction

Left -> Right

Transmission speed

1500mm/s(max)/adjustable

Feeding plate type

Section-type transportation guide rail

Rail width adjustment

Automatic

Communication signal of upper and lower computers

SMEMA

PCB Positioning

Upper and lower guide rail clamping

Picking system

360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most

Cutting spindl/speed

Germany KAVO, 60,000rpm/min

Cooling type

Air compression

ESD monitoring

Yes

Automatic tool change

Yes

Cutting stress feedback

Yes

Break blade check

Yes

Cutting speed

1-200mm/s

Cutting accuracy

±0.5mm

Repeat positioning accuracy

±0.01mm

Coordinate moving speed

1000mm/s

Out plate type

ESD belt transportation/batch panel forwarding unit

Waste collection type

Out off the track

Procedure programming

GERBER drawing import/Editing program through visual system

Air supply

5-8kg/cm2

Power supply

AC380V±5%, 50/60Hz, 3KW



PCB Depaneling Router Machine Depaneling | PCB Depaneling Machine | PCB Depanelizer Features:



1. Automatic tool change;

2. ESD monitoring;

3. Cutting stress feedback;

4. Automatic production mode;
5. Linkage between Spec statistic function and customer’s management system-ERP;

6. Can be equipped with explosion-proof function of vacuum cleaner.



PCB Depaneling Router Machine Depaneling | PCB Depaneling Machine | PCB Depanelizer:



Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.



PCB Depaneling Router Machine - Printed Circuit Board Routing Machine,SMTfly-F03

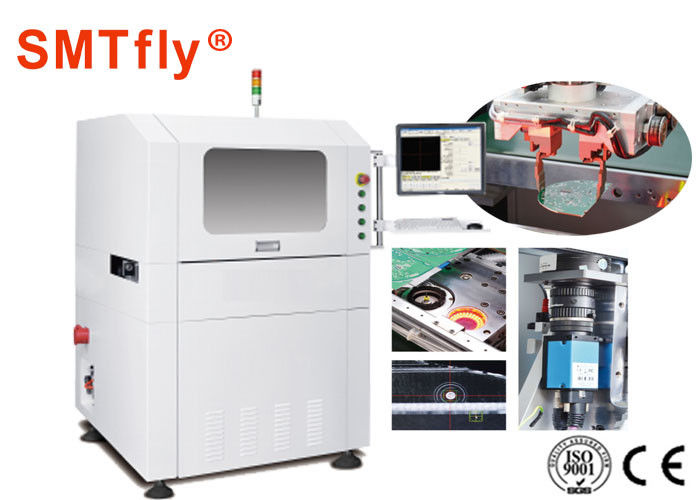

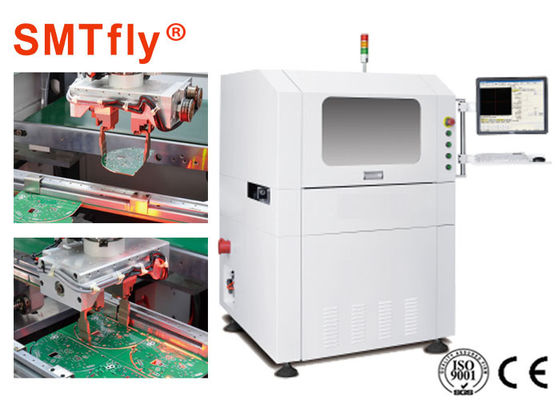

An on-line PCB which is specially used to cut PCBA components(panel) into separate parts, featuring rail-mounted structure without jig cutting. It can be put into production immediately. Featuring ESD static monitoring, cutting stress feedback, and automatic tool changing, it can reach a top speed of 60000 rotates. The control system developed on the basis of our RM system can ensure customer’s rapid and accurate programming.
