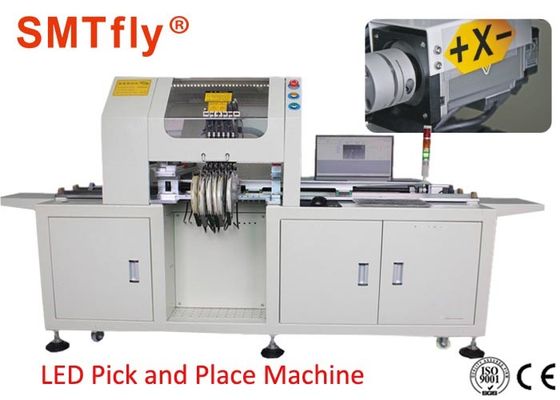

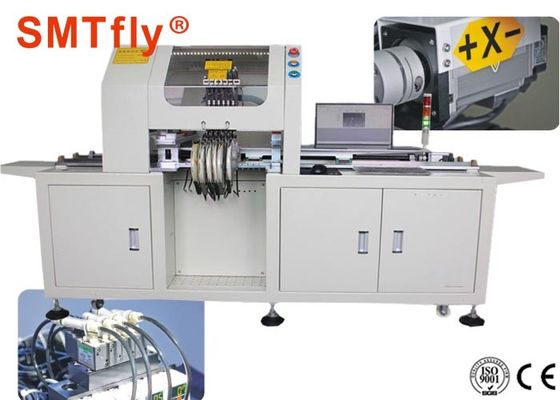

Automatic PCB Pick And Place Machine 1.2Kw Power Supply For LED Placement Assembly

Automatic PCB Pick and Place Machine for LED Placement Assembly SMTfly-6H Technical parameter:

Automatic PCB Pick and Place Machine for LED Placement Assembly Features:

• The platform transmission uses the imported linear guide rail and lead screw in combination with the Japan original Panasonic servo drive ensuring the high-speed stationarity and control precision of the platform.
• The transmission of the X and Y shafts uses the imported high-precision ground lead screws and linear guide rails in combination with the Japan Panasonic servo drive ensuring the high precision and high speed of mounting.
• 4 sets of high-speed mounting heads work simultaneously. The sucking heads use high-precision durable spline shafts.
• Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
• Multi Feeder optional, can meet different kinds of LED mounting.
• Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
• Software adopts data system, and store different types of PCB for convenient adjustment, just need to programming one time for new products to use forever.
• Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
• LED Pick & Place Machine use imported vacuum detection system, it can check the suction accurately to prevent material leakage and throwing effectively.
• Internal negative pressure system: low noise, long service life and vacuum pressure constant.
• Standard setting:1 PC,6 mounting heads,18 nozzles.
• Optinal :8mm,12mm,16mm 24mm automatic feeder, different nozzles, industrial pump, air compressor .

Automatic PCB Pick and Place Machine for LED Placement Assembly Description:

LED pick and place machine improves the precision and efficiency of mount, professional for electronic factory,LED surface mount manufactory.LED Pick and Place Machine is stable and easy to operate.

The uses the same robust, Windows-based software as all other series machines. Customer feedback over the past ten years has created a very easy to use, stable and reliable system.

Program via CAD import and conversion, teaching or direct entry.

Component library covers all common component package types and sizes, including resistors, capacitors, diodes, SOTs, PLCCs, QFPs, SOJs, SOPs, etc.

Component library data links to Smart Feeder software for easy feeder setup and inventory control.

When optional dispensing head is installed, dispensing patterns and parameters can be defined and assigned to specific components in the component library.

Fiducial mark search routines identify and correct for PCB offset or misalignment.

Optimization tools analyze placement data and component mix to provide recommended feeder arrangement that minimizes head travel and tool changes, allowing for fastest production speeds.

Network adapter and remote diagnostic software allow for fast trouble-shooting by SMTfly techs.
