8mm Feeder SMT PCB Pick And Place Machine SMTfly-1200 With LCD Display

China 8mm Feeder SMT PCB Pick And Place Machine SMTfly-1200 With LCD Display supplier
8mm Feeder SMT PCB Pick And Place Machine SMTfly-1200 With LCD Display supplier 8mm Feeder SMT PCB Pick And Place Machine SMTfly-1200 With LCD Display supplier

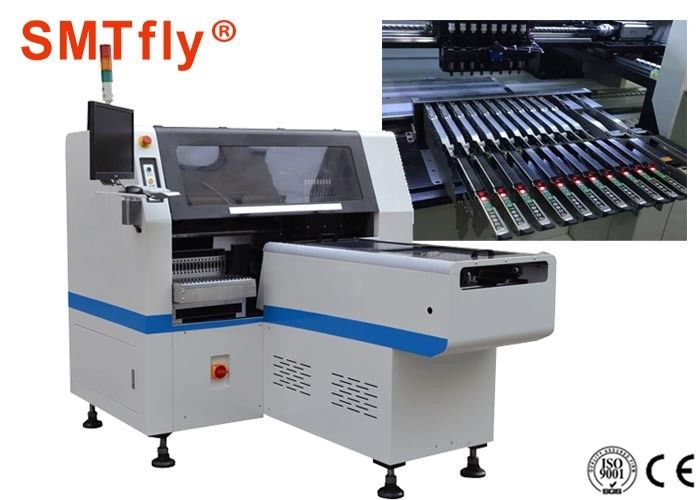

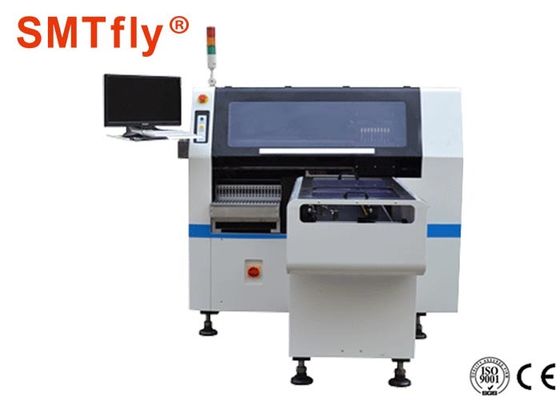

Large Image :  8mm Feeder SMT PCB Pick And Place Machine SMTfly-1200 With LCD Display

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15-30 working days
Supply Ability: 30Sets/Month
Detailed Product Description
PCB Size: Max:1200*350mm, Min:50*50mm PCB Thickness: 0.5-3mm
Display: LCD Mounting Precision: ±0.02mm
Mounting Height: 13±2mm Air Force: 0.5MPa
Power: 220V, 50Hz Air Consumption: <100L/min
High Light:

smt placement equipment

,

pcb component mounting machine



8mm Feeder 500mm/Sec Speed SMT Pick and Place Machine with LCD Display SMTfly-1200 Specification:



Model SMTfly-1200
Machine size 2520×1550*1440mm
Weight 1800KGS
PCB size Max:1200*350mm, Min:50*50mm
PCB thickness 0.5-3mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and separate placing or separated picking and separated placing
Display LCD
Input device Keyboard, mouse
Number of camera 2 sets
Mounting precision ±0.02mm
Mounting height 13±2mm
Mounting Speed 30000CPH
Components LED, capacitors, resistors, shaped components, ect(Max 10mm, Min:0402)
Component distance 0.2mm
Conveyor transmission Max length:1200mm
Transmission speed >500mm/sec
Transmission direction Single(leftàright or right à left)
Transmission mode Online drive
Air consumption <100L/min
X, Y axies driving Servo motor
Number of feeders 1*20 pcs(8mm feeder)
Number of nozzles Single module, total 9 pcs)
Feeder type Electronic feeder
Power 220V, 50Hz
Power consumption 4KW
Air force 0.5Mpa
Operating environment 23±3℃



8mm Feeder 500mm/Sec Speed SMT Pick and Place Machine with LCD Display Features:



  • Single module multi-function chip mounting;
  • Mounting: LED, capacitors, resistors, IC, Shaped components, ect;
  • Electronic feeder;
  • Vision for the flight identification, MARK correction;
  • Non-stop refueling capabilities;
  • Auto-optimization feature after coordinates generated;
  • Produce 2 different items at the same time.



8mm Feeder 500mm/Sec Speed SMT Pick and Place Machine with LCD Display SMTfly-1200​ Application:



1,Suitable for 0.6, 0.9, 1.2 m hard light board disposable mounting, 0.5, 1 m LED soft light with mounting

2,The placement head is divided into two groups, each group of 15 nozzles, A, B materials for cross-mounting, single-disc material can be single, and the same material is always attached to the same light bar.
