Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm

China Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm supplier
Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm supplier Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm supplier Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm supplier

Large Image :  Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-BL250

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Plywood case
Delivery Time: 7-15 working days
Supply Ability: 100Sets
Contact Now
Detailed Product Description
PCB Loading Time: 6s Magazine Size (L×W×H): 355×320×563mm
PCB Thickness: Min 0.6mm Power Supply: 100-230V AC (customized)
Weight: 100kg Color: White



White Customize Fully Automated SMT Loader-PCB Loader Product Instruction:



  • Stable and reliable integrated control system;
  • Easy to operate touch LED buttons or touch screen control interface;
  • The pneumatic clamps of top and bottom three point provided for the magazine alignment;
  • Electric pushing board design can ensure the PCB is unbroken;
  • Machine always fault monitoring;
  • The dual track design is small footprint;
  • Solid and stable design;
  • SMEMA port is compatible.

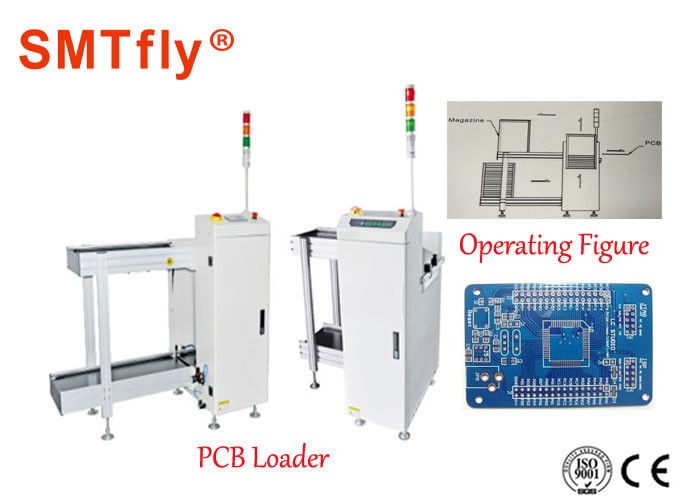

Sample for PCB Loader-Vacuum Loader for Aluminum PCB PWB:



Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mmFully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm



White Customize Fully Automated SMT Loader-PCB Loader Technical Parameter:



Function

This equipment is used for the operation of PCB loading in the line

PCB loading time

Approx 6 seconds

Magazine change-over time

Approx 30 seconds

Power supply

100-230V AC (customized), single phase, MAX 300V/A

Air pressure

4-6 bar, MAX 10L/minute

Transport height

900±20mm (or customized)

Transport direction

Left to right / right to left(optional)

PCB thickness

Min 0.6mm

Magazine number

transport up: 1pcs, transport down: 1pcs,(or customized)

Step pitches select

1-4(10mm step pitches)



Fully Automated SMT Loader-PCB Loader Specification:



Model No

SMTfly-BL250

PCB size (L×W)~(L×W)

(50x50)~(350x250)

Machine size (L×W×H)

1370×320×1200

Magazine size (L×W×H)

355×320×563

weight

110kg

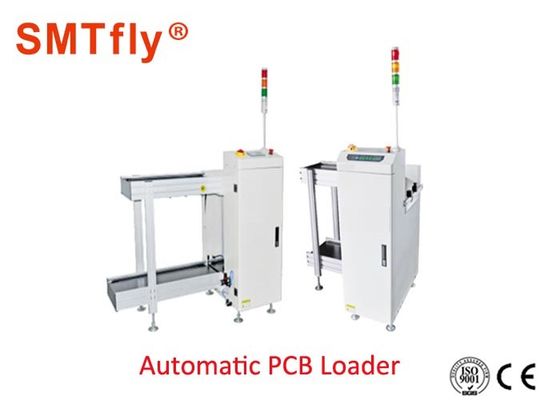

Automatic PCB Loader Application:



  This unit used to send PCBs out from magazine to SMT production line.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the down-stream machine, Connect with AMT and AI productions line,safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy,automatic counting,fault alram functions,it is required for a full range of automatic equipment.



Related PCB Loader and Unloder Mahcine:



Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm

About us:



   SMTfly is a leader in PCB Separator, hot bar soldering machine & other SMT equipments, it provides high-end PCB manufacturing machines for industrial factories in this word.
SMTfly was found in September of 2004, it is a professional technology equipment manufacturer with R&D , production , sales and service in one line.
SMTfly head office is located at Ganghuaxing industrial park , Fuyong Town, Shenzhen.
Adhere to the "customer as the center" , meet the needs of the electronic industry customers by technological innovation & management optimization.
SMTfly help you soar!



Our Service:



1. We supply a wide range of products and provide one-stop service for Electronic Assembly Industry.

2. We can also customize the products to fulfill different requirements.

3. We are a leading manufacturer of ESD Products, Cleanroom Products, Tools & Instruments for

Electronic Assembly Industry.

4. We keep a lot of stock for regular products and we can support small orders. Usually, our lead time

is just 3 days.

5. Credibility: We are the 6th year Alibaba Gold Supplier. Our customers are located all over the world.

6. Gratitude: We cherish and feel grateful to every customer for the business you give us. We are your

reliable partner and will return to you with good products and good support.

7. Professional: We have been in this business for more than 10 years. We have a strong professional

team with various experiences.

8. We keep doing new product development. Our goal is to enhance our competitive capacity constantly.

9. Promise: we are always ready to shoulder the responsibility if any loss caused to our customer due

to our mistakes

10. Price: we always offer competitive prices and help our customers to cost down.



Customers Visit Picture:



Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm



Fully Automated SMT Smt Magazine Loader , White PCB Destacker 350*250mm
