110*150mm LED PCB Hot Bar Soldering Machine With CE/ISO Approved SMTfly-PP1S

China 110*150mm LED PCB Hot Bar Soldering Machine With CE/ISO Approved SMTfly-PP1S supplier
110*150mm LED PCB Hot Bar Soldering Machine With CE/ISO Approved SMTfly-PP1S supplier 110*150mm LED PCB Hot Bar Soldering Machine With CE/ISO Approved SMTfly-PP1S supplier

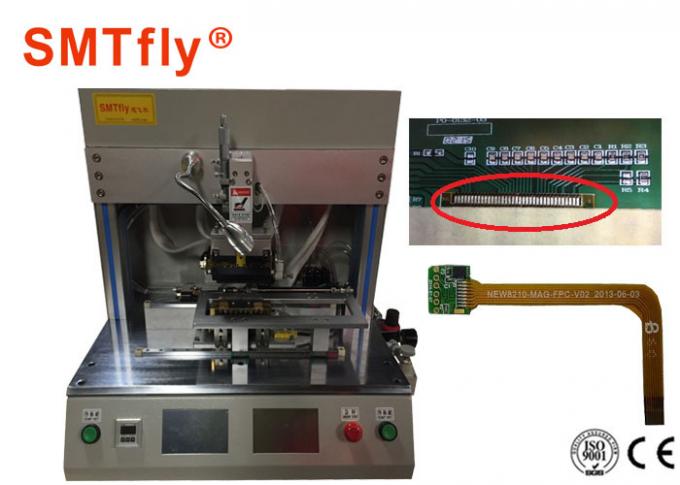

Large Image :  110*150mm LED PCB Hot Bar Soldering Machine With CE/ISO Approved SMTfly-PP1S

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-PP1S

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 60Sets/Month
Detailed Product Description
Time Of Pressing: 0-99s Tolerance Of Temp: +2°
Work Air Pressure: 0.5-0.7MPA Working Area: 110mm X 150mm
Fixture: 1Set Color: White
High Light:

hot bar soldering equipment

,

pulse heat bonding machine



110*150mm LED,PCB Hotbar Soldering Machine/Bonding Equiqment with CE/ISO,SMTfly-PP1S

Specification:



Size 500mm X 750mm X 910mm
Work Air Pressure 0.5-0.7MPA
Working Area 110mm X 150mm
Temperature setup 0-400℃
Tolerance of Temp +2°
Time of pressing 0-99s
Tolerance of Pressing 0.05MPA



110*150mm LED,PCB Hotbar Soldering Machine/Bonding Equiqment with CE/ISO Feature:

  • Closed Loop PID temperature control with visible LED display;
  • LCD display programmable pressure switch for precise force control;
  • Each heating cycle is triggered by a real time pressure sensor;
  • Floating thermode ensures consistent pressure and heat transfer
  • between the thermode head and the parts to be joined;
  • Silicon rubber can be fitted in bonding Heat Seal Connectors
  • between LCD and PCB;
  • Standard workpiece holder is mounted on a linear guideway and
  • designed to allow for easy changeover and repeatable operation;
  • Parts registration is adjusted by micrometer and secured by vacuum
  • Lock;
  • Optional CCD system for fine pitch component.

110*150mm LED,PCB Hotbar Soldering Machine/Bonding Equiqment with CE/ISO Application:



Apply to the hot-pressing/welding/soldering for high density HSC to LCD or PCB etc

use constant temperature to hot pressing



1.mainly apply to the hot-pressing/welding/soldering for high density HSC to LCD or PCB etc,

2.use constant temperature to hot pressing.



Related PCB FPC FFC Hotbar Bonding Machine-Hot Bar Soldering Mahcine:



110*150mm LED PCB Hot Bar Soldering Machine With CE/ISO Approved SMTfly-PP1S
