Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB

China Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB supplier
Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB supplier Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB supplier

Large Image :  Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-2A2P

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 60Sets/Month
Detailed Product Description
Welding Precision: Pitch 0.2mm Welding Pressure: 4~50N
Heating Rate: 250℃/s Pin Distance Range: >0.2mm
Positioning Fixture: 2 Heating Method: Pulse Heating
Welding Time: 1-99.9S Color: White
High Light:

hot bar soldering equipment

,

pulse heat bonding machine

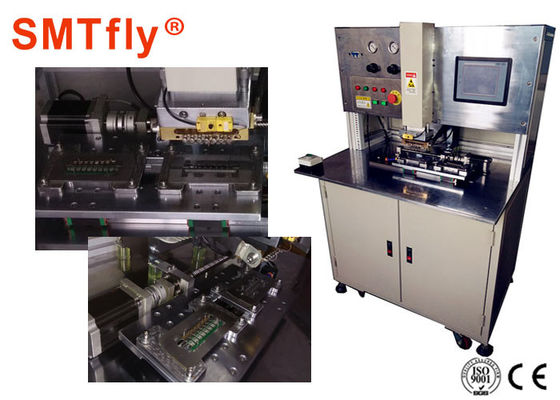

Hot Bar Bonding Machine,Heat Welding Machine for Soldering FFC FPC to PCB​ SMTfly-2A2P Simple Introduction:



This device is designed for double - deck working mode of double welding head. The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special. The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.



Hot Bar Bonding Machine,Heat Welding Machine for Soldering FFC FPC to PCB​ Feature:



1. Customized based on the connector;

2. Double jig welding;

3. Double- desk working mode;

4. Can achieve ultra-fine pitch welding;

5. Applicable to welding the cable and connection of communicating machine.



Hot Bar Bonding Machine,Heat Welding Machine for Soldering FFC FPC to PCBSpecification:



Subject Parameters
Machine Size (L)850×(W)650×(H)1320mm
Working Size Max 150x150mm
Weight Approx 98KG
Working Air Pressure 0.5~0.80 Mpa
Power Supply AC220V±10%50HZ.2000W
Lifting Temperature S Five section
Work Environment 10~60℃,40%~95%
Welding Pressure 4~50N
Welding Pressure Error ±1N
Temperature Setting RT∽500℃,±2℃
Heating Rate 250℃/s
Welding Time 1-99.9S
Welding Precision Pitch 0.2mm
Welding Head Size(M metal) Max 50*3mm
Welding Head Size(T metal) Max 100*3mm
Welding Head Flatness ±0.02mm
Pin Distance Range >0.2mm
Alignment Mode Artificial Alignment
Positioning Fixture 2
Way of Discharge Artificial pick and Place
Start Mode Pressed by Hands
Heating Method Pulse heating, the rise time is 1 ~ 2S
Work Stage Left and Right Automatic Push and Pull
Platform Control Precision Motor Control,Error <0.02mm



Hot Bar Bonding Machine,Heat Welding Machine for Soldering FFC FPC to PCB​ Function Module:

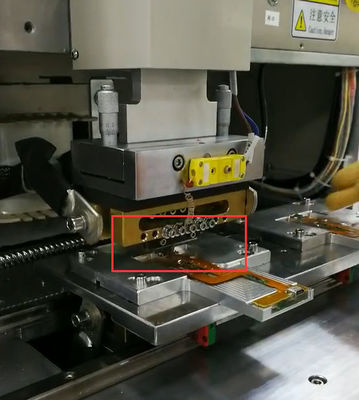

【Double welding head design】

Applicable to double-sided welding products







【Left and right platform design】

In the production, It weld with left and right cycle , saving time and improving efficiency









【The upper and lower welding heads are driven by the motor】

Up and down position is precise, the same accuracy when it repeats







【The left and right platform is driven by motor】

Left and right position is precise, the same accuracy when it repeats









【Touch screen programming】

Easy to understand and program, we can enter data location directly



          Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB
          Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB
          Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB
          Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB



Hot Bar Bonding Machine,Heat Welding Machine for Soldering FFC FPC to PCB​ Related Products Catalogue



Desktop terminal welding machine SMTfly-PP5A Double-sided welding automatic tin feed machine Terminal testing and shell filling machine (terminal welding supporting equipment)
Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB Pitch 0.2mm Hot Bar Soldering Machine For Soldering FFC FPC To PCB



If you need to buy the machine,please contact us,we're dealing with this machine for 14 years,so we're professional.
