PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC

China PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC supplier
PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC supplier PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC supplier

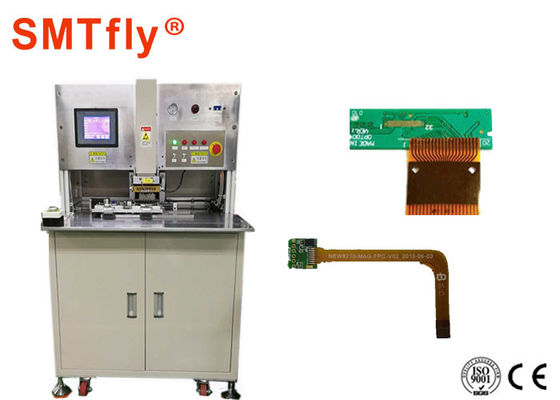

Large Image :  PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-2A2P

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 60Sets/Month
Contact Now
Detailed Product Description
Welding Precision: Pitch 0.2mm Power Supply: AC220V
Welding Pressure: 4~50N Heating Rate: 250℃/s
Pin Distance Range: >0.2mm Positioning Fixture: 2
Heating Method: Pulse Heating Welding Time: 1-99.9S
Color: White Warranty: 1Year
High Light:

hot bar soldering equipment

,

pulse heat bonding machine

PCB Hotbar Soldering Machine for 150*150mm FPC to PCB-PCB Soldering System​ SMTfly-2A2P

Feature:



1. Customized based on the connector;

2. Double jig welding;

3. Double- desk working mode;

4. Can achieve ultra-fine pitch welding;

5. Applicable to welding the cable and connection of communicating machine.



PCB Hotbar Soldering Machine for 150*150mm FPC to PCB-PCB Soldering System Specification:



Subject Parameters
Machine Size (L)850×(W)650×(H)1320mm
Working Size Max 150x150mm
Weight Approx 98KG
Working Air Pressure 0.5~0.80 Mpa
Power Supply AC220V±10%50HZ.2000W
Lifting Temperature S Five section
Work Environment 10~60℃,40%~95%
Welding Pressure 4~50N
Welding Pressure Error ±1N
Temperature Setting RT∽500℃,±2℃
Heating Rate 250℃/s
Welding Time 1-99.9S
Welding Precision Pitch 0.2mm
Welding Head Size(M metal) Max 50*3mm
Welding Head Size(T metal) Max 100*3mm
Welding Head Flatness ±0.02mm
Pin Distance Range >0.2mm
Alignment Mode Artificial Alignment
Positioning Fixture 2
Way of Discharge Artificial pick and Place
Start Mode Pressed by Hands
Heating Method Pulse heating, the rise time is 1 ~ 2S
Work Stage Left and Right Automatic Push and Pull
Platform Control Precision Motor Control,Error <0.02mm



PCB Hotbar Soldering Machine for 150*150mm FPC to PCB-PCB Soldering System Function Module:





【Double welding head design】

Applicable to double-sided welding products







【Left and right platform design】

In the production, It weld with left and right cycle , saving time and improving efficiency









【The upper and lower welding heads are driven by the motor】

Up and down position is precise, the same accuracy when it repeats







【The left and right platform is driven by motor】

Left and right position is precise, the same accuracy when it repeats









【Touch screen programming】

Easy to understand and program, we can enter data location directly

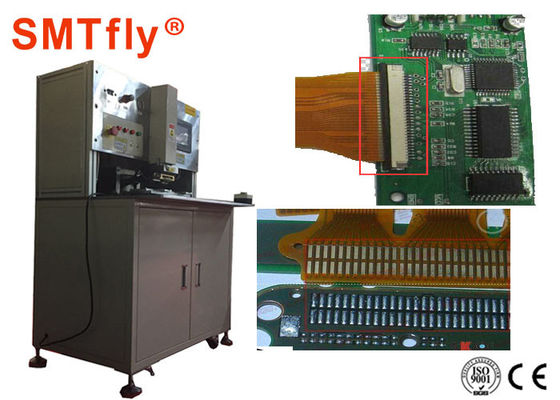

PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC
PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC
PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC
PCB Hot Bar Soldering Equipment AC220V 2 Positioning Fixture For 150 * 150mm FPC



PCB Hotbar Soldering Machine for 150*150mm FPC to PCB-PCB Soldering System Simple introduction:



This device is designed for double - deck working mode of double welding head. The equipment adopts high density metal material, so the lifting temperature is fast and the service life is special. The equipment operation is easy to understand. It is special in welding connector and wire with single side and double sides.
