Detailed Product Description
PCB Thickness: 2 - 8mm Image Processing Speed: 50ms
Positioning Accuracy: <10um Moving Speed: 700mm/s
Air Supply: 4 - 6 Bar Color: White
High Light:

automated optical inspection machine

,

automatic optical inspection equipment



SMT AOI-Automatic Optical Inspection & AOI Inspection Machine,SMTfly-27X Specification:



Category Item Specification
Visual identity system Inspection Multiple algorithms synthetically such as WIDM,Color Image contrast technology,Color extracting technology,similarity two-value handing technology,OCR/OCV and so on


Camera



Distal and high speed color camera,Resolution: 15um(20um,12um,10um for option)
  Lens Industrial telecentric lens
  Lamp-house Rings RGB LED Lamp-house
  Image Processing Speed   250ms
  Inspection Items   Missing,Shift,skewed,tombstone,billboard,overturned,reversed polarity,wrong parts,CPU SOCKET PIN inspection(Pin missing,PIN shift)
  Min Inspection element Distance

01005& 0.3mm pitch



Network NG adaptable,Check and correct PCBA defects at repair station
Control System Computer CPU: IntelI7,Memory:16G Hard disk:1TB
Display output 23 inch LCD widescreen display
Multiple machine control The Operator can control multiple same machines in the control terminal
Others Air supply 4 - 6 bar
Mechanical dimension 115cm(L)*120cm(W)*159cm(H)
Weight 680Kg
Power supply AC 220V10%,single phase 5A 50/60Hz,power consumption 1200W
Working environment

Temperature 10-40ºC , humidity 30-80%RH





SMT AOI-Automatic Optical Inspection & AOI Inspection Machine Features:

  • 5Megapixels high speed industrial camera & telecentric lens,with high resolution can applied in high precision mounting quality inspection
  • The world’s first automatic lifting vision module,can deal with complex mixed mounting/plug-in circuit board
  • The camera can automatically identify the bar code on both side of the PCB and make the corresponding information storage,easy to save and trace the product information
  • The 27X designing with its flexible structure,can work as the final quality control station especially in large server or motherboard





SMT AOI-Automatic Optical Inspection & AOI Inspection Machine Description:



SMTfly-27X on the basis of traditional AOI increased the Z axis,can automatically adjust the focus by lifting the vision module,get the most clear image quality.can be used in the inspection of the SMT,wave soldering joint and very high plug-in components.

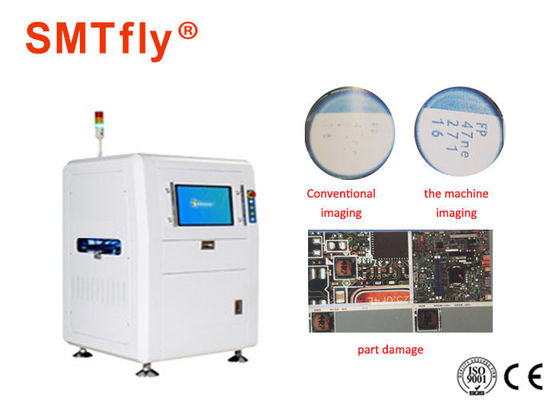

AOI Inspection Machine,SMTfly-27X Test Effect Chart:
