FOV 20*20mm PCB AOI Inspection Machine Work With OK/NG Loader 220V Power Supply

China FOV 20*20mm PCB AOI Inspection Machine Work With OK/NG Loader 220V Power Supply supplier
FOV 20*20mm PCB AOI Inspection Machine Work With OK/NG Loader 220V Power Supply supplier FOV 20*20mm PCB AOI Inspection Machine Work With OK/NG Loader 220V Power Supply supplier

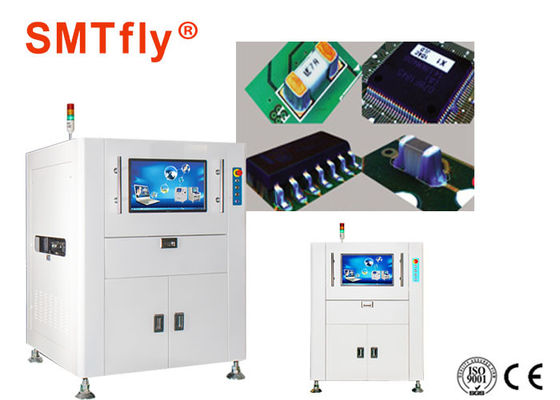

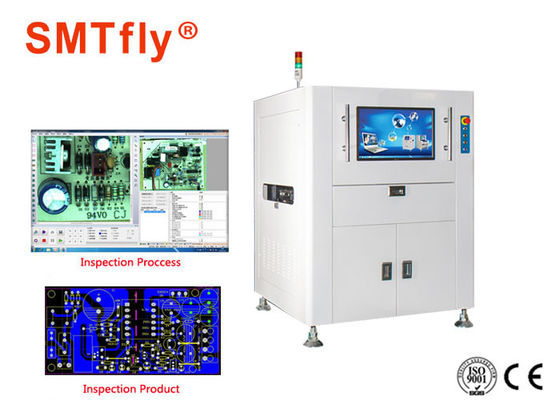

Large Image :  FOV 20*20mm PCB AOI Inspection Machine Work With OK/NG Loader 220V Power Supply

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-B586

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days after payment
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
0201 CHIP: <9ms PCB Warp Tolerance: <2mm
Display: 22inch TFT Camera: CCD
Power Supply: 220V Weight: 580Kg

FOV 20*20mm PCB AOI Test,Automated Optical Inspection Testing Service,SMTfly-B586​ Feature:



Multiple-Function



Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, Check component before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.



FOV 20*20mm PCB AOI Test,Automated Optical Inspection Testing ServiceSpecification:



Category

Item

Specification

Recognition system

Inspection

Using multiple algorithms synthetically such as WIDM Color image contrast technology color extracting technology,similarity,two-value handing technology,OCR/OCV etc.

Camera

Distal and high speed color CCD camera:20um(15um/12um/10um for option)

Lamp-house

Ring tower structure, high intensity RGB flash lamp-house

FOV

Standard FOV:20*20mm,the maximum FOV:40*40mm

Image process

Speed

0201 CHIP

<9ms

Per-image time

<150ms

Inspection Items

Component Defects

Missing , Misaligned ,overflow ,insufficient ,pasting open, stain

Solder Defects

Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged

Inspection items

01005&0.3mm pitch(15um)

Machine system

PCB conveyor

Left to right(Optional, right to left) PCB fixing: bottom-up, PCB warp correction. Automatic PCB loading and unloading, Adjustable clearance, Conforming SMEMA standard. Orbit clearance: 900±20mm

PCB size

50*50mm-510*460mm Can make bigger size according to clients’ demands

PCB thickness

0.3mm-3.0mm

PCB warp tolerance

<2mm

Component clearance

TOP≤25mm,Bottom≤30mm



Machine system

X,Y platform

Driver

AC server, camera moves in the directions of X/Y

Orientation

<10um

Moving Speed

50mm/s

Soft system

Operation system

Microsoft Windows XP professional

Controlling

Recognizing

Characteristics

Set template images real time, count data and error gate value automatically , WIDM ,study ok template, input CAD date, Have the powerful function of feedback the inspect data and template library

Operation

Graphic programming, Chinese English

Quality

10000 COMPONET/PCBA

Network

NG adaptable, check and correct PCBA defects at repair station



Computer

CPU:intel dual-core,Memory:4G,hard disk:500G

Display

22inch TFT

Others

Air supply

4-6bar

Machine Dimensions

104cm×110cm×155cm

Weight

580KG

Power Supply

AC220V,10%,single phase 5A 50/60HZ,power consumption 1000W



FOV 20*20mm PCB AOI Test,Automated Optical Inspection Testing Service,SMTfly-B586:



Simple Interface



  1. Simple software interface accord with daily and effective operation;
  2. The work guide, makes the equipment to maintain consistently;
  3. The safe is comprehensive and nimble;
  4. The Lowest training request;



Option and customized



  1. Portable tracking doors design, easier for maintenance;
  2. With overspecialization it can meet different demands;
  3. The machine can work with OK/NG loader, make the seamless connection of on-line testing,PCB receiving and repairing;
  4. With the application of off-line programming and offline debugging ,m-acing the equipment with best value;
  5. Various algorithms applications and combination, make the application of software is more flexible;
  6. The new algorithm OCR and short test, meet the request of quality ins-software is more flexible;
  7. With high intellectualized control system, it can control the quality and give feedback in the first time;
  8. Fully meet the requirements of lead-free process.
