220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A

China 220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A supplier
220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A supplier 220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A supplier

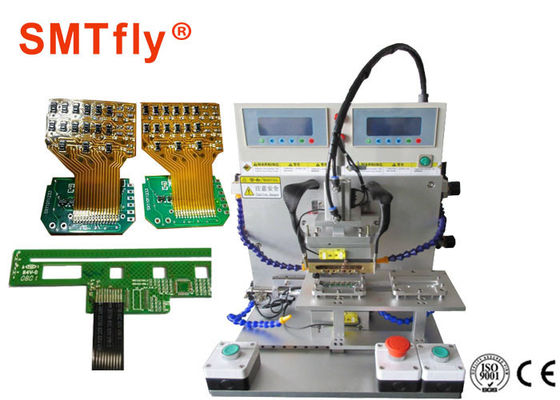

Large Image :  220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-PP3A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 60Sets/Month
Contact Now
Detailed Product Description
Welding Pressure: 04.-30N Weld Flatness: 0.02mm
Welding Pitch: > 0.1mm Maximum Working Area: 120 × 120mm
Heating Settings: Three Sections Color: White

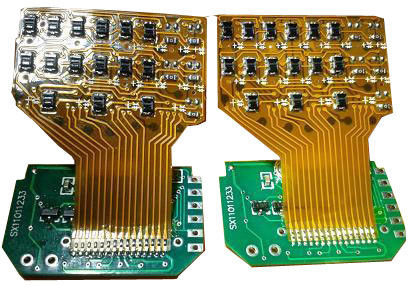

Sample for FPC Hot Bar Soldering Machine for FFC Hot Bonding:



   220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A



FPC Hot Bar Soldering Machine for FFC Hot Bonding Features:



  • Corresponding to different products, heating rate for selection
  • Molybdenum alloy pressure head to ensure that the average temperature, fast heating and service life expertise
  • Thermode particularly horizontal adjustable design, to ensure that the pressure components on average
  • Temperature CNC, clear and precise
  • Equipped with digital pressure gauge, preset pressure range
  • Small size
  • Using precise PID control, phase angle instead of pulse drive
  • Small vibration, low noise, voltage fluctuations
  • Welding head uses molybdenum alloy instead of traditional titanium alloy, rapid heating and cooling, good heat transfer coefficient, wear resistance.



FPC Hot Bar Soldering Machine for FFC Hot Bonding,SMTfly-PP3A technical parameters:



Maximum working area

120 × 120mm

Working pressure

0.45-0.70 Mpa

Power

AC220V + -10% 50HZ, 2VA

Heating settings

three sections

Working environment

10 ~ 60 ℃, 40% ~ 95%

Welding pressure

04.-30N

Temperature setting

RT ~ 500 ℃

Hot pressing time

1 ~ 99.9s

Hot pressing precision

Pitch 0.1mm

Hot head size

According to the product customization

Reference Size

Molybdenum alloy: Max 50 * 3mm/Titanium: Max120 * 8mm

Weld flatness

0.02mm

Welding Pitch

> 0.1mm

Weight

50Kg



Related FPC Hot Bar Soldering Machine for FFC Hot Bonding:



220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A           220V FPC Hot Bar Soldering Machine For 0.1mm FFC Hot Bonding Solution SMTfly-PP3A



FPC Hot Bar Soldering Machine for FFC Hot Bonding Application:



Advantages: ultra-fine pitch welding can be achieved; temperature, pressure digital; welding speed 6-8S (excluding artificial take-off time)

Function: Suitable for all kinds of high density TAB, TCP crimp and FPC, FFC and PCB solder crimp.
