Detailed Product Description
Welding Precision: Pitch 0.2mm Welding Pressure: 4~50N
Heating Rate: 250℃/s Pin Distance Range: >0.2mm
Positioning Fixture: 2 Heating Method: Pulse Heating
Welding Time: 1-99.9S Warranty: 1Year
High Light:

hot bar soldering equipment

,

pulse heat bonding machine

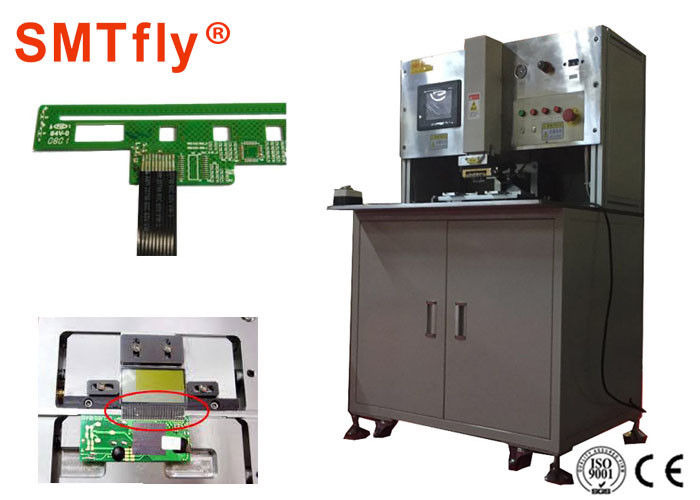

0.2mm Pitch High Pression Iphone X Hot Bar Soldering Machine Type for 0.1s Bonding FPC SMTfly-2A2P Feature:



1. Customized based on the connector;

2. Double jig welding;

3. Double- desk working mode;

4. Can achieve ultra-fine pitch welding;

5. Applicable to welding the cable and connection of communicating machine.

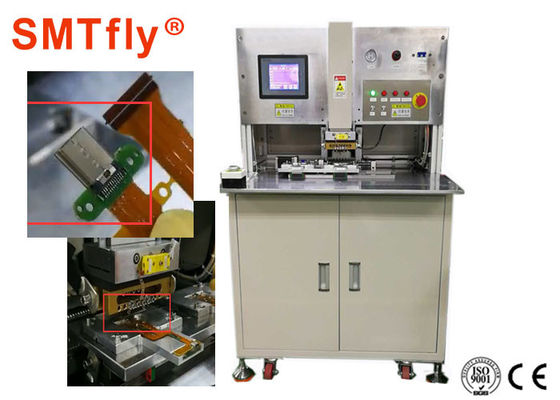

2 Fixtures Hot Bar Soldering Machine With 2 Soldering Head-Pulse Heat Bonding Function module:





【Double welding head design】

Applicable to double-sided welding products







【Left and right platform design】

In the production, It weld with left and right cycle , saving time and improving efficiency









【The upper and lower welding heads are driven by the motor】

Up and down position is precise, the same accuracy when it repeats







【The left and right platform is driven by motor】

Left and right position is precise, the same accuracy when it repeats









【Touch screen programming】

Easy to understand and program, we can enter data location directly



          High Pression Hot Bar Soldering Machine , 0.1s Pulse Heat Bonding Machine
          High Pression Hot Bar Soldering Machine , 0.1s Pulse Heat Bonding Machine
          High Pression Hot Bar Soldering Machine , 0.1s Pulse Heat Bonding Machine
          High Pression Hot Bar Soldering Machine , 0.1s Pulse Heat Bonding Machine



0.2mm Pitch High Pression Iphone X Hot Bar Soldering Machine Type for 0.1s Bonding FPC Specification:



Subject Parameters
Machine Size (L)850×(W)650×(H)1320mm
Working Size Max 150x150mm
Weight Approx 98KG
Working Air Pressure 0.5~0.80 Mpa
Power Supply AC220V±10%50HZ.2000W
Lifting Temperature S Five section
Work Environment 10~60℃,40%~95%
Welding Pressure 4~50N
Welding Pressure Error ±1N
Temperature Setting RT∽500℃,±2℃
Heating Rate 250℃/s
Welding Time 1-99.9S
Welding Precision Pitch 0.2mm
Welding Head Size(M metal) Max 50*3mm
Welding Head Size(T metal) Max 100*3mm
Welding Head Flatness ±0.02mm
Pin Distance Range >0.2mm
Alignment Mode Artificial Alignment
Positioning Fixture 2
Way of Discharge Artificial pick and Place
Start Mode Pressed by Hands
Heating Method Pulse heating, the rise time is 1 ~ 2S
Work Stage Left and Right Automatic Push and Pull
Platform Control Precision Motor Control,Error <0.02mm
