3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

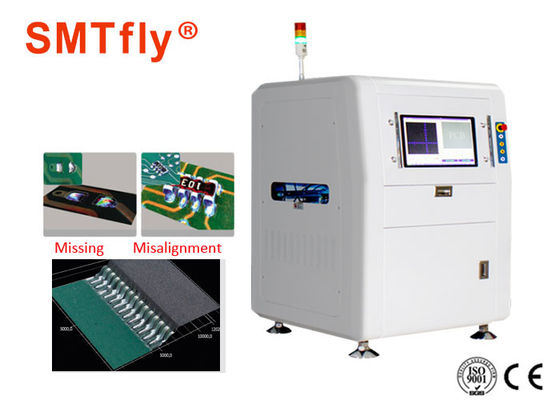

3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586

China 3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586 supplier
3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586 supplier 3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586 supplier

Large Image :  3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-A586

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days after payment
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
PCB Thickness: 0.3-3mm Orientation: <10um
Component Clearance: TOP≤25mm,Bottom≤30mm Use Environment: Temperature 10-40 ℃
Quality: 10000COMPONET/PCBA Air Supply: 4-6bar


PCB Solder Paste AOI Inspection Machine-AOI for Solder Paste Mixer,SMTfly-A586 Specification:


Category

Item

Specification

Recognition system

Inspection

Using multiple algorithms synthetically such as WIDM Color image contrast technology color extracting technology,similarity,two-value handing technology,OCR/OCV etc.

Camera

Distal and high speed color CCD camera:20um(15um/12um/10um for option)

Lamp-house

Ring tower structure, high intensity RGB flash lamp-house

FOV

Standard FOV:20*20mm,the maximum FOV:40*40mm

Image process
Speed

0201 Cgip

<9ms

Per-image time

<150ms

Inspection Items

Component Defects

Missing , Misaligned ,overflow ,insufficient ,pasting open, stain

Solder Defects

Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged

Inspection items

01005&0.3mm pitch()15um

Machine system

PCB conveyor

Substrate fixing method: bottom-up fixed, thimble function can correct large board bending. Automatic access to the board and automatic width adjustment system, in line with SMEMA standards. Track height of 900 ± 20mm

PCB size

50×50mm~400×330mm

PCB thickness

0.3-3mm

PCB warp tolerance

2 mm (Fixture-assisted correction of deformation)

Component clearance

TOP≤25mm,Bottom≤30mm


Machine system

X,Y platform

Driver

AC server, camera moves in the directions of X/Y

Orientation

<10um

Moving Speed

50mm/s

Soft system

Operation system

Microsoft Windows XP professional

Controlling
Recognizing

Characteristics

Set template images real time, count data and error gate value automatically , WIDM ,study ok template, input CAD date, Have the powerful function of feedback the inspect data and template library

Operation

Graphic programming, Chinese English

Quality

10000 COMPONET/PCBA

Network

NG adaptable, check and correct PCBA defects at repair station



Computer

CPU:intel dual-core,Memory:4G,harddisk:500G

Display

19-inch LCD widescreen display / 19inch TFT

Others

Air supply

4-6bar

Machine Dimensions

950*1000*1580mm

Weight

580KG

Power Supply

AC220V,10%,single phase 5A 50/60HZ,power consumption 1000W

Use environment

Temperature 10-40 ℃, humidity 30-80% RH


Online PCB Solder Paste AOI Inspection Machine-AOI for Solder Paste Mixer Solution:

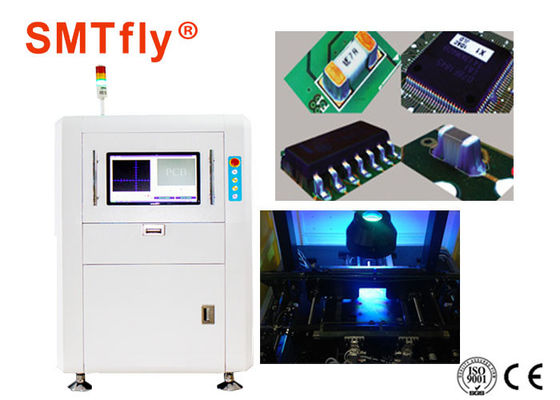

           3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586



PCB Solder Paste AOI Inspection Machine-AOI for Solder Paste Mixer Feature:

Multiple-Function

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, Check component before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering

Simple Interface

Simple software interface accord with daily and effective operation
The work guide, makes the equipment to maintain consistently
The safe is comprehensive and nimble
The Lowest training request

Option and customized

Portable tracking doors design, easier for maintenance
With overspecialization it can meet different demands
The machine can work with OK/NG loader, make the seamless connection of on-line testing,PCB receiving and repairing
With the application of off-line programming and offline debugging ,m-acing the equipment with best value
Various algorithms applications and combination, make the application of software is more flexible
The new algorithm OCR and short test, meet the request of quality ins-software is more flexible
With high intellectualized control system, it can control the quality and give feedback in the first time
Fully meet the requirements of lead-free process



PCB Solder Paste AOI Inspection Machine-AOI for Solder Paste Mixer



Easy to operate and multiple-function AOI



3mm PCB Solder Paste AOI Inspection Machine For Solder Paste Mixer SMTfly-A586



Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality,

check component defects before reflow soldering, check PCBA quality after reflow soldering,

and DIP after wave soldering
