700mm/S Speed Automated Optical Inspection Systems , SMT Inspection Machine Horizontal

China 700mm/S Speed Automated Optical Inspection Systems , SMT Inspection Machine Horizontal supplier
700mm/S Speed Automated Optical Inspection Systems , SMT Inspection Machine Horizontal supplier 700mm/S Speed Automated Optical Inspection Systems , SMT Inspection Machine Horizontal supplier

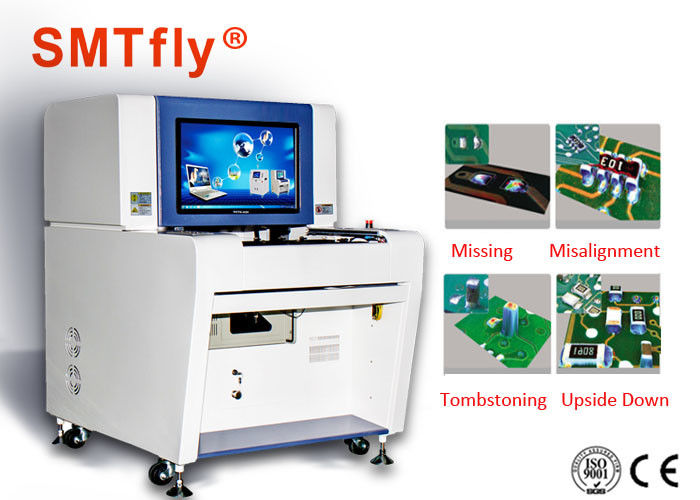

Large Image :  700mm/S Speed Automated Optical Inspection Systems , SMT Inspection Machine Horizontal

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-410

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days after payment
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
Camera: Color CCD Camera:12/15/20um Per-image Time: <170ms
PCB Thickness: 0.5-2.5mm Driver: AC Server
Orientation: <15um Moving Speed: 700mm/s


700mm/s Moving Speed AOI Technology for PCB Assembly AOI Inspection Equipment,SMTfly-410 Easy to operate and multi-function AOI

Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, check component defects before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.


700mm/s Moving Speed AOI Technology for PCB Assembly AOI Inspection Equipment Feature:


Novel structure and tight security;
Simple programming and debug mode, easy to operate;
Automatically identify PCB, and automatically identify if the board is put on 180° reverse side;
Simultaneous inspection for multi-boards and inspection shift of 2 sides of board (components top and bottom) improves the inspection efficiency;
Smart camera barcodes identify system. (The camera can identify single-dimensional barcode and data matrix barcode);
Professional SPC analysis system, monitoring and analysis the quality of products in real time;
Multiple machine monitoring system, can know well of all production lines’ condition;
Remote programming and debugging make the software is more easy and convent.


700mm/s Moving Speed AOI Technology for PCB Assembly AOI Inspection Equipment Specification:



CategoryItemSpecification
Recognition SystemInspectionUsing multiple algorithms synthetically such as WIDM,Color image contrast technology,Color extracting technology similarity,two-value handing technology,OCR/OCV act
CameraColor CCD camera:12/15/20um
Lamp-houseRing RGB LED flash lamp-house
Image Processing Speed0201 Chip<10ms
Per-image time<170ms
Inspection ItemPaste Printing DefectsMisaligned,Overflow,insufficient,pasting open, stain
Component DirectsMissing,shift,skewed,tombstone,billboard,overturned,reversed polar,wrong,damaged
Solder DefectsOverflow,insufficient,short solder, stain
Anti-Static MeasuresAnti-static electric outlet,anti static wreath

Machine
system

PCB size25*25mm-330*480mm(Customize)
PCB Thickness0.5-2.5mm
PCB Warp Tolerance<2mm
Component ClearanceTOP<28MM,BOT<75MM
Minimum Space Parts0201 chip (15um)
X,Y platformDriverAC server
Orientation<15um
Moving Speed700mm/s



700mm/s Moving Speed AOI Technology for PCB Assembly AOI Inspection Equipment:


Professional SPC statistical analysis system
Professional SPC analysis report, macro-control of the entire production process to promote the improvement of the bad line to reduce the incidence of adverse and improve production efficiency.

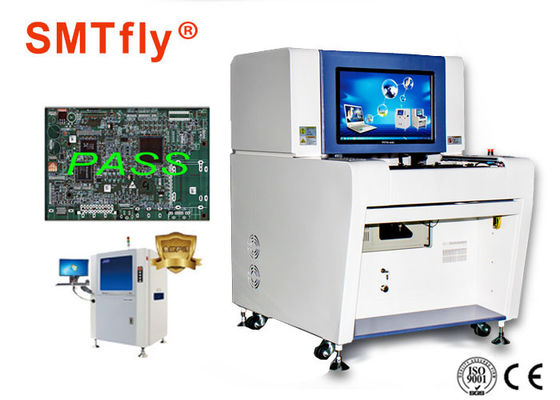

700mm/S Speed Automated Optical Inspection Systems , SMT Inspection Machine Horizontal


Programming the SMTfly-410 AOI system is fast and intuitive. Operators typically take less than 30 minutes to create a complete inspection program including solder inspection. The SMTfly-410 utilizes a standard package library to simplify training and ensure program portability across manufacturing lines.

Advanced Fusion Lighting and newly available 9 megapixel image processing technology integrates several techniques, including color inspection, normalized correlation and rule-based algorithms, to provide complete inspection coverage with an extremely low false failure rate.

Configurable for all line positions, the SMTfly-410 automated optical inspection system is equally effective for paste, pre / post-reflow and final assembly inspection. Off-line programming maximizes machine utilization and real-time SPC monitoring provides a valuable yield enhancement solution.
