Pneumatically Driven V Cut PCB Depaneling Machine SMT Router Long Life Span SMTfly-480

China Pneumatically Driven V Cut PCB Depaneling Machine SMT Router Long Life Span SMTfly-480 supplier
Pneumatically Driven V Cut PCB Depaneling Machine SMT Router Long Life Span SMTfly-480 supplier Pneumatically Driven V Cut PCB Depaneling Machine SMT Router Long Life Span SMTfly-480 supplier

Large Image :  Pneumatically Driven V Cut PCB Depaneling Machine SMT Router Long Life Span SMTfly-480

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-480

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 7-15 Working Days after Payment
Supply Ability: 60Sets/Month
Detailed Product Description
The Longest Minimize: 480mm Size: 990×425×350 Mm
Minimize Thickness: 0.3-3.5 Mm Weight: 220Kg
Use: Cutting PCBA , FR4 .Metal Board , Alum Board , Etc Color: White
High Light:

v cut pcb depanelizer

,

pcb v cut machine

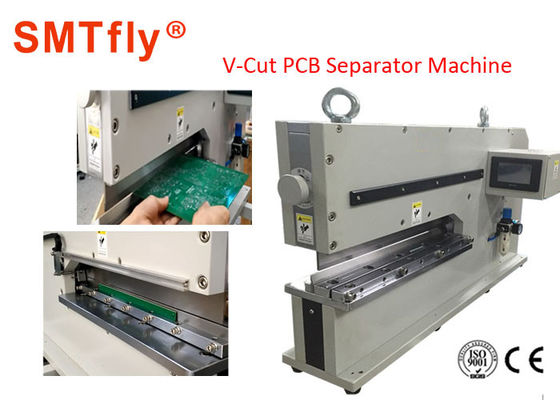

V Cut PCB Depaneling Machine for PCB Separator-Circuit Board Separator Machine,SMTfly-480 Description:



Using the new gas electric light weight design, built-in SERISOR, completed no shear stress plate cutting once, The machine is especially suitable for cutting precision SMD or sheet. Without Bow waves and micro cracks which produced when using no circular knife type to cut. Using the wedge tool to cut board linearly, and minimize the shear stress , so the sensitive SMD components, and even the capacitor can be not affected, and minimize potential quality risk. Plate cutting stroke below 1MM, no operation safety concerns, cutting tool is made of high speed steel precision grinding, and can repeat grinding, also suitable for sheet metal without V-CUT board operation.



V-Cut Pcb Separator for Cutting Metal Board With Linear Blades,CWVC-480 Feature:



1. Separates boards up to 3.5mm thick

2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3. Operator foolproof! Panels cannot be inserted into the Knives except on the score line

4. Pneumatically driven

5. Handles high components up to 70mm

6. Bow waves that can occur with round knives are avoided

7. Easy adjusting of distance between knives

8. Independent lab tests show less than 200 macrostrains of stress measuring compression and tension.

9. Has capacity counter function



PCB Separator Cutting-Pcb Depaneling Equipment Specification:



Model

SMTfly-480

The Longest Minimize

480 mm

Size

990×425×350 mm

Minimize thickness

0.3-3.5 mm

Weight

220Kg

Use

Cutting PCBA , FR4 .Metal board , Alum Board , Etc



V-cut PCB Separator for PCB Cutter Machine,Our advantages:



- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine;

- integrated waste suction prepared;

- repaneling process without vibrations;

- easy-to-service design;

- pneumatically driven (FESTO);

- operation and maintenance possible without precognition;

- high power reserves, operations already possible at 2 bar;

- pneumatic control placed in a separate unit for easier maintenanc.



PCB Cutter Machine-V-cut PCB Depaneling Machine:

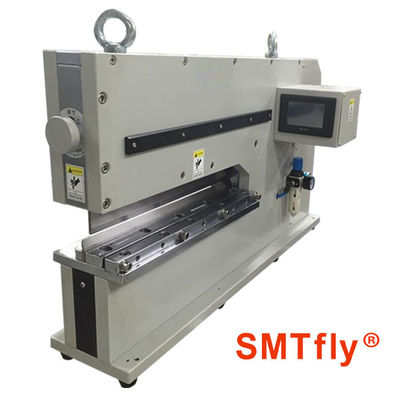

             Pneumatically Driven V Cut PCB Depaneling Machine SMT Router Long Life Span SMTfly-480
