6-20K / Hours Conformal Coating Machine , Pcb Coating Machine 2600W SMTfly-DJL

China 6-20K / Hours Conformal Coating Machine , Pcb Coating Machine 2600W SMTfly-DJL supplier
6-20K / Hours Conformal Coating Machine , Pcb Coating Machine 2600W SMTfly-DJL supplier 6-20K / Hours Conformal Coating Machine , Pcb Coating Machine 2600W SMTfly-DJL supplier

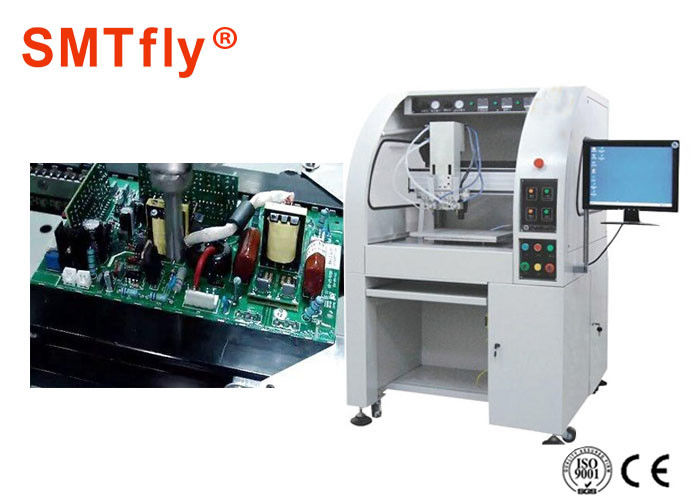

Large Image :  6-20K / Hours Conformal Coating Machine , Pcb Coating Machine 2600W SMTfly-DJL

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-DJL

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 30Set/Month
Contact Now
Detailed Product Description
Dispensing Accuracy: + 0. 05mm Dispensing Speed: 6-20K/ Hours
X/Y Accuracy: + 0.02mm Dispensing Pressure: 0.4-0.6Mpa
Weight: 600Kg Power: 2600W



Conformal Coating Machine-China Coating Machinery,SMTfly-DJLSpecification:



Dispensing speed 6-20K/ hours
Dispensing accuracy + 0. 05mm
X/Y accuracy + 0.02mm
Location speed < 1 second
Transmission mode Panasonic servo motor + ball screw
Dispensing head precise thimble dispensing valve
Dispensing range 480mmX300mm
Dispensing pressure 0.4-0.6Mpa
Mode of identification PCB board, full vision, automatic alignment
Operating system Windows2000/XP all Chinese operation interface
Software system three, a full vision positioning system
Power supply 220V, 50HZ
Power 2600W
Machine size 1100X1050X1940mm
Machine weight 600KG
Standard configuration mechanical vision system
Three, independent development identification methods
PCB board automatic PR counterpoint programming mode
Full automatic software programming operating system Windows2000/XP, all Chinese operation interface
Motor Panasonic servo motor
Camera industrial camera
X/Y transmission mode imported guide rail, screw rod (upper silver, TBI)
Pneumatic components SMC
Display 17 inches DELL (optional)





Conformal Coating Machine-China Coating Machinery,SMTfly-DJL Features:



1.the use of Chinese teaching box operation, easy to understand;

2.with drawing points, lines, surfaces, arcs, circles, irregular curves, continuous inter room and four axis linkage functions;

3.software with regional array, translation, rotation, computing and other functions;

4.glue size, speed, dispensing time, stop adhesive time all can set parameters, the quantity of cement stable, without leaking and dripping;

5.in accordance with the process needs, you can install the workbench positioning PIN, glue gun or floor heating control device

6.can increase the heating function of glue

7.automatic feeding function can be increased

8.for fluid dispensing, such as UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive adhesive, SILICON, epoxy resin, instant glue, silver glue, red glue, paste, paste, solder paste, transparent paint, screw fixing agent etc.

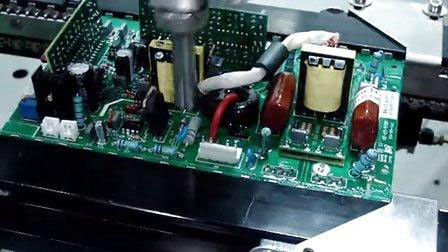

9.application: semiconductor package, PCB fixed and protection of electronic components, LCD glass board encapsulation, mobile phone keypad board coating or dispensing, dispensing, dispensing speaker battery box sealing, steam car parts, metal parts, mechanical coating coating, then quantitative gas, liquid filling coating, chip bonding etc.


Conformal Coating Machine-China Coating Machinery,SMTfly-DJL:



                                6-20K / Hours Conformal Coating Machine , Pcb Coating Machine 2600W SMTfly-DJL
