Positioning Accuracy: 0.02mm Power Supply: 1.2Kw
Max Circuit Board Area: 1200×300mm Position method: Visual Position
Compressed Air: Vacuum Air In Machine Belt feeder: 8mm, 12mm, 16mm And 24mm(OPT)
Warranty: 1 Year Color: White

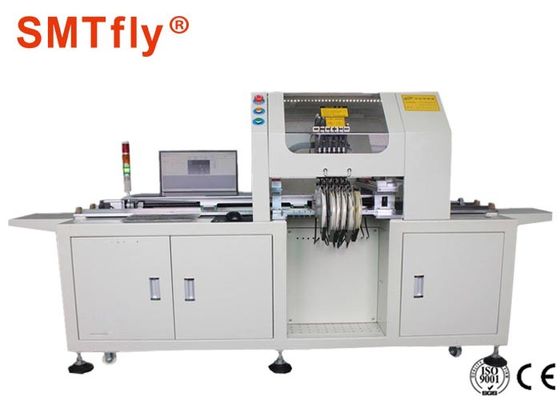

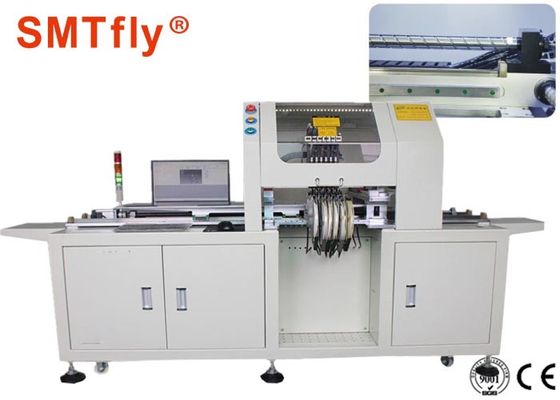

1.2KW LED Panels Pick & Place Machine with Optional 8mm Belt Feeder SMTfly-6H Description:



LED pick and place machine improves the precision and efficiency of mount, professional for electronic factory,LED surface mount manufactory.LED Pick and Place Machine is stable and easy to operate.



1.2KW LED Panels Pick & Place Machine with Optional 8mm Belt Feeder Technical parameter:



Model SMTfly-6H
Max circuit board size 1200×300mm
Max moving range X axis 1210mm, Y axis 330mm
Max moving range of Z axis 10mm
Typical Mounting speed 20000cph
Max mount speed 28000cph
Mount accuracy ±0.05mm
Position method Visual position
Component available 0603and above SMD component and LED
Programme method Automatic data import/ video study/ keyboard input
Belt feeder 8mm, 12mm, 16mm and 24mm(OPT)
suction nozzle JKUI suction nozzle504,505 and 506
Operation system WINDOWS XP
Compressed air Vacuum air in machine
Power supply 220V,50Hz, 1.2Kw
Weight 750Kg
Dimension 2000MM(L)*930MM(W)*1450MM(H)



1.2KW LED Panels Pick & Place Machine with Optional 8mm Belt Feeder Features:



  • The platform transmission uses the imported linear guide rail and lead screw in combination with the Japan original Panasonic servo drive ensuring the high-speed stationarity and control precision of the platform.
  • The transmission of the X and Y shafts uses the imported high-precision ground lead screws and linear guide rails in combination with the Japan Panasonic servo drive ensuring the high precision and high speed of mounting.
  • 4 sets of high-speed mounting heads work simultaneously. The sucking heads use high-precision durable spline shafts.
  • Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
  • Multi Feeder optional, can meet different kinds of LED mounting.
  • Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
  • Software adopts data system, and store different types of PCB for convenient adjustment, just need to programming one time for new products to use forever.
  • Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
  • LED Pick & Place Machine use imported vacuum detection system, it can check the suction accurately to prevent material leakage and throwing effectively.
  • Internal negative pressure system: low noise, long service life and vacuum pressure constant.
  • Standard setting:1 PC,6 mounting heads,18 nozzles.
  • Optinal :8mm,12mm,16mm 24mm automatic feeder, different nozzles, industrial pump, air compressor .
