Customize 4 Axis Output 0.02MM Automatic Screw Driving Machine For PCB Panels

China Customize 4 Axis Output 0.02MM Automatic Screw Driving Machine For PCB Panels supplier
Customize 4 Axis Output 0.02MM Automatic Screw Driving Machine For PCB Panels supplier Customize 4 Axis Output 0.02MM Automatic Screw Driving Machine For PCB Panels supplier

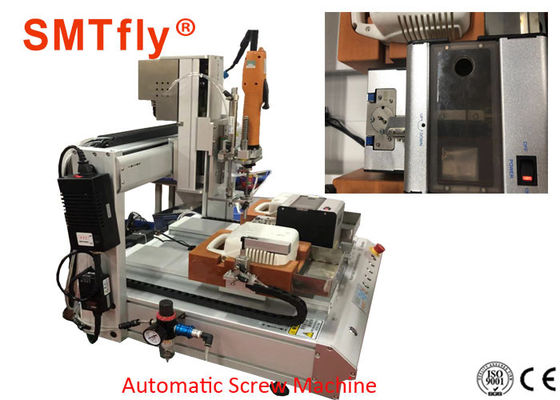

Large Image :  Customize 4 Axis Output 0.02MM Automatic Screw Driving Machine For PCB Panels

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-LS1B

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7 working days
Supply Ability: 100Sets/Month
Detailed Product Description
Power: 220V 50HZ Precision: ±0.02mm
Payment Terms: T/T L/C Program: Teaching Type
Control System: PLC+TP Warranty: 1 Year
Motor Axis: 4 Axis Work Voltage: DC24V
High Light:

automatic screw driving machine

,

automatic screw feeder machine

Customize 4 Axis Output 0.02MM Automatic Screw Machine for PCB Panels Input Program:



Programming input signal is when the proplem execution to the programming of the point,if the values of the input state accord with the specified input signals then program jump to the specified address or label,if not then program continue to execute,Use this function can be acheived with other devices with the work or as a pause key input,etc(Signal definition: if has the input signal then the signal is defined as the amount of1,no input signal is defined as the amount of the signal 0)



Customize 4 Axis Output 0.02MM Automatic Screw Machine for PCB Panels Output Program:



When the program is executed to the output signal programming point,then the output signal will output specified value,1 as DC24V output,0 as DC0V output,When debugging ,we can testing the corresponding output,such as starting the screwdriver,controlling solenoid value suction,clamping cylinder,etc.



Customize 4 Axis Output 0.02MM Automatic Screw Machine for PCB Panels Feature:



  1. Auto-intelligent detection for screw loose, screw missing,screw unstable.K576.
  2. Automatic feeding and lock screws, any screw hole point and location data can be stored in the system at any time.
  3. Excellent commonality and easy replace Screw M2.0—M5.0.
  4. Using X,Y,Z axis operation movement system control.



Customize 4 Axis Output 0.02MM Automatic Screw Machine for PCB Panels Specification:



Model SMTfly-LS1B
Brand Name SMTfly
Certification CE ISO
Working Range 500mm*500mm*100mm(x*y*z)
Drive Mode 3 axis driver
Position Accuracy ±0.02MM
Control System PLC+TP
Screw Feeding Absorption type
Operation Method By programming
Working Speed Min<1.2S
Memory Size 999groups
COM USB
Voltage 220VAC,50HZ
Air Pressure 0.4Mpa
Screws Scope M2.0-M5.0
Power 220V/50V
Screw Materials Iron Copper Stainless Steel Etc.
Warranty Free of charge one year
Packaging Each set be packed in plywood case
Payment Terms T/T,L/C



Customize 4 Axis Output 0.02MM Automatic Screw Machine for PCB Panels Application:



Notebook computers, glasses, mobile phones, LCD monitors watches, integrated board, Sound box, Camera, Toys, small appliance Etc.
