Heavy Duty Benchtop PCB Cleaning Machine 0.5Mpa~ 0.7Mpa Air Supply SMTfly-5100

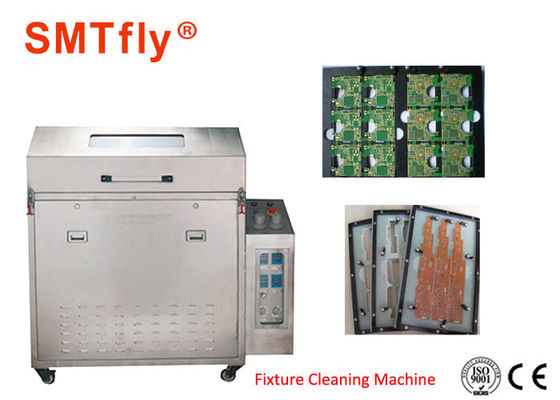

Large Image : Heavy Duty Benchtop PCB Cleaning Machine 0.5Mpa~ 0.7Mpa Air Supply SMTfly-5100

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-5100

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	7-15 working days
Supply Ability:	30Set/Month

Contact Now

Detailed Product Description

Rinse Fluid Capacity:	80L(Max)	Class 1 Filter:	2mm(Filter Impurities)
Blower:	3.7KW Heated To 80°	Air Supply:	0.5Mpa~ 0.7Mpa
Power Supply:	AC380V,3Phase,22KW	Weight:	500KG
Highlight:	ultrasonic pcb cleaning machine , nozzle cleaning machine

PCB Fixture Cleaning Machine-Stencil Cleaning Machine,SMTfly-5100 Cleaning Fixture Comparison:

Condenser cleaning	Manual or ultrasonic cleaning	Comparing results
Automatic cleaning,100% safe	Charged cleaning or artificial iron brush cleaning+solution,poor safety	≥
Batch cleaning,fast and efficient	Cleaning time is long,low efficiency	≥
One-touch operation,no need to special cleaning staff	Iron brush fixture,dirty,tired,need special cleaning personal	≥
Up and down,around the full range of cleaning,cleaning thoroughly,high cleanliness	Condenser on the dead ends,the surface dirty cleaning difficult	≥
Solution cycle repeated repeated use	High Cleaning costs	≥
Spay cleaning and rinsing,governance well intact	Iron brush cleaning will be raised,the surface off the phenomenon,the impact of follow-up product quality	≥
Cleaning +rinse+dry,after cleaning the surface without solvent	No rinse,after cleaning solvent residue,after the use of heat when the smell out after the smell out	≥

PCB Fixture Cleaning Machine-Stencil Cleaning Machine,SMTfly-5100 Specification:

Cleaning basket size	1000*200(H)mm Special size need to be customized
Cleaning fluid capacity	80L(Max)
Rinse fluid capacity	80L(Max)
Cleaning method	Spray rotary cleaning and rinsing
Dry way	Compressed air dry
Recommended cleaning time	3-15mins
Recommended rinse time	1-2mins
Recommended drying time	3-6mins
Cleaning filter	Using 3-level filtration
Class 1 filter	2mm(Filter debris)
Class 2,3 filters	100um/20um(Filter flux, rosin and so on)
Blower	3.7KW Heated to 80°
Diaphragm pump	1 inch diaphragm pump (pumping, drainage)
Air supply	0.5Mpa~ 0.7Mpa,600-800L/min
Air consumption	800-1000L/min
Outlet size	Φ130mm(W)×60mm(H)
Dimension	1550(L) ×1780mm(W) ×1730mm(H)
Recommended cleaning and drying time	2-3mins

PCB Fixture Cleaning Machine-Stencil Cleaning Machine Cleaning Basket:

Place the cleaning fixture to be cleaned, rinse, rinse, dry rotation automatically, 1m diameter cleaning basket, can be placed more than one piece of fixture, to achieve batch cleaning

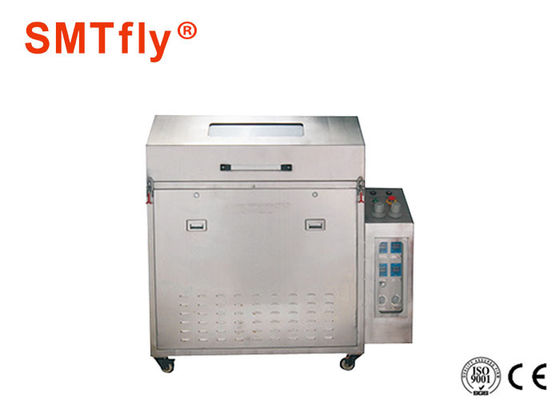

Heavy Duty Benchtop PCB Cleaning Machine 0.5Mpa~ 0.7Mpa Air Supply SMTfly-5100

Pump Cleaning pump/rinse pump/blower:

High-quality, high-flow electric pump and pneumatic pump,theoutput pressure, high flow god cleaning effect

High-power, high-flow blower, to ensure that drying effect, improve drying speed.

PCB Fixture Cleaning Machine-Stencil Cleaning Machine,SMTfly-5100 Description:

CW-5100 is my company independent research and development, production of high-precision cleaning equipment, mainly for SMT furnace governance, back to the furnace condenser, filter, wave soldering chain, jaws and other regular cleaning; the current large customers are: Quanta Computer, Wistron Capital, China-computer, Brazil Xierkang, Panasonic electronic parts and so on.

If you're interested in the machine,please let us know,we'll try our best to help you.
