Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

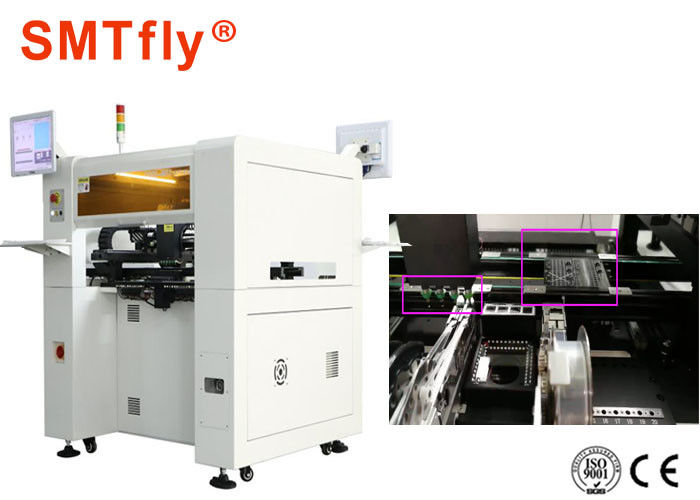

Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads

China Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads supplier
Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads supplier Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads supplier Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads supplier

Large Image :  Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-PP6H

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15-30 working days
Supply Ability: 30Sets/Month
Detailed Product Description
Compressed Air: 0.5-0.6Mpa Positioning Accuracy: 0.01mm
Feeders: 60 (Front 24 After 36) Power Supply: 220V,50Hz
Mounting Heads: 6 Color: White
High Light:

smt pick and place machine

,

smt placement equipment

Automatic Pick and Place Machine Customized Circuit Boards,SMTfly-PP6H Specification:



Feeder No 60 Product Weight 500Kgs
Mounting Heads 6 XYZ Drive Guide Rail TBI High-precision heavy-duty straight-line guide rail
Average Power 600W
Positioning Accuracy 0.01mm Motion Drive Guide Rail Panasonic High speed DPS driver
Nozzle Buffering Range 5.0mm Operating System Support Windows XP,Win 7 operating system
Power Supply 220V,50Hz Component Angle 0-360°,Synchronized rotation in motion
Compressed Air 0.5-0.6Mpa X/Y Running Mode Intelligent curve acceleration and deceleration linear linkage
Recognition Vacuum Source High-speed on-off vacuum generator with vacuum damage Intelligent Alarm Automatically connection and supplement,alarm when materials shortage
Max Circuit Board Area 650*370mm Board Input Method Automatically connect loader and position PCB transmission
XY Max Movement Range 700*619mm Rail Guide Adjusting Method Manual+Automatic
Z Axis Max Movement Range 20mm Visual Display 15 industrial control display ratio4:3,resolution 1024*768
Belt Type Feeder 8/12/16/24mm feeders,stick feeder,tube chip Programming Mode Point to point programming,visual programming,PCB file coordinates inputting,etc
Max Mounting Speed 12000CPH
Average Mounting Speed 9000CPH(Visual) Recognition Camera No 1Mark recognition camera,6 high speed recognition camera,1high-precision recognition camera
Dimensions 1335*1230*1420mm
Applicable Mounting Range: Suitable for 0402,0603,0805,1206,LED lamp beads,diodes,transistors,SOT,40*40mm range pin pitch≥0.3mm QFP,BGA etc.



Automatic Pick and Place Machine Customized Circuit Boards,SMTfly-PP6H Features:



Support 60 sets of material stand,standard IC tray,tubed chip vibration three pipes,the size can be adjusted arbitrarily;



Panasonic Servo System-High precision,strong stability,Promise 24 hours mounting stably;



      Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads                Fully Automatic PCB Component Mounting Machine , SMT Pick And Place Equipment 6 Heads



Taiwan TBI rails,low sound,high-precision,could effectively guarantee the accuracy rate of 0402 and Chip BGA;



6 sets of high speed camera Synchronically recognize,improve precision as well as efficiency;



8 camera,1 Mark,1high precision,6 high speed recognized camera,synchronically recognize,effectively ensure mounting speed and precision;



PCB board rails grasp automatically,no need workers,saving time and labour;



Board entrance after printed,PCB board could put into rails which will automatically import and mount;



After mounted,the PCB board could automatically enter the reflow oven via automatic loader,which could save labour.
