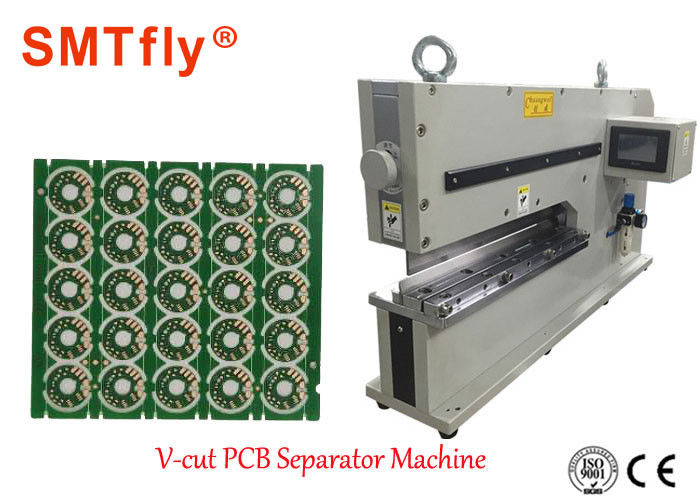

Semi Automatic 480mm V Cut PCB Depaneling Machine For SMT Assembly Line

V-Cut Pcb Separator For Cutting Metal Board With Linear Blades,CWVC-480 Feature:

1. Separates boards up to 3.5mm thick

2. Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3. Operator foolproof! Panels cannot be inserted into the Knives except on the score line

4. Pneumatically driven

5. Handles high components up to 70mm

6. Bow waves that can occur with round knives are avoided

7. Easy adjusting of distance between knives

8. Independent lab tests show less than 200 macrostrains of stress measuring compression and tension.

9. Has capacity counter function

PCB Separator Cutting-Pcb Depaneling Equipment For SMT Assembly Line Specification:

V-cut PCB Separator for PCB Cutter Machine,Our advantages:

- gap for insertion of the board can be adjusted easily by means of a knob in the front of the machine;

- integrated waste suction prepared;

- repaneling process without vibrations;

- easy-to-service design;

- pneumatically driven (FESTO);

- operation and maintenance possible without precognition;

- high power reserves, operations already possible at 2 bar;

- pneumatic control placed in a separate unit for easier maintenanc.

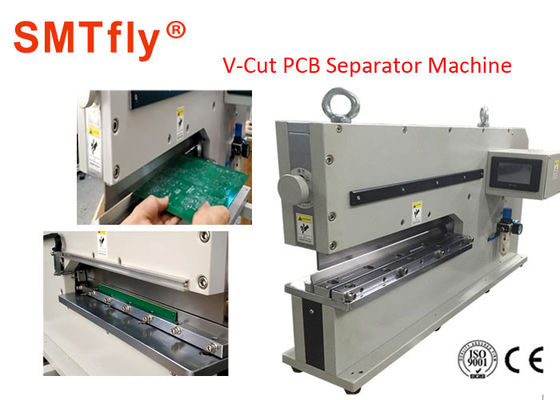

Sample for the working of PCB Separating:

V-Cut PCB Separator Description:

Using the new gas electric light weight design, built-in SERISOR, completed no shear stress plate cutting once, The machine is especially suitable for cutting precision SMD or sheet. Without Bow waves and micro cracks which produced when using no circular knife type to cut. Using the wedge tool to cut board linearly, and minimize the shear stress , so the sensitive SMD components, and even the capacitor can be not affected, and minimize potential quality risk. Plate cutting stroke below 1MM, no operation safety concerns, cutting tool is made of high speed steel precision grinding, and can repeat grinding, also suitable for sheet metal without V-CUT board operation.

About us:

SMTfly is a leader in PCB Separator, hot bar soldering machine & other SMT equipments, it provides high-end PCB manufacturing machines for industrial factories in this word.
SMTfly was found in September of 2004, it is a professional technology equipment manufacturer with R&D , production , sales and service in one line.
SMTfly head office is located at Ganghuaxing industrial park , Fuyong Town, Shenzhen.
Adhere to the "customer as the center" , meet the needs of the electronic industry customers by technological innovation & management optimization.
SMTfly help you soar!
