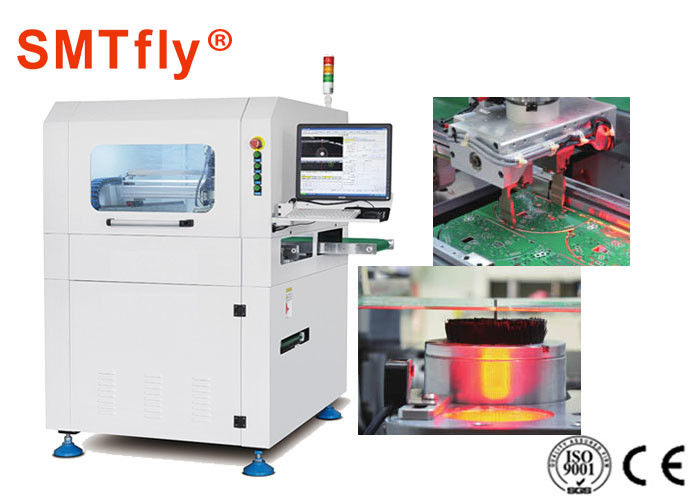

Automatic PCB Depaneling Separator Machine for CNC PCB Router Solution,SMTfly-F03:

An on-line PCB which is specially used to cut PCBA components(panel) into separate parts, featuring rail-mounted structure without jig cutting. It can be put into production immediately. Featuring ESD static monitoring, cutting stress feedback, and automatic tool changing, it can reach a top speed of 60000 rotates. The control system developed on the basis of our RM system can ensure customer’s rapid and accurate programming.

Inline PCB Router,SMTfly-F03 Specification:

Model	SMTfly-F03
Machine Size	100012001533mm
Weight	Approx 1900kgs
Max PCB Size	350*350mm
PCB Thickness	0.4-6mm
Transmission height	900±50mm
Transmission direction	Left -> Right
Transmission speed	1500mm/s(max)/adjustable
Feeding plate type	Section-type transportation guide rail
Rail width adjustment	Automatic
Communication signal of upper and lower computers	SMEMA
PCB Positioning	Upper and lower guide rail clamping

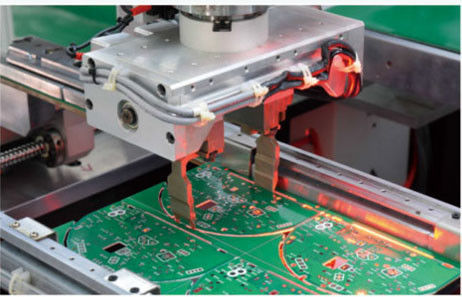

Picking system	360°rotary clamping system; 2 groups of vacuum suction nozzles at most, 4 groups of ESD belt transportation/batch panel forwarding units at most
Cutting spindl/speed	Germany KAVO, 60,000rpm/min
Cooling type	Air compression
ESD monitoring	Yes
Automatic tool change	Yes
Cutting stress feedback	Yes
Break blade check	Yes
Cutting speed	1-200mm/s
Cutting accuracy	±0.5mm
Repeat positioning accuracy	±0.01mm
Coordinate moving speed	1000mm/s
Out plate type	ESD belt transportation/batch panel forwarding unit
Waste collection type	Out off the track
Procedure programming	GERBER drawing import/Editing program through visual system
Air supply	5-8kg/cm2
Power supply	AC380V±5%, 50/60Hz, 3KW

Automatic PCB Depaneling Separator Machine - PCB Router Features:

1. Automatic tool change;

2. ESD monitoring;

3. Cutting stress feedback;

4. Automatic production mode;
5. Linkage between Spec statistic function and customer’s management system-ERP;

6. Can be equipped with explosion-proof function of vacuum cleaner.

PCB Routing for PCB Separator Machine High Reliability Cutting System:

Germany KAVO high-speed principal axis with a top speed of 60000 rotates, featuring ESD static voltage monitoring and the functions of cutting stress feedback and automatic tool changing.
