High Cutting Accuracy PCB Depaneling Router Machine 320*320mm Panel Size

China High Cutting Accuracy PCB Depaneling Router Machine 320*320mm Panel Size supplier
High Cutting Accuracy PCB Depaneling Router Machine 320*320mm Panel Size supplier High Cutting Accuracy PCB Depaneling Router Machine 320*320mm Panel Size supplier

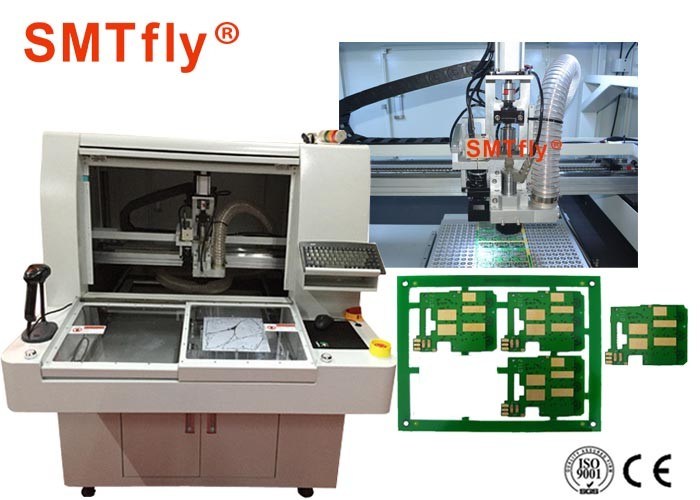

Large Image :  High Cutting Accuracy PCB Depaneling Router Machine 320*320mm Panel Size

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-F01-S

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: Wooden Box
Delivery Time: 15 Working Days after Payment
Supply Ability: 30Sets/Month
Contact Now
Detailed Product Description
Machine Repeat Ability: ± 0.02mm Dust Collection: Dust On The 2HP
Cutting Accuracy: ± 0.05mm Loading: Manual
Panel Size: 320*320mm(standard) Resolution: ±0.01mm



Depaneling,PCB Depaneling Router Machine & PCB Depanelizer,SMTfly-F01-S Specification:



Model

SMTfly-F01-S

Standard working area

320*320mm

Power

220V, 4.2KW

Manipulator Repeat ability

±0.02mm

Resolution

±0.01mm

Board Positioning

Dual workstation with nest fixture or pin fixture

Panel Location

Located by tooling holes or edges of PCB

Loading

Manual

Unloading

Manual

Panel Size

320*320mm(standard)

Panel Thickness

0.5-3.5mm

Spindle motor

KAVO Spindle

Tool Change

Manual

Dust filtration system

3KW Vacuum Cleaner

Vision system

High resolution CCD video camera

Programming

Vision assisted point to point manual teaching

Editing Function

Dry run vision assisted / test run mode

Machine weight

500kgs

Machine dimension

113*140*108cm



Depaneling,PCB Depaneling Router Machine & PCB Depanelizer,SMTfly-F01-S Features:



1. Manual loading/unloading processing;

2. 2-way sliding working exchanger to limit the idle time and simultaneously loading and unloading to reaches the utmost output value;

3. Friendly touch panel with 10X CCD camera to minimize the time of programming;

4. Auto fiducial mark point check and cutting route auto compensation to ensure the cutting accuracy;

5. Auto router bit check to prevent the bit break incomplete cutting.



CNC PCB Depaneling Router Machine Positioning Repeatability:



It is a stand alone router machine specially designed to route (depanelize) printed circuit board assemblies (PCBA) into individual assemblies. The machine can accomodate larger PCBs in its two table configuration with maximum panel size of 650mm x 500mm. Its advanced control software provides user friendly "visual" programming for rapid and accurate online programming.



Why us



1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.

3.Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

4. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine

Our R&D team continuously upgrade the existing machines to meet the market development trend.



PCB Depaneling Router Machine & PCB Depanelizer,CW-F01-S:



                         High Cutting Accuracy PCB Depaneling Router Machine 320*320mm Panel Size
