High Automation Nozzle Cleaning Machine 3 - Pin Plug AC220~240V SMTfly-36

China High Automation Nozzle Cleaning Machine 3 - Pin Plug AC220~240V SMTfly-36 supplier
High Automation Nozzle Cleaning Machine 3 - Pin Plug AC220~240V SMTfly-36 supplier High Automation Nozzle Cleaning Machine 3 - Pin Plug AC220~240V SMTfly-36 supplier

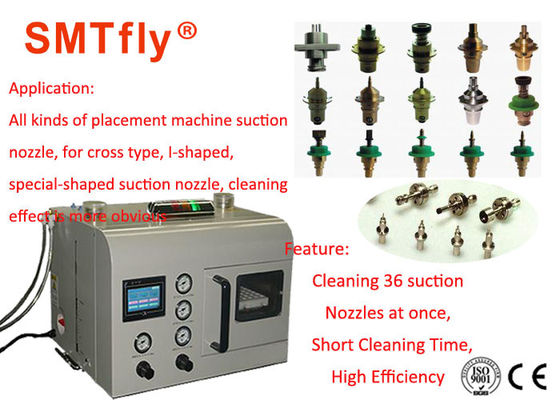

Large Image :  High Automation Nozzle Cleaning Machine 3 - Pin Plug AC220~240V SMTfly-36

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-36

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 30Set/Month
Detailed Product Description
Power Supply: AC220~240V Plug: 3-Pin
Consume Electricity: ≤0.1Kw Consumes Liquid: ≤300cc/h(5cc/min)
Dust: 0.1mg/m³ Drainage Tank: ¢8tubes
High Light:

ultrasonic pcb cleaning machine

,

nozzle cleaning machine

Nozzle Cleaning Machine, Automation/Cleaning Nozzle Equipment,SMTfly-36​ Introduction and use of the machine:



1 Composition Introduction:



1.1: mechanical :All the key parts of the whole use of imported 304 stainless steel, special parts of the use of imported 316 stainless steel to

The warranty machine will not rust due to the use of water, thus affecting the equipment life and other security risks;

1.2: pneumatic : The use of all imports of SMC pneumatic components, to better ensure a stable and efficient work efficiency;

1.3: control : The machine adopts high quality touch screen man - machine interface, PLC control;



2 Precautions:



2.1:Do not open the water cover in the ventilation cleaning or drying. If there is a high pressure in the storage tank,Mouth jet out.

2.2:Please use distilled water or industrial deionized water, do not use mineral water or tap water, such water contains minerals and bleach, the nozzle will cause damage and damage;

2.3: After each cleaning is completed using air guns to dry the residue in the studio;

2.4: After each time you place the nozzle, make sure that the nozzle is fully seated and the nozzle is fit with the fixture.

2.5: Place the tool into the studio when the carousel should be careful not to hit the telescopic cylinder nozzle, If not very strong collision does not affect the nozzle and the concentricity of the device. Sprinkler and appliance concentricity The factory is positioned by positioning the sensor. Such as strong collision lead to concentricity are not allowed to contact with the after-sales maintenance staff in a timely manner;

2.6: Regularly replace the equipment intake filter every year, The general replacement of the filter time for a year, depending on the factory gas source clean to determine, such as filter filter yellow or black need to immediately replace.



Nozzle Cleaning Machine, Automation/Cleaning Nozzle Equipment,SMTfly-36 Features:



A one-time into the 36 nozzle, please wash large;

Completely solve the dirt is difficult to clean the dirt impurities;

Though the smaller nozzle aperture but cleaning is clean;

Cleaning more thoroughly directly extend the life of the nozzle;

No damage to the surface of the nozzle coating, reflective plate;

Use environmentally friendly deionized water or distilled water to clean;

Automatic continuous cleaning, automatic drying;

Operation is more simple and convenient;

Increased intelligent water storage check function;

Applicable to all kinds of placement machine.



Nozzle Cleaning Machine, Automation/Cleaning Nozzle Equipment,SMTfly-36Specifications:



Air pressure

Air pressure

Compressed air

Intake pressure setting

0.5~0.55MPa

Injection pressure setting

0.35~0.38MPa

Nozzle injection pressure

≤0.4MPa

Consumption of gas

≤260Nl/min

tube

Intake trachea

¢12 tubes

Drainage tank

¢8tubes

Cleaning fluid

Cleaning fluid

Industrial deionized water

Consumes liquid

≤300cc/h(5cc/min)

Storage tank capacity

1200cc

power supply

power supply

AC220~240V

plug

3-Pin

Consume electricity

≤0.1Kw

surroundings

Working temperature

-5~ (But not frozen)

Liquid temperature

0~ (But not frozen)

Working environment humidity

10~60%RH

Equipment placed in the environment humidity

10~60%RH

dust

0.1mg/m³(There is no conductive dust)

Corrosive gases

Not allowed

other

Dimensions

655(L) x 560(W) x 475(H)

weight

~(Contains cleaning solution2000cc)

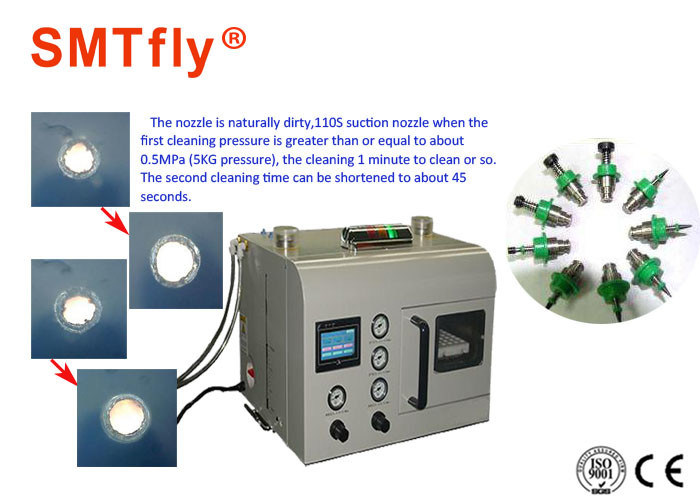

Nozzle Cleaning Machine, Automation/Cleaning Nozzle Equipment,SMTfly-36 Cleaning Effect:



High Automation Nozzle Cleaning Machine 3 - Pin Plug AC220~240V SMTfly-36
