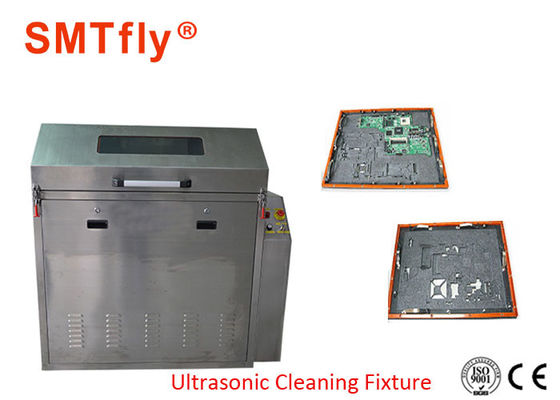

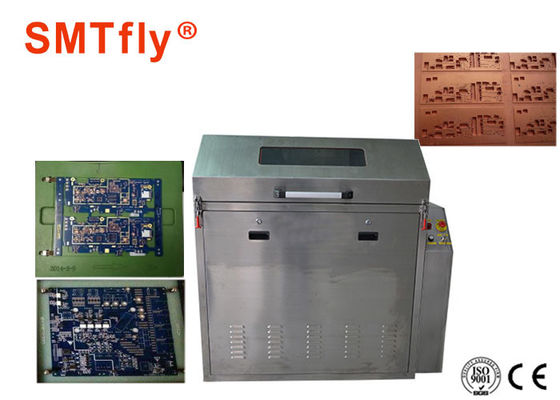

High Speed SMT Stencil Cleaning Machine Stencil Washer for Steel Mesh SMTfly-5200

China High Speed SMT Stencil Cleaning Machine Stencil Washer for Steel Mesh SMTfly-5200 supplier
High Speed SMT Stencil Cleaning Machine Stencil Washer for Steel Mesh SMTfly-5200 supplier High Speed SMT Stencil Cleaning Machine Stencil Washer for Steel Mesh SMTfly-5200 supplier

Large Image :  High Speed SMT Stencil Cleaning Machine Stencil Washer for Steel Mesh SMTfly-5200

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-5200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 30Set/Month
Contact Now
Detailed Product Description
Cleaning Time: Cleaning Time Rinse Time: 2-3 Mines
Class 1 Filter: 2mm(Filter Impurities) Class 2,3 Filters: 100um/20um
Power Supply: AC380V,3Phase,22KW Blower: 3.7KW



Fixture SMT Cleaning Machine Stencil Washing Machine for Steel Mesh,SMTfly-5200​ Advantages:



  1. Touch screen display, one-button operation, one person cleaning, saving labor
  2. Water-based cleaning fluid, environmental protection
  3. The cleaning solution is recycled to save the solution
  4. Batch cleaning ,cleaning fast and efficient
  5. Equipped with a wind knife, can be completely dry
  6. Up and down, around the full range of cleaning, cleaning thoroughly, high cleanliness
  7. Spray cleaning, governance with intact



Parts of Fixture SMT Cleaning Machine Stencil Washing Machine for Steel Mesh:



1. Aning Basket

Place the cleaning fixture to be cleaned, rinse, rinse, dry rotation automatically, 1m diameter cleaning basket, can be placed more than one piece of fixture, to achieve batch cleaning



2. Pump Cleaning pump/rinse pump/blower

High-quality, high-flow electric pump and pneumatic pump,theoutput pressure, high flow god cleaning effect

High-power, high-flow blower, to ensure that drying effect, improve drying speed.



3. Liquid tend cleaning tank/rinse tank

Respectively, to store cleaning solvents and rinse liquids to form separate piping systems



4. Control System

Completely independent distribution cabinet to protect electrical parts from cleaning and steam damage to ensure equipment life


Fixture SMT Cleaning Machine Stencil Washing Machine for Steel MeshSpecification:



Cleaning basket size 1000*200(H)mm Special size need to be customized
Cleaning fluid capacity 80L(Max)
Rinse fluid capacity 80L(Max)
Cleaning method Spray rotary cleaning and rinsing
Dry way Heated air knife dry
Recommended cleaning time 5-20 mins
Recommended rinse time 2-3 mins
Recommended drying time 5-20 mins
Cleaning filter Using 3-level filtration
Class 1 filter 2mm(Filter impurities)
Class 2,3 filters 100um/20um(Filter flux, rosin and so on)
Blower 3.7KW Heated to 80°
Diaphragm pump 1 inch diaphragm pump (pumping, drainage)
Air supply 0.5Mpa~ 0.7Mpa,600-800L/min
Power supply AC380V,3Phase,22KW
Weight about 500KG
Dimension 1380(L) ×2100mm(W) ×1400mm(H)



SMTfly-5200 Machine and Artificial / Ultrasonic Cleaning Fixture Comparison:



Spray cleaning Manual or ultrasonic cleaning Comparing results
Spray pressure can be adjusted, batch cleaning, fast and efficient Cleaning time is long, low efficiency
One-touch operation, no need to special cleaning personnel Iron brush fixture, dirty, tired, need special cleaning personnel
Up and down, around the full range of cleaning, cleaning thoroughly, high cleanliness Fixture on the dead, the surface dirty, cleaning difficult
The solution is recycled several times to save the solvent Need to immersion cleaning, cleaning costs are high,
Spray cleaning and rinsing, governance well intact Iron brush cleaning will be raised, the surface off the phenomenon, the impact of follow-up product quality
Cleaning + rinse + dry, after cleaning the surface without solvent No rinse, after cleaning solvent residue, after the use of heat after the smell of smell out



Fixture SMT Cleaning Machine Stencil Washing Machine for Steel Mesh Application:



Blast furnace governance cleaning:

Back welding furnace governance, tray, fixture,Synthetic stone, aluminum, stainless steel and so on.



Reflow soldering / wave soldering maintenance:

Reflow soldering, filter, wave soldering chain, jaws,Any machine maintenance parts.



Parts:Electronics, hardware, lance glue surface of the oil,Washable parts.



Control System:



   High Speed SMT Stencil Cleaning Machine Stencil Washer for Steel Mesh SMTfly-5200
