High Efficiency Solder Paste Printing Machine / Solder Printer Machine Spray Type Cleaning

China High Efficiency Solder Paste Printing Machine / Solder Printer Machine Spray Type Cleaning supplier
High Efficiency Solder Paste Printing Machine / Solder Printer Machine Spray Type Cleaning supplier High Efficiency Solder Paste Printing Machine / Solder Printer Machine Spray Type Cleaning supplier

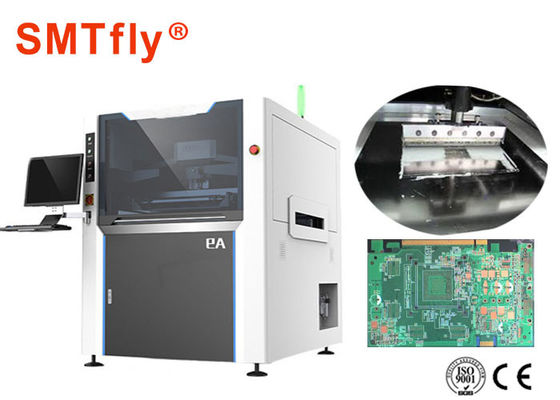

Large Image :  High Efficiency Solder Paste Printing Machine / Solder Printer Machine Spray Type Cleaning

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-A9

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15 working days after payment
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
Squeegee Type: Stainless Steel(Standard), Plastic Cleaning System: Dry,Wet,Vacuum (Programmable)
Cycle Time: <7s (Exclude Printing & Cleaning) Product Changeover: <5Min
Control Method : PC Control Printing Accuracy : ±0.02mm

Parts of Printing Solder Paste Onto PCB's - Mesh Screen and Metal Stencil Description:

1. Scraper system

* the arch bridge is suspended straight and straight
* programmable suspension self-adjusting stepping motor drives the printing head
* four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation before and after scraping
* for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements of PCB, for the customer provides a good platform for the control of printing;
* slide rail scraper system to improve operation stability and prolong service life;
Full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full.

2. Steel mesh positioning system

The size of steel mesh has good and wide applicability
The imported SMC cylinder is used as the cylinder.
Embedded scale, never fall off
Segmented fixed steel frame.

3. Image and optical path system

X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive
Internal increase polaroid, automatic accurate grasping different type of the MARK point
Upper, lower and coaxial 3 uniform light source
Japan's Toshiba industrial camera.

4. PCB transportation and positioning system

The inlet direction arbitrary selection, free combination
Special process of inner tooth transport belt, prevent card board
Programmable transport speed control can make the suspension more accurate
Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between PCB and steel mesh.

5. Cleaning system

Spray type cleaning
Dry, wet, vacuum-free combination
Separate cleaning structures
Circular cleaning rubber strip
Cleaning fluid, and steel net cleaning paper amount controlled.

6. Platform calibration system

UVW platform structure, high precision, large rigidity and compact structure
Triaxial linkage, small volume, high precision



Printing Solder Paste Onto PCB's - Mesh Screen and Metal Stencil,SMTfly-A9Specificaiton:


 Model SMTfly-A9
Item
Screen FramesMin Size470X370mm
Max Size737X737mm
Thickness25~40mm
PCB Min Size50X50mm
PCB Max Size510X340mm(530X340mm)
PCB Thickness0.4~6mm
PCB Warpage<1%
Transport Height900±40mm
Transport DirectionLeft-Right; Right-Left; Left-Left; Right-Right
Transport SpeedMax 1500mm/S Programmable
Board Location
PCB
Support SystemMagnetic Pin/Up-down table adjusted/support block
by hand Magnetic thimble/adjustable jacking platform/ contour block
Clamping Systemside clamping, vacuum nozzle,
Print headTwo independent motorised print heads
Squeegee Speed6~200mm/sec
Squeegee Pressure0~15Kg
Squeegee Angle60°/55°/45°
Squeegee TypeStainless steel(Standard), plastic
Stencil Separation Speed0.1~20mm/sec Programmable
Cleaning SystemDry,Wet,Vacuum (Programmable)
Table Adjustment rangesX:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy±0.008mm
Printing Accuracy±0.02mm
Cycle Time<7s (Exclude Printing & Cleaning)
Product Changeover<5Min
Air Required4.5~6Kg/cm2
Power InputAC:220±10%,50/60HZ 1Φ 3KW
Control MethodPC Control
Machine Dimensions1220(L)X1530(W)X1500(H)mm
Machine WeightApprox:1000Kg

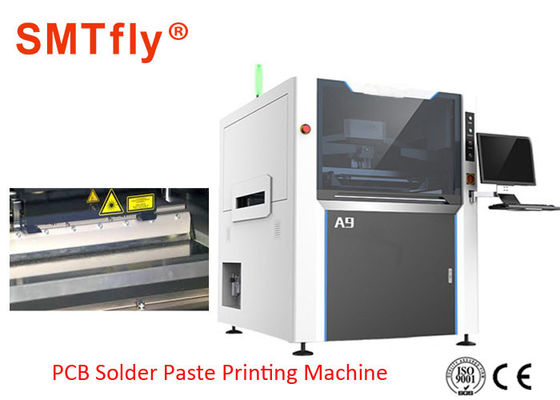

Sample for Printing Solder Paste Onto PCB's - Mesh Screen and Metal Stencil:

        High Efficiency Solder Paste Printing Machine / Solder Printer Machine Spray Type Cleaning
