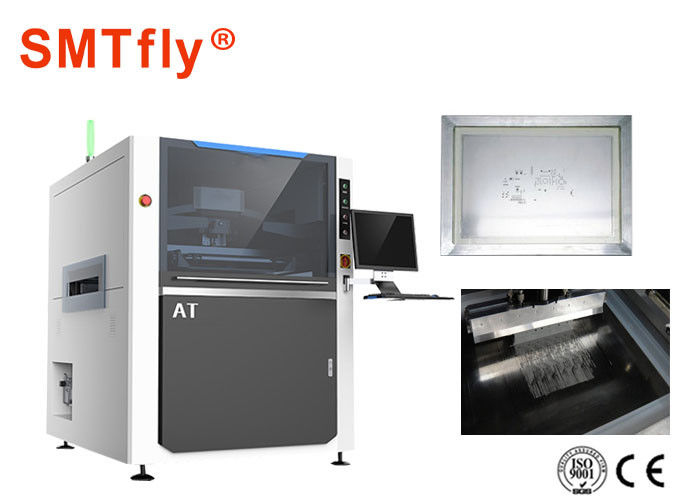

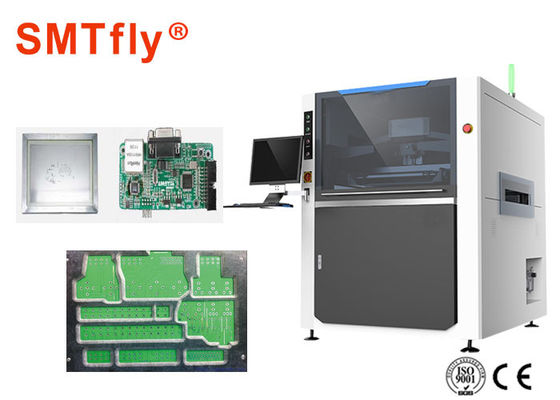

Professional Solder Paste Printing Machine For Printed Circuit Board Stencils SMTfly-AT

China Professional Solder Paste Printing Machine For Printed Circuit Board Stencils SMTfly-AT supplier
Professional Solder Paste Printing Machine For Printed Circuit Board Stencils SMTfly-AT supplier Professional Solder Paste Printing Machine For Printed Circuit Board Stencils SMTfly-AT supplier

Large Image :  Professional Solder Paste Printing Machine For Printed Circuit Board Stencils SMTfly-AT

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-AT

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15 working days after payment
Supply Ability: 50Sets/Month
Detailed Product Description
Squeegee Type: Stainless Steel(Standard), Plastic Cleaning System: Dry,Wet,Vacuum (Programmable)
Repeat Position Accuracy: ±0.007mm Cycle Time: <8s (Exclude Printing & Cleaning)
Product Changeover: <5Min Printing Accuracy: ±0.015mm
High Light:

solder paste inspection equipment

,

pcb inspection machine



Solder Paste Printer Machine for Printed Circuit Board Stencils Printers,SMTfly-AT Specificaiton:



Model SMTfly-AT
Screen Frames Min Size 470X370mm
Max Size 737X737mm
Thickness 25~40mm
PCB Min Size 50X50mm
PCB Max Size 510*510mm
PCB Thickness 0.4~6mm
PCB Warp age <1%
Transport Height 900±40mm
Transport Direction Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed Max 1500mm/S Programmable
Board Location
PCB
Support System Magnetic Pin/Up-down table adjusted/support block
by hand
Clamping System Side clamping,vacuum nozzle
Print head Two independent motorised print heads
Squeegee Speed 6~200mm/sec
Squeegee Pressure 0~15Kg Motor Control
Squeegee Angle 60°/55°/45°
Squeegee Type Stainless steel(Standard), plastic
Stencil Separation Speed 0.1~20mm/sec Programmable
Cleaning System Dry,Wet,Vacuum (Programmable)
Table Adjustment ranges X:±10mm;Y:±10mm;θ:±2°
Solder Paste Inspection 2D Inspection(standard)
Machine
Repeat Position Accuracy ±0.007mm
Printing Accuracy ±0.015mm
Cycle Time <8s (Exclude Printing & Cleaning)
Product Changeover <5Min
Air Required 4.5~6Kg/cm2
Power Input AC:220±10%,50/60HZ 1Φ 3KW
Control Method PC Control
Machine Dimensions 1220(L)X1530(W)X1500(H)mm
Machine Weight Approx:1200Kg

Solder Paste Printer Machine for Printed Circuit Board Stencils Printers Description:



1. Scraper system



* the arch bridge is suspended straight and straight

* programmable suspension self-adjusting stepping motor drives the printing head

* four-wheel positioning sliding rail structure of bilateral double-slide block ensures the accuracy and smoothness of operation before and after scraping

* for before and after the squeegee pressure difference required and the stability of the lifting design, to prevent leakage of solder paste and blade clamping design has certain elasticity, squeegee pressure, lifting speed, the printing speed, print scope software is adjustable, and provides customers with a variety of tin under the demoulding ways to adapt to different requirements of PCB, for the customer provides a good platform for the control of printing;

* slide rail scraper system to improve operation stability and prolong service life;

Full closed-loop scraper pressure feedback device, always monitor the pressure of scraper pressure, make the lower tin more full.



2. Steel mesh positioning system



The size of steel mesh has good and wide applicability

The imported SMC cylinder is used as the cylinder.

Embedded scale, never fall off

Segmented fixed steel frame.



3. Image and optical path system



X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive

Internal increase polaroid, automatic accurate grasping different type of the MARK point

Upper, lower and coaxial 3 uniform light source

Japan's Toshiba industrial camera.



4. PCB transportation and positioning system



The inlet direction arbitrary selection, free combination

Special process of inner tooth transport belt, prevent card board

Programmable transport speed control can make the suspension more accurate

Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the complete smooth contact between PCB and steel mesh.



5. Cleaning system



Spray type cleaning

Dry, wet, vacuum-free combination

Separate cleaning structures

Circular cleaning rubber strip

Cleaning fluid, and steel net cleaning paper amount controlled.



6. Platform calibration system



UVW platform structure, high precision, large rigidity and compact structure

Triaxial linkage, small volume, high precision



7. Base and rack system



Solid forming Panasonic motor plus Japan original plant high precision ground wire rod

High rigidity, high stability of left and right symmetrical frame structure.



8. Electrical road system



Safe and concise circuit gas circuit layout

The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.



9. Operating system



Easy to learn easy to use friendly operation interface, with good man-machine dialogue function

The program file has teaching and navigation functions, and every step has a hint

Switch between Chinese and English

It has operation log, fault recording analysis and diagnosis.



10. Other functional options SMTfly-AT.pdf



Automatic point glue function

Automatic scanning function

Automatic add tin function

The whole line closed loop control

Constant temperature and humidity function

Steel mesh plugging function

Other functions can be customized according to customer's actual demand
