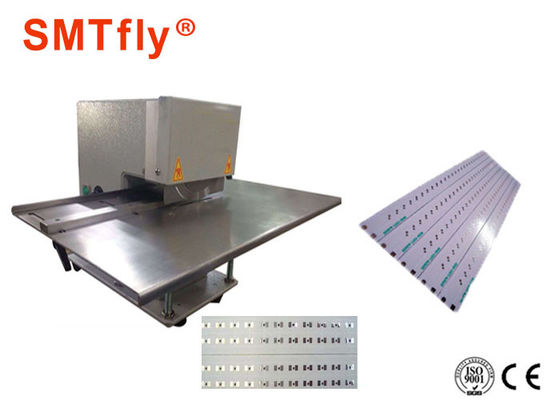

0.8-3.0 Mm V Cut PCB Depaneling Machine For Aluminum Board 220V SMTfly-1SJ
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| The Longest Minimize: | Unlimited | Size: | 500*435*345 |
|---|---|---|---|
| Minimize Thickness: | 0.8-3.0 Mm | Weight: | 20Kg |
| Power: | 220V | Color: | White |
| High Light: | pcb v cutter,pcb v cut machine |
||
0.8-3.0 mm Economical V-Cut Pcb Separator for Alum Board,SMTfly-1SJ Specification:
| Weight(kg): | 20 |
| Cutting Length(mm): | Unlimited |
| V-Cut Speed(mm/s): | 0-400 |
| Blades Shape: | Two Circle Blades |
| V-cut PCB Cutting Thickness()mm: | 0.8-3.0 |
| Voltage And Power(V): | 110/220 |
| Dimensions(mm): | 500*435*345 |
0.8-3.0 mm Economical V-Cut Pcb Separator for Alum Board,SMTfly-1SJ Feature:
- Apply to any V-cut PCB panel;
- Optional separating speed, can be adjusted easily;
- The positioning board can calibration location before and after to suit for different V-CUT clearance panel;
- Can be equipped with long platform,exchange platform simply and easily;
- The inner cutting stress lower than the industrial standard 500μ strain.avoid tin crack ,deformation etc phenomenon;
- The upper circular blade can be vertically adjusted clearance;
- Blades can be reuse many times through regrind.

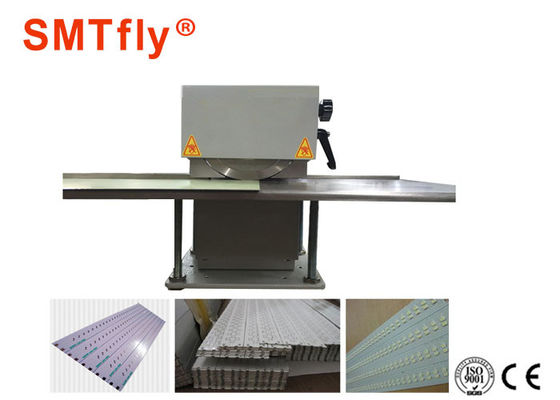

0.8-3.0 mm Economical V-Cut Pcb Separator for Alum Board,SMTfly-1SJ Sample:
