Laser Solder Paste Scanning Tin Auto Soldering Machine Microcomputer + PC Control

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

Laser Solder Paste Scanning Tin Auto Soldering Machine Microcomputer + PC Control

China Laser Solder Paste Scanning Tin Auto Soldering Machine Microcomputer + PC Control supplier
Laser Solder Paste Scanning Tin Auto Soldering Machine Microcomputer + PC Control supplier Laser Solder Paste Scanning Tin Auto Soldering Machine Microcomputer + PC Control supplier

Large Image :  Laser Solder Paste Scanning Tin Auto Soldering Machine Microcomputer + PC Control

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-LSP

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 15-30 working days
Supply Ability: 50Sets/Quarter
Contact Now
Detailed Product Description
Total Power: 600W-1.5KW Visual Positioning System: ±0.003mm
Machining Range: 300*300 Power Supply: 200V 50HZ
Control Mode: Microcomputer+PC Laser Parameters: 10-150W Optional

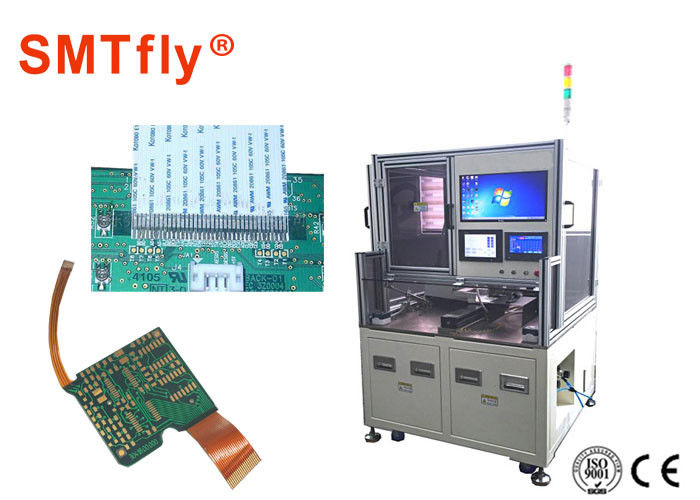

Laser Solder Paste Scanning Tin Soldering Machine,SMTfly-LSP Description:



CCD automatic scanning after the starting point after the puzzle solder paste, laser welding using the disposable whole mirror; solder supply system: the structure of 4 axis horizontal joint manipulator + platform; automatic dispensing system with injection valve (optional) Musashi paste; automatic mount prefabricated welding sheet system: patch mechanism principle (optional).



Laser Solder Paste Scanning Tin Soldering Machine Features:



1. equipped with four axis solder supply system, precise and flexible;

2. coaxial temperature measuring system, output real-time temperature control curve;

3. for FBC and PCB welding, SMD non temperature components, heat sensitive welding advantages, high efficiency, good performance.



Laser Solder Paste Scanning Tin Soldering Machine Benefits at a glance:



1. High precision;

2. Low and localized heat input – Soldering of temperature-sensitive components;

3. Fast power controllability;

4. Optimized temperature-time profile for best soldering results – The soldering;

5. temperature can be regulated according to a pre-set temperature-time profile;

6. Non-contact processing for joining in spaces with limited accessibility;

7. Processing of metallic workpieces of very small geometries;

8. Efficient and homogenous heat input;

9. No risk of damaging adjacent components.



Laser Solder Paste Scanning Tin Soldering MachineSpecification:



Entry Name Technical Parameters
Machine Model SMTfly-LSP
Power Supply 200V 50HZ
Total Power 600W-1.5KW(configuration selection)
Laser Parameters 10-150W optional
Wave Length 808,980,1064,1070 Optional
Control Mode Microcomputer+PC Image Processing
Visual Positioning System ±0.003mm
Machining Range 300*300 can be processed more than 0.15 pitch
Tin Plating Mode Prefabricated tin,Point solder paste,Optional
Size L1000*W1000*H1700mm



Where conventional soldering techniques reach their limits:



Laser soldering is often applied as selective laser soldering. Selective soldering processes are used in applications where other conventional selective soldering techniques reach their limits. These limits can be for example defined by temperature-sensitive components. The transfer of heat and energy through the laser beam provides the user with many advantages, especially with view to the miniaturization of sub-assemblies or sensitive components.

During the soldering process, the filler metal or alloy is heated to melting temperatures < 450°C by laser. Therefore lasers with lower output powers (typically < 100 Watts) are used to melt the wire material, soldering paste or solder deposits so that it flows in between the two closely fitted joining materials.

For soldering small parts or components within the semiconductor, electronic or optoelectronic device manufacturing or assemblies industry, the diode laser is the right choice. Diode lasers are used for selective soldering because the laser power can be precisely controlled by an analog signal and the heat input into the material is very localized. That is why laser soldering is most advantageous, compared to traditional soldering methods. The process does not damage or input heat into nearby components. That is why even very small electronic components, in the range of a few tenths of a millimeter, as well as heat sensitive electronic parts can be processed.

Fast power controllability combined with a non-contact temperature measurement to minimize thermal damage make the diode laser an ideal tool for this application.

Conventional selective soldering techniques, such as e.g. the soldering iron, need a direct mechanical contact between the soldering tool and the solder joint, or the soldering tool has to be very close to the solder joint. Yet, in many cases, this is not possible due to a lack of space. Furthermore, within conventional selective soldering processes, the energy input is either not or is very slowly able to be influenced during the soldering process.



Application:

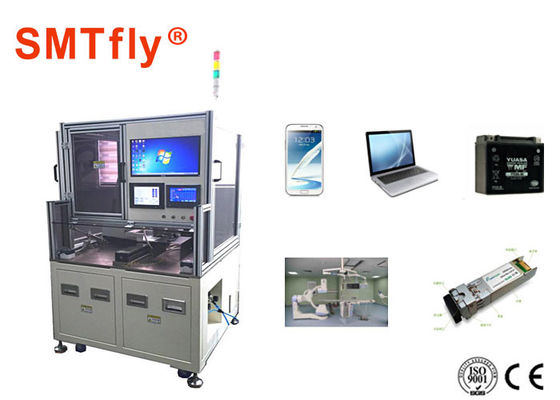

Communications, military, aerospace, automotive electronics, medical equipment, mobile phones and so on.



By the way, if you're interested in it,please contact us,we'll try our best to help you and send you video for your reference.
