|Precision Position:||0.1mm||Cutting Range:||330*330mm(S)|
|Servo Control:||Fuji Servo||Airspeed:||60m/min|
|Cutting Speed:||0-100mm/s||Suction Air Pressure:||195mm-Ag|
pcb router machine,
pcb cnc machine

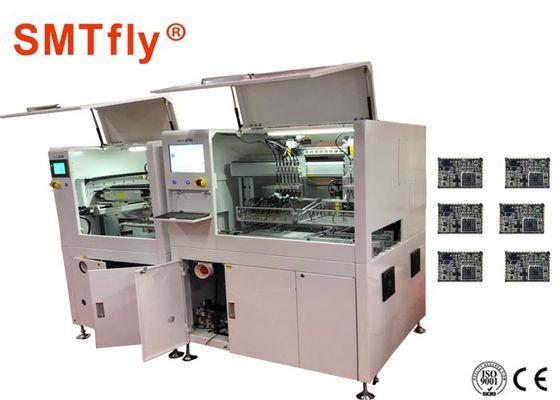

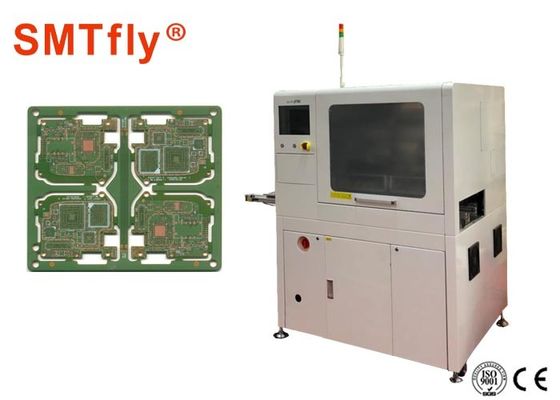

0.1mm Precision Position PCB Inline Router Machine for Cutting PCB Separation SMTfly-F05 Feature:
The machine series is mainly an on-line sub-board equipment, which uses a milling cutter to run at a high speed.
Pre-edit path trajectories are segmented to avoid manual breaks, V-CUT or PUSH cutting, and increase production
Product quality, reduce scrap rate, this machine uses human-machine interface WIN7 operating system, and is equipped with high-pixel CCD vision
System, teaching production and editing to modify the cutting path is very fast, can be single-step and overall modification, deletion, addition
Program track. This model adopts follow-up dust removal and double gripping at the same time, which improves the dust removal ability and grasping and releasing.
(1) Vision System
1.Mark positioning correction
Mark positioning correction function is based on computer image processing, which is performed on the PCB placed on the processing table.
Positioning correction to achieve higher cutting accuracy, and for the multi-panel PCBA, only one piece is made
PCBA cutting program and Mark reference position, other PCBA can be corrected according to the teaching board after Mark correction
Cutting to improve cutting accuracy;
2 Image zoom assist teaching
When the image is reduced, the field of view is increased, which is beneficial for program editing to quickly find a point. When the image is enlarged, the field of view is reduced.
Conducive to precise alignment.
3 Edge positioning cutting function (optional)
The edge-cutting is performed by using the CCD to first position the cutting position and find the precise cutting edge.
The lower cutting point greatly reduces the degree of unevenness of the edge of the product during cutting and improves the cutting precision.
(2)Tool Monitoring System
For the PCBA thickness, the tool can be set to use the segment length and the tool single segment cutting distance, that is, the same
The milling cutter can be used in several stages. After cutting a certain distance, another section is used to improve the cutting efficiency and reduce the cutting efficiency.
Use less consumables and make full use of the tools;
2.Broken knife detection
The equipment is equipped with a broken knife slide detection sensing device to cut off the tool during the machining process, the tool slips, etc.
Abnormal conditions are monitored, and the detection frequency can be set as needed to protect PCBA from tools
Abnormal and damaged, can also prompt the operator equipment abnormalities.
3.Automatic tool change function
Countertop device 1~8 tool change slots, automatic tool change can be performed when the tool is abnormal, which improves production efficiency and reduces
(3) Double gripping at the same time
The Carry module is equipped with two grippers, Z1 and Z2, which can be taken while removing the finished daughter board.
The main board of the front-end area to be processed also puts down the board to be processed when the processed sub-board is lowered.
(4) Track memory / auto-width adjustment
This model can automatically record the track width according to the type of machine technology. It can be adjusted automatically when this model is turned on.
Front and rear track width.
For array-style board PCBA, sub-board can be used under the premise of making a sub-board program
The sequence is copied out of the matrix array program, that is, the entire slab is processed to cut the trajectory, which greatly reduces the program editing time.
High line change efficiency.
0.1mm Precision Position PCB Inline Router Machine for Cutting PCB Separation Specification:
|XYZ itinerary||450*600*60mm (S)|
|Router||Min 0.8mm,max 3.0mm|
|Shape of Cutting||Line,L shape,Square,Round,Arc|
|Spindle motor||Imported from Germany|
|Host control||Industrial computer|
|Servo control||Fuji servo|
|Static elimination||SMC Ion generator|
|Vacuum method||Under vacuum|
|Track width adjustment||Automatic|
|Into board direction||Left in right out|
|Entry and exit method||Vacuum suction|
|HMI||12 inch industrial capacitive screen|
|Operation Environment||Win 7|
|Dust filtration||Secondary filtration|
0.1mm Precision Position PCB Inline Router Machine for Cutting PCB Separation Optional Dust Collector:
Dust collector (mainly used to collect dust generated during cutting). Its main power supply is 3-phase AC
220V/AC380. Confirm the motor running direction after power-on. The dust that is cut will fall into the dust concentration,Users can collect and do centralized processing.
