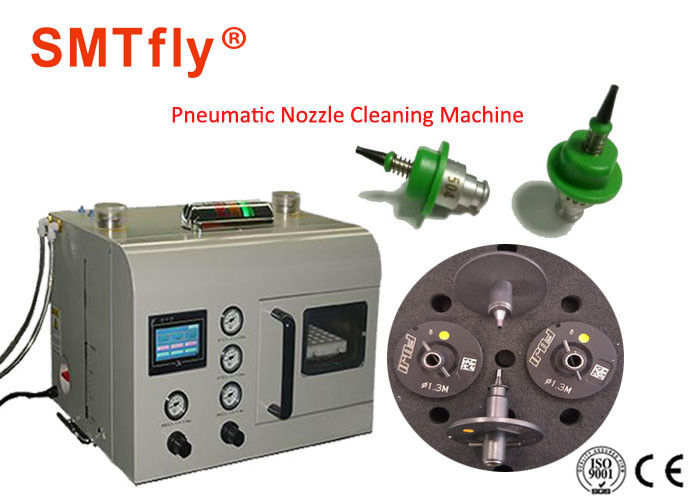

0.4Mpa SMT Stencil Cleaner , High Efficiency Nozzle Cleaning Machine Low Noise

Large Image : 0.4Mpa SMT Stencil Cleaner , High Efficiency Nozzle Cleaning Machine Low Noise

Product Details:

Place of Origin:	China
Brand Name:	SMTfly
Certification:	CE ISO9001
Model Number:	SMTfly-36

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Price:	USD1/Set
Packaging Details:	plywood case
Delivery Time:	7-15 working days
Supply Ability:	30Set/Month

Contact Now

Detailed Product Description

Plug:	3-Pin	Consumes Liquid:	≤300cc/h(5cc/min)
Drainage Tank:	￠8tubes	Air pressure:	Compressed Air
Intake trachea:	￠12 Tubes	Storage tank capacity:	1200cc
High Light:	smt stencil cleaner , nozzle cleaning machine

0.4Mpa SMT Nozzle Cleaning Machine for 1200cc Storage Tank Capacity Nozzle Cleanear,SMTfly-36 Specification:

Air pressure	Air pressure	Compressed air
	Intake pressure setting	0.5～0.55MPa
	Injection pressure setting	0.35～0.38MPa
	Nozzle injection pressure	≤0.4MPa
	Consumption of gas	≤260Nl/min
tube	Intake trachea	￠12 tubes
tube	Drainage tank	￠8tubes
Cleaning fluid	Cleaning fluid	Industrial deionized water
	Consumes liquid	≤300cc/h(5cc/min)
	Storage tank capacity	1200cc
power supply	power supply	AC220～240V
	plug	3-Pin
	Consume electricity	≤0.1Kw
surroundings	Working temperature	-5～ (But not frozen)
	Liquid temperature	0～ (But not frozen)
	Working environment humidity	10～60%RH
	Equipment placed in the environment humidity	10～60%RH
	dust	0.1mg/m³(There is no conductive dust)
	Corrosive gases	Not allowed
other	Dimensions	655(L) x 560(W) x 475(H)
other	weight	～(Contains cleaning solution2000cc)

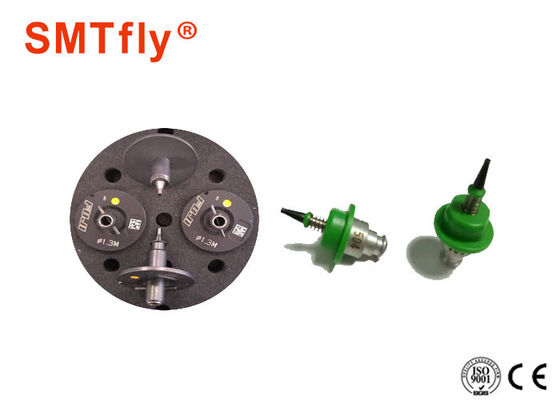

0.4Mpa SMT Nozzle Cleaning Machine for 1200cc Storage Tank Capacity Nozzle Cleanear:

Contrast with traditional cleaning :

1. Artificial wind guns

① Manual cleaning efficiency is low, the nozzle surface and the lumen can not be cleaned, the hole with a steel wire stabbed easily damaged;

② Cleaning effect difference;

③ The use of cleaning fluid and alcohol may penetrate to cause the reflective layer to fall off.

2. Ultrasonic cleaning

① Low cost and high efficiency;

② Cleaning process can easily lead to collision

between the nozzle, resulting in damage to the surface

of the black coating or fall off;

③ Cleaning fluid on the nozzle surface coating damage, greatly reducing the use of nozzle life;

④ Can not completely clean the nozzle surface and lumen;

⑤ For the latest 01005 and 0201 nozzle can not be a

good cleaning, mainly due to the nozzle hole is too small, ultrasonic cleaning can cause vacuum bubbles can not be discharged and cleaning is not clean.

3. Economic benefits:
① Reduce the purchase cost of the nozzle;
Use CW-36 washing machine can be a good solution to the nozzle dirty and scrapped, so as to extend the service life.
② Reduce unnecessary labor;
As the machine uses automatic cleaning, so no special person responsible for all the machine automatically completed the entire process.
③ Effectively reduce the product defect rate, improve SMT productivity;
A large part of the production process is due to the dirty surface of the nozzle and the cavity is too dirty caused by throwing or placement of displacement, resulting in poor order after welding. After using the washing machine can make the nozzle always protect the new state, greatly improve the production efficiency.

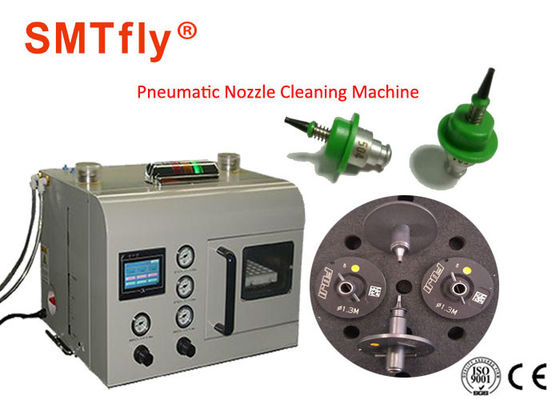

SMT Nozzle Cleaning Machine for 1200cc Storage Tank Capacity Nozzle Cleanear,SMTfly-36:
