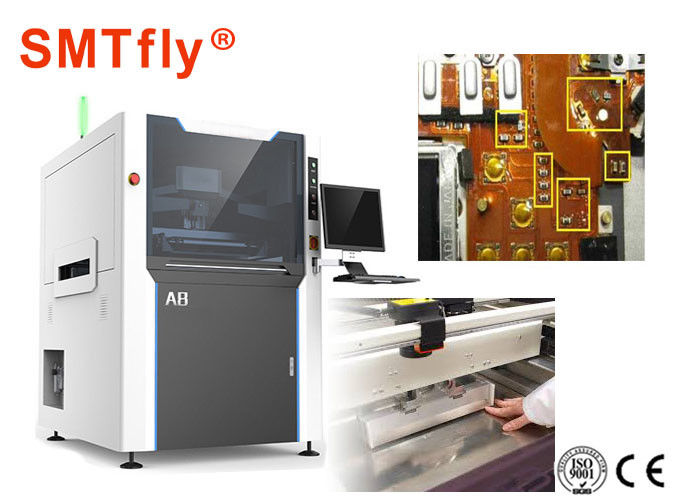

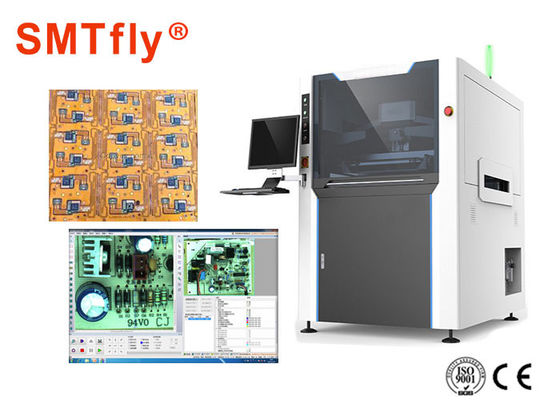

High Precision Solder Paste Printing Machine For PCB Assembly With Stencil
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cycle Time: | <7s (Exclude Printing & Cleaning) | Product Changeover: | <5Min |
|---|---|---|---|
| Squeegee Pressure : | 0~15Kg | PCB Thickness: | 0.4~6mm |
| PCB Min Size PCB Max Size : | 50X50mm | PCB Max Size: | 460*340mm |
| Squeegee Speed : | 6~200mm/sec | Squeegee Angle : | 60°/55°/45° |
| High Light: | solder paste inspection equipment,solder paste inspection system |
||
Solder Paste Printer Machine-Precision Printing for PCB Assembly with Stencil,SMTfly-A8 Description:
1. Platform calibration system
UVW platform structure, high precision, large rigidity and compact structure
Triaxial linkage, small volume, high precision
2. Base and rack system
Solid forming Panasonic motor plus Japan original plant high precision ground wire rod
High rigidity, high stability of left and right symmetrical frame structure.
3. Electrical road system
Safe and concise circuit gas circuit layout
The circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.
4. Operating system
Easy to learn easy to use friendly operation interface, with good man-machine dialogue function
The program file has teaching and navigation functions, and every step has a hint
Switch between Chinese and English
It has operation log, fault recording analysis and diagnosis.
5. Other functional options
Automatic point glue function
Automatic scanning function
Automatic add tin function
The whole line closed loop control
Constant temperature and humidity function
Steel mesh plugging function
Other functions can be customized according to customer's actual demand.
Solder Paste Printer Machine-Precision Printing for PCB Assembly with Stencil Specificaiton:
| Machine | |
| Repeat Position Accuracy | ±0.008mm |
| Printing Accuracy | ±0.02mm |
| Cycle Time | <7s (Exclude Printing & Cleaning) |
| Product Changeover | <5Min |
| Air Required | 4.5~6Kg/cm2 |
| Power Input | AC:220±10%,50/60HZ 1Φ 3KW |
| Control Method | PC Control |
| Machine Dimensions | 1220(L)X1355(W)X1500(H)mm |
| Machine Weight | Approx:1000Kg |
| Model | SMTfly-A8 | ||
| Item | |||
| Screen Frames | Min Size | 470X370mm | |
| Max Size | 737X737mm | ||
| Thickness | 25~40mm | ||
| PCB Min Size | 50X50mm | ||
| PCB Max Size | 460*340mm | ||
| PCB Thickness | 0.4~6mm | ||
| PCB Warpage | ＜1% | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Transport Speed | Max 1500mm/S Programmable | ||
| Board Location PCB |
Support System | Magnetic Pin/Up-down table adjusted/support block by hand Magnetic thimble/adjustable jacking platform/ contour block |
|
| Clamping System | side clamping, vacuum nozzle, | ||
| Print head | Two independent motorised print heads | ||
| Squeegee Speed | 6~200mm/sec | ||
| Squeegee Pressure | 0~15Kg | ||
| Squeegee Angle | 60°/55°/45° | ||
| Squeegee Type | Stainless steel(Standard), plastic | ||
| Stencil Separation Speed | 0.1~20mm/sec Programmable | ||
| Cleaning System | Dry,Wet,Vacuum (Programmable) | ||
| Table Adjustment ranges | X:±10mm;Y:±10mm;θ:±2° | ||
Solder Paste Printer Machine-Precision Printing for PCB Assembly with Stencil Application:
