SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report

China SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report supplier
SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report supplier SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report supplier

Large Image :  SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE
Model Number: SMTfly-V850

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 20Sets/Month
Contact Now
Detailed Product Description
SPC: Offline SPC Support SPC Report: Anytime Report
PCB Thickness: 0.3mm~4.5mm Power: AC220V±10%, 50/60Hz,1200W
Travel Speed: 700mm/s Repeat Ability: <1μm@3sigma



SMT SPI Used for Inspecting PCB with Solder Paste Inspection Machine,SMTfly-V850 Features:



High-precision control platform



The motion platform adopts servo motor and high-precision ball screw structure, and the motion is high-speed, smooth, vibration-free and noise-free.

High-precision grating scale with full closed loop feedback system.



High-definition, high-speed camera



Ultra-high frame rate industrial cameras with industrial lenses for extremely high shooting speeds; self-developed

RGB three-color light source, can realize 3D, 2D true color map, display effect is extremely close to real object;

Utilizing GPU massively parallel technology greatly improves the speed of operation and detection.



Ultra High Frame Rate Industrial Camera with Industrial Lens



Comprehensive and detailed SPC analysis system



SPC is the use of statistical methods for the process of the various stages of process control, through the analysis of test information feedback, to promote the improvement of the process before the process, in order to achieve the prevention of bad.

The operator can intuitively view the comprehensive statistics of test information through a pie chart or a bar chart.

Statistical information can be output in formats such as Html, Excel, or Image.



True color three-dimensional image



Phase Modulation Profilometry (PMP) is based on sinusoidal motion projection of structured gratings.

Discrete phase shift to obtain multiple illuminated object light field images, and then calculated according to multi-step phase shift method.

Out of the phase distribution, the final use of triangulation and other methods to obtain a high-precision object shape.

Contour and volume measurements. True color three-dimensional image display.



Red glue detection



This device, in addition to supporting common 3D solder paste inspection, can also detect red rubber process at the same time, supporting missed printing, overflowing plastics, multiple adhesives, and low adhesives, etc., and displaying full-color defective image. Positioning.



Bare-board learning programming



No Gerber and CAD files are required, as long as a bare board is provided, automatic learning programming can be realized. The software automatically extracts the detection frame data, and the user edits it appropriately, and sets detection parameters and allowable values.



Automatic plate bend compensation



The three-dimensional plate bending compensation technique is used to perform surface fitting on the discrete reference points in the FOV to perform real-time compensation during the detection process. There is no need to move the Z axis and the detection speed is faster.



Camera barcode recognition



The camera can automatically identify the bar code (one-dimensional/two-dimensional) of the inspection surface on the PCB to facilitate traceability of product quality.

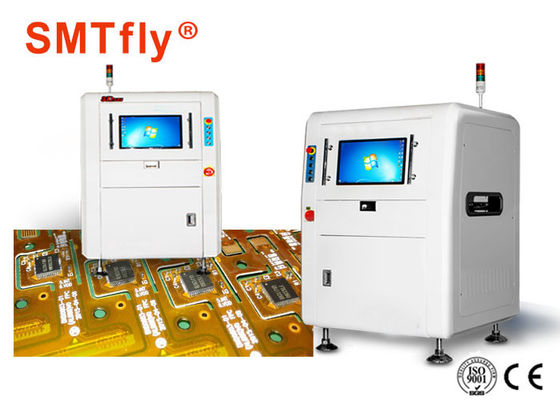

SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report              SMT SPI Solder Paste Inspection Machine For Inspecting PCB Anytime Report



Offline programming and debugging



The remote programming can be done by using offline programming software to import Gerger, CAD, etc. The programming time does not exceed 5 minutes.



SMT SPI Used for Inspecting PCB with Solder Paste Inspection Machine,SMTfly-V850 Specification:



Category Item Specifications
Mechanical System PCB Transfer System Substrate fixing method: bottom-up fixing; automatic access plate and automatic width adjustment system, conforming to SMEMA standard; track height: 900±20mm
  PCB size 50mm*50mm ~ 330mm*250mm (can be customized according to customer specific requirements larger size) Another 460mmX510mm size optional
  PCB thickness 0.3mm~4.5mm
  Plate bending compensation <2mm
  X, Y Platform Drive Equipment



AC Servo Motor System

    Positioning accuracy <1μm
    Travel speed 700mm/s
Control System Computer Host Industrial Control Computer: Intel High-end quad-core CPU, 8GDDR memory, 1T hard disk
  Display output 19-inch widescreen LCD monitor
Other parameters Mechanical dimensions (length * width * height) 100cm*100cm*155cm (high with feet without signal)
  Weight 710 kg
  Power AC220V±10%, 50/60Hz, 1200W
  Air source 4-6bar
  Working environment Temperature 10-40°C, Humidity 30-80%RH
