29*29mm FOV Solder Paste Inspection Machine For SMT Production Line Red Glue Detection

China 29*29mm FOV Solder Paste Inspection Machine For SMT Production Line Red Glue Detection supplier
29*29mm FOV Solder Paste Inspection Machine For SMT Production Line Red Glue Detection supplier 29*29mm FOV Solder Paste Inspection Machine For SMT Production Line Red Glue Detection supplier

Large Image :  29*29mm FOV Solder Paste Inspection Machine For SMT Production Line Red Glue Detection

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE
Model Number: SMTfly-V700

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 20Sets/Month
Detailed Product Description
Travel Speed: 700mm/s Air Source: 4-6bar
Drive Equipment: AC Servo Motor System Operating System: Windows 7
Interface Display: 2D/3D Color Map SPC Report: Anytime Report
Weight: 75Kg Color: White
High Light:

smt stencil printer

,

solder paste stencil printer

29*29mm FOV SPI - 3D Solder Paste Inspection | Machines for SMT Line,SMTfly-V700​ Features:



Red glue detection



This device, in addition to supporting common 3D solder paste inspection, can also detect red rubber process at the same time, supporting missed printing, overflowing plastics, multiple adhesives, and low adhesives, etc., and displaying full-color defective image. Positioning.



Bare-board learning programming



No Gerber and CAD files are required, as long as a bare board is provided, automatic learning programming can be realized. The software automatically extracts the detection frame data, and the user edits it appropriately, and sets detection parameters and allowable values.



Automatic plate bend compensation



The three-dimensional plate bending compensation technique is used to perform surface fitting on the discrete reference points in the FOV to perform real-time compensation during the detection process. There is no need to move the Z axis and the detection speed is faster.



SPI - 3D Solder Paste Inspection | Machines for SMT Line,SMTfly-V700 Specification:



Category Item Specifications

















Inspection System

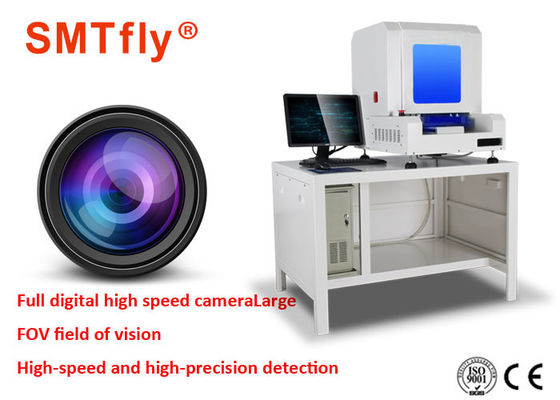

Camera Full digital high speed CCD camera, 5 million pixels
Light source Ring LED light source
FOV 29mm*29mm(18μm)
Processing time per picture <0.6s
Test content Paste printing / red plastic printing: volume, area, height, shape, offset, continuous tin, overflow glue
Defect Types Yes, Offset, Multi-Tin, Less Tin, Continuous Tin, Tip, Collapse, Alien, Gold finger, Insufficient Height, Height Exceeded, Overfill, Insufficient, etc.
Paste height range 30~400um
Paste size range 0.15mm×0.15mm~10mm×10mm
Height detection accuracy 1μm (based on actual solder paste and 3D correction block)
Repeat ability (volume/area/height) <1μm@3sigma
Repeat ability & Reproduce ability <10%

























Software System

Operating System Windows 7











Identification System

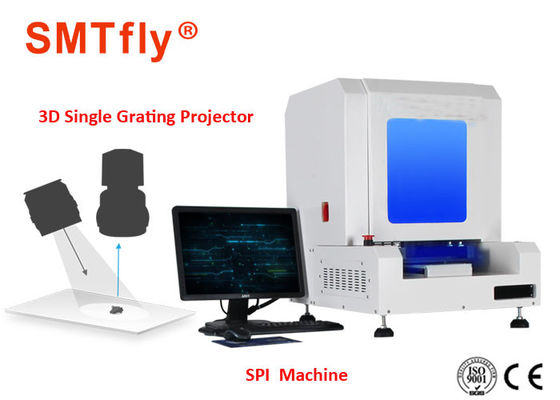

Features 3D bidirectional raster projection head (single head optional), no shadow 3D detection
Operational interface Graphical programming, easy operation, switchable English, traditional and simplified systems
Interface display 2D/3D color map
MARK can select 2 common Mark points, multi-Mark function can be selected in the puzzle, and Bad Mark function is supported
Programming Support Gerber, CAD import, support offline programming and manual programming
SPC Offline SPC Support
SPC Report Anytime Report
Histogram/control chart Volume,area, height, offset
Exportable Content

Reports (Excel), Pictures (jpg, bmp)



Mechanical System PCB Transfer System Substrate fixing method: bottom-up fixing; automatic access plate and automatic width adjustment system, conforming to SMEMA standard; track height: 900±20mm
PCB size 25mm*60mm~250mm*300mm (Customized)
PCB thickness 0.3mm~3mm
Plate bending compensation <1mm
X, Y Platform Drive Equipment



AC Servo Motor System

Positioning accuracy <1μm
Travel speed 700mm/s
Control System Computer Host Industrial Control Computer: Intel High-end quad-core CPU, 8GDDR memory, 1T hard disk
Display output 19-inch widescreen LCD monitor
Other parameters Mechanical dimensions (length * width * height) 82cm*65cm*76cm
Weight 75 kg
Power AC220V±10%, 50/60Hz, 450W
Air source 4-6bar
Working environment Temperature 10-40°C, Humidity 30-80%RH
