Depression(Pa): 4~5kg/cm2 Working Size: 380*380*80mm
Welding Pressure: 1-10KG Tem. Setting: 0-550℃
Color: White Weight: 60KG

Printed Circuit Boards PCB Robotic Soldering Machine,SMTfly-411​ Feature:


1. Heating rate could be adjustable for different products;
2. Long life time thermode made of titanium alloy, ensure even temperature, fast raising;
3. Thermode designed to be horizontal adjustment, ensure even component compression;
4. Numerical control temperature, clear and precise;
5. Has digital manometes, preset pressure range;
6. Controlled by precise PID, phasc-angle driving;
7. Less vibration,less noise,voltage does not fluctuate;

8. Welding head made of molybdenum alloys, good heat transfer coefficient, abrasion - resistant.



Printed Circuit Boards PCB Robotic Soldering Machine,SMTfly-411​Specification:



Size: 815mmX600mmX880mm
Operating Condition: 10-60℃, 40%-95%
Working size: 380*380*80mm
Welding Pressure: 1-10KG
Power: AC220V±10% 50HZ 2300W
X axis moving range: X=380mm
Y axis moving range: Y=380mm
Z/R axis moving range: Z=80mm R=360°
Repeatability precision(X/Y): ±0.02mm
Repeatability precision(Z): ±0.02mm
Repeatability precision(R): ±0.05°
Depression(Pa): 4~5kg/cm2
Soler wire range: Φ 0.6mm~Φ 1.2mm
Tem. setting: 0-550℃
Tem. control precision: ±1℃



Printed Circuit Boards PCB Robotic Soldering Machine​ Detailed Description:


1. multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),to achieve the 3D space arbitrary solder accurate location.


2. The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job.


3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and professional requirements, the realization of human editing operations.


4. Various of welding way, support spot welding and drag welding, all parameters is setted up by user,
meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved together with welding point coordinates, achieve flexible soldering.


5. Welding set arbitrary angle & direction is available, R axis controlled welding set,could be rotated 360
degrees freely.Setting feeding times, pre-heating time, and welding time according to different pads and parts,achieve complex soldering with a variety of soldering points.


6. Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions.Intelligent main control program realizes automation and intelligence.



After soldering samples picture for your reference:

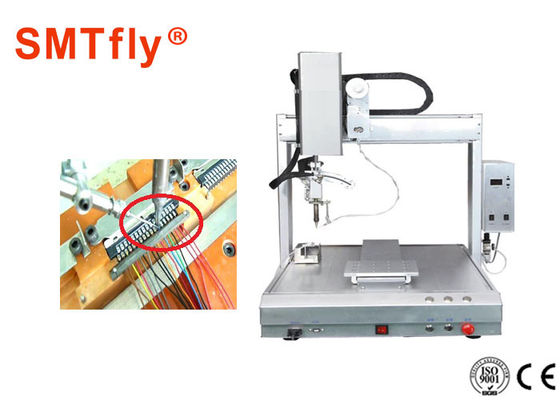

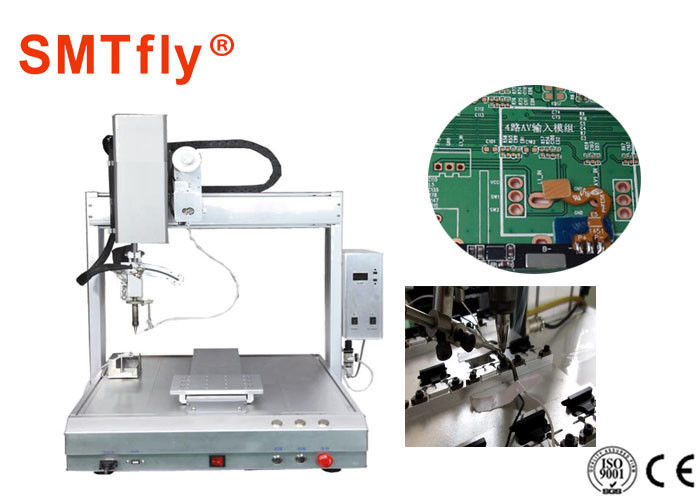

Printed Circuit Boards Robotic Selective Soldering Machine PID Controlled SMTfly-411
