0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411

China 0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411 supplier
0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411 supplier 0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411 supplier

Large Image :  0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-411

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: wooden case
Delivery Time: 7-15 working days
Supply Ability: 100Sets/Month
Contact Now
Detailed Product Description

0.02mm Precision PCB Robotic Soldering Robot for Welding Circuit Board,SMTfly-411​ Specification:



Size: 815mmX600mmX880mm
Operating Condition: 10-60℃, 40%-95%
Working size: 380*380*80mm
Welding Pressure: 1-10KG
Power: AC220V±10% 50HZ 2300W
X axis moving range: X=380mm
Y axis moving range: Y=380mm
Z/R axis moving range: Z=80mm R=360°
Repeatability precision(X/Y): ±0.02mm
Repeatability precision(Z): ±0.02mm
Repeatability precision(R): ±0.05°
Depression(Pa): 4~5kg/cm2
Soler wire range: Φ 0.6mm~Φ 1.2mm
Tem. setting: 0-550℃
Tem. control precision: ±1℃



0.02mm Precision PCB Robotic Soldering Robot for Welding Circuit Board Feature:


1. Heating rate could be adjustable for different products;
2. Long life time thermode made of titanium alloy, ensure even temperature, fast raising;
3. Thermode designed to be horizontal adjustment, ensure even component compression;
4. Numerical control temperature, clear and precise;
5. Has digital manometes, preset pressure range;
6. Controlled by precise PID, phasc-angle driving;
7. Less vibration,less noise,voltage does not fluctuate;

8. Welding head made of molybdenum alloys, good heat transfer coefficient, abrasion - resistant.



​ 0.02mm Precision PCB Robotic Soldering Robot for Welding Circuit Board Application:

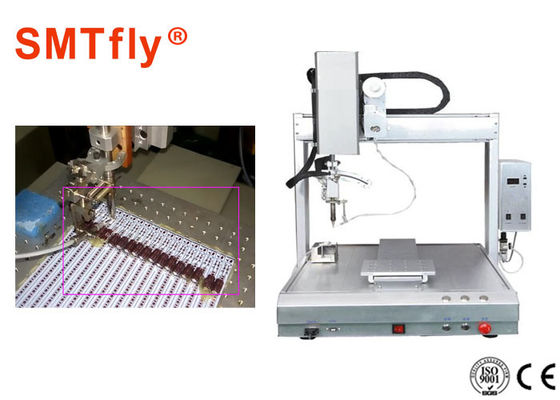

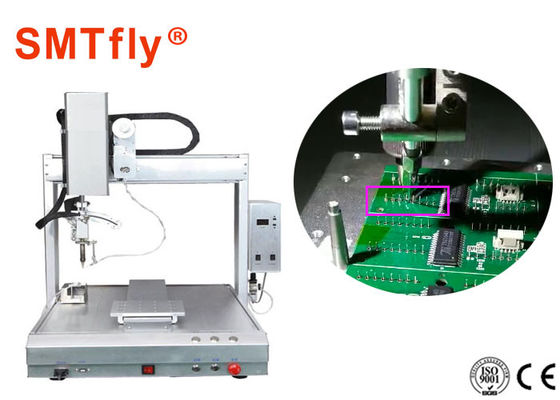

0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411              0.02mm Precision PCB Robotic Soldering Machine For Welding Circuit Board SMTfly-411
