Dual Table Customized Robotic Soldering Machine For PCB SMTfly-412 Long Life Time

China Dual Table Customized Robotic Soldering Machine For PCB SMTfly-412 Long Life Time supplier
Dual Table Customized Robotic Soldering Machine For PCB SMTfly-412 Long Life Time supplier Dual Table Customized Robotic Soldering Machine For PCB SMTfly-412 Long Life Time supplier

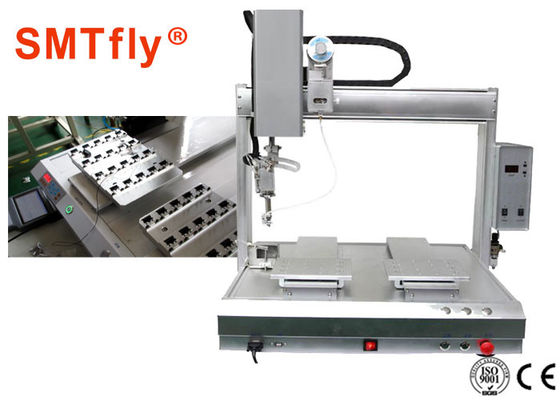

Large Image :  Dual Table Customized Robotic Soldering Machine For PCB SMTfly-412 Long Life Time

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-412

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: wooden case
Delivery Time: 7-15 working days
Supply Ability: 100Sets/Month
Contact Now
Detailed Product Description
Operating Condition: 10-60℃, 40%-95% Heating Time: 1-99.9s
Depression(Pa): 0.45-0.70Mpa Welding Pressure: 1-10KG
Thermode: Customize Color: Silver Gray
High Light:

point soldering machine

,

robotic soldering equipment

Dual Table Customized Robotic Soldering Machine for PCB,SMTfly-412 Specification:



Size

850mmX600mmX880mm

Operating Condition

10-60℃, 40%-95%

Working size

X=480mm, Y1=280mm, Y2=280mm, Z=80mm

Welding Pressure

1-10KG

Power

AC220V±10% 50HZ,2300W

Max speed

X/Y=600mm/s; Z=400mm/S; R=300°/sec

Repeat precision

±0.02mm (X, Y, Z)

Depression(Pa)

0.45-0.70Mpa

Heating time

1-99.9s



Dual Table Customized Robotic Soldering Machine for PCB Feature:



1. Heating rate could be adjustable for different products

2. Long life time thermode made of titanium alloy, ensure even temperature, fast raising

3. Thermode designed to be horizontal adjustment, ensure even component compression

4. Numerical control temperature, clear and precise

5. Has digital manometes, preset pressure range

6. Controlled by precise PID, phasc-angle driving

7. Less vibration,less noise,voltage does not fluctuate

8. Welding head made of molybdenum alloys, good heat transfer coefficient, abrasion - resistant.



Dual Table Customized Robotic Soldering Machine for PCB Detailed Description:



1. multi-axis robot, all using precision stepper motor drive and advanced motion control algorithms, effectively raising

campaign end (tip) of the positioning accuracy and repeatability (automatic homing no cumulative error),

to achieve the 3D space arbitrary solder accurate location

2. Th hi d t b dd di d t The machine adopts embedded industrial computer control, you can select a single point/single/circulation solder job

3. simple and convenient way of programming, you can directly enter coordinates joints can teach reproduce solder

joint position coordinates. Teach programming is simple to operate, without mechanical preparation areas of

expertise hand program so beginners can quickly master the operation essentials. Simple teach pendant can guide

the movement of the end (tip) to reach any spot position in 3D space, the operator is no special technical and

professional requirements, the realization of human editing operations.

4.Various of welding way, support spot welding and drag welding, all parameters is setted up by user,

meet high difficult welding and micro soldering requirements. All soldering parameters could be read and saved

together with welding point coordinates, achieve flexible soldering

5. Welding set arbitrary angle & direction is available, R axis controlled welding set,could be rotated 360

degrees freely.Setting feeding times, pre-heating time, and welding time according to different pads and parts,

achieve complex soldering with a variety of soldering points

6. Realizes real-time peripheral devices by 1/0 USB, has error alarm and high speed motion program functions.

Intelligent main control program realizes automation and intelligence.

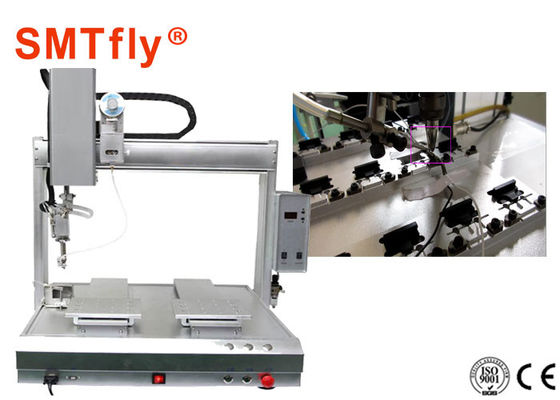

Dual Table Customized Robotic Soldering Machine for PCB Sample:

Dual Table Customized Robotic Soldering Machine For PCB SMTfly-412 Long Life Time
