3.0KW PCB V Groove Cutting Machine , 220V Cnc V Grooving Machine TBI/THK Screw

China 3.0KW PCB V Groove Cutting Machine , 220V Cnc V Grooving Machine TBI/THK Screw supplier
3.0KW PCB V Groove Cutting Machine , 220V Cnc V Grooving Machine TBI/THK Screw supplier 3.0KW PCB V Groove Cutting Machine , 220V Cnc V Grooving Machine TBI/THK Screw supplier 3.0KW PCB V Groove Cutting Machine , 220V Cnc V Grooving Machine TBI/THK Screw supplier

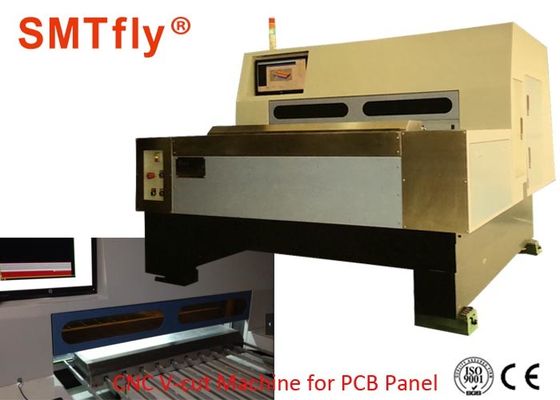

Large Image :  3.0KW PCB V Groove Cutting Machine , 220V Cnc V Grooving Machine TBI/THK Screw

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-3A1200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
Working Speed: 70m/min(max) Working Accuracy: ±0.05mm
V Knife Number: 1(standard)-4(optional) Working Thickness: 0.3-3.2mm
Servo: Japan/China Screw: TBI/THK
Use: One Or More FR4 Or Aluminum Panel At The Same Time Color: White



220V PCB V Groove Machine-0.05mm CNC V Cut For Making V-cut Line On PCB Panel Features:



  • According to PCB / MCPCB automatic V-CUT machine characteristics involving multiple disciplines, building PCB / MCPCB automatic V-CUT machine digital prototyping system that uses multidisciplinary joint design and simulation in the design stage of the product's features and performance for checking and testing, product performance to meet the design targets, resolve conflicts and interference between the various disciplines to achieve optimal coupling, which will greatly improve the product quality and system performance.
  • All of the base of the machine using the "Tarzan Qing" or "Jinan Qing" granite, and force the elimination of experience, strong rigidity, good stability.
  • X Y Z axis positioning drive using imported high-performance AC servo motor drive, to achieve a high-speed high-precision positioning and effectively increase productivity.
  • Precision Transmission and guiding system: imported precision linear guide and precision ball screw, high precision gear, location.
  • With dagger functions for complex PCB / MCPCB jump knife Processing.
  • Available for high-precision machining for various sizes of V-groove board 0.4 ~ 3.2mm different thickness of boards.
  • The first knife into the center of the nail PIN 4.5mm above the minimum reserve.
  • The minimum diameter of a knife grinding 114MM, the highest tool life.
  • Using WINDOWS Chinese operation interface, as data processing and item number management.
  • Suitable for single and double sided, multilayer, forming the front surface of the aluminum plate board use.
  • During V-CUT processing, with automatic gauge control, residual thickness detection function.
  • Japan's imports of high-speed spindle motor, V groove cut no edges, longer tool life.
  • Use intelligent control systems, uninterrupted, stable operation, easy to difficult to fault repair.
  • Knives, knife deep graphical numerical control, high precision, easy to learn, easy to set up the whole.
  • Enter the information at the same time having AB, artificial steering, primary processing.
  • Available (optional) highly efficient dust collection system, which can be kept clean workshop environment.



CNC V Cut Machine V Groove Machine V Cut PCB Routing Line on PCB Panel Configuration Parameters:



Item

Parameter

Remark

Size

1900 × 2280 ×1585mm

L*W*H

Working Height

920±50mm



Weight

3000kg



Power Supply

AC 220V,50/60HZ



Capacity

3.0KW



Air Pressure

5kg/cm2



Working Platform

Max:1550mm*630mm



Thickness

0.3~3.2mm



Blade spec

Outer Dia:φ120mm Inner Dia:φ25.4mm



Positioning Dowel

Dia:2MM(7PCS)



Min Distance between the first V score line & Pin hole

4.5MM



Blade thickness

2mm



V-groove Residual thickness accuracy

±2mil



V-groove Pitch accuracy

±2mil



V-groove Parallel precision

±2mil



Blade Cutting Speed

6,000R.P.M.



Cutting Speed

0~50m/min



Displace Speed

Max 70M/MIN



Dust Collector

2in plumbing 3.5KW





Machine Accessory:



Accessory

Brand

Place of Origin

Remark

Guide Rail

PMI

Taiwan



Guide Screw

TBI

Taiwan



Servo Motor

Fuji Electric

Japan



Spindle motor

Fuji Electric

Japan



PC

HP

China

HP 19” Business Computer

Body

Marble

Jinan of China





PCB V Groove Machine-0.05mm CNC V Cut For Making V-cut Line On PCB Panel:



Specially designed for precision PCB V groove cutting machining



The intelligent control system,high precision linear slide rail and ball screw,

Hang PIN maching,

Can process one or more pieces FR4 or aluminum panel at the same time,

Designed specifically for PCB sheet,

All of the base beams adopt high quality granite,have a high precision and a good stability.
