0.4mm Thickness PCB Automatic Scoring Machine With Electronic Control System

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

0.4mm Thickness PCB Automatic Scoring Machine With Electronic Control System

China 0.4mm Thickness PCB Automatic Scoring Machine With Electronic Control System supplier
0.4mm Thickness PCB Automatic Scoring Machine With Electronic Control System supplier 0.4mm Thickness PCB Automatic Scoring Machine With Electronic Control System supplier

Large Image :  0.4mm Thickness PCB Automatic Scoring Machine With Electronic Control System

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-YB1200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
Processing Thickness: 0.4mm~3.2mm Residual Thickness: ±0.05mm
Pitch: ±0.05mm Processing Speed: 0-40m/min
Min Processing Size: 105mmx105mm Weight: 1500Kg
High Light:

v grooving machine for pcb

,

v groove cutting machine

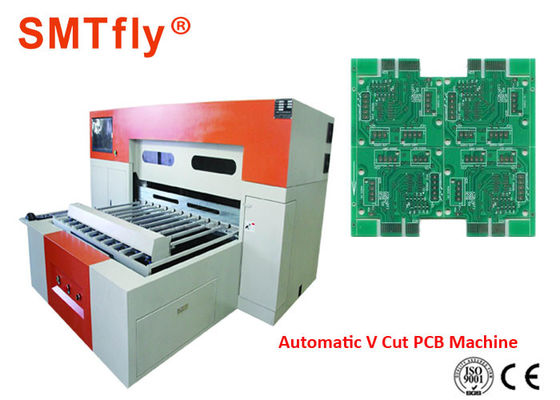

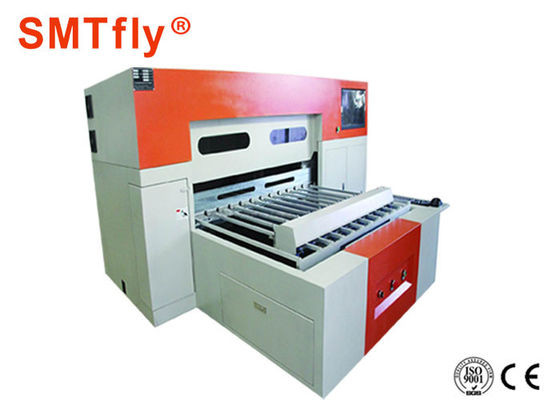

0.4mm Thickness PCB Scoring Machine for PCB V Cut Line on PCB Panel,SMTfly-YB1200 Specifications:


Max processing size 1250mmx650mm
Min processing size 105mmx105mm
Processing thickness 0.4mm~3.2mm
Processing position the origin to the first knife up to 7.0mm or more
Processing pitch setting within parameters,Full-closed loop auto-correction function
Number of jumps set in the parameters
Processing accuracy Residual thickness ±0.05mm
Parallel ±0.05mm
Pitch ±0.05mm
Processing speed 0-40m/min
Machine size 2030(W)x2350(L)x1665(H)
Machine weight 1500kg


0.4mm Thickness PCB Scoring Machine for PCB V Cut Line on PCB Panel Features:

Electronic Control System Introduction:

Upper and lower cutters adopt Mitsubishi servo motor with 3μ precision;
Maximum speed 3500rpm Maximum output power 400W;
Push plate axis adopts Mitsubishi servo motor specification accuracy of 3μ;
Maximum speed 3500rpm Maximum output power 700W;
Cutter shaft adopts Japan Mitsubishi servo motor specification accuracy is 3μ;
Maximum speed 3500rpm Maximum output power 1500W;
The upper and lower grinding wheels adopt Japanese Fuji servo motor with the specification precision of 5μ;
Maximum speed 8000rpm Maximum output power 400W;
PLC module controller adopts six-axis motion control;
Its control stability is high.

Software introduction:

System data and PC integrated management;
Processing data transmission completed in 10 seconds;
Chinese operation interface circular operation is simple;
Processing data file management up to tens of thousands of pens;
With processing data search function and delete function.

Non-board full-scale tester:

This machine adopts West German set of pin action process;
Humanized operation flow makes processing more smooth.

Production board function:

With ergonomic operation height, the operator can be more handy;
The height of the main body of the machine can make the operator more comfortable;
The main structure of the machine is relieved of stress and strengthened with steel to increase stability;
The entire process is highly accurate, yields amazing, and increases efficiency.

Gripper function description:

This machine uses eleven independent cylinder jaws;
Can adjust the cylinder flow rate;
The space nail is precision ground 2.25~3.20mm;
Can be used as a set of pin dual purpose;
Automatic stripping function.

0.4mm Thickness PCB Scoring Machine for PCB V Cut Line on PCB Panel Application:

SMTfly-YB1200 automatic V-CUT machine, suitable for PCB aluminum substrate processing.

With marble as a working platform, it has stable performance and high performance-to-price ratio and is recognized by our customers.
