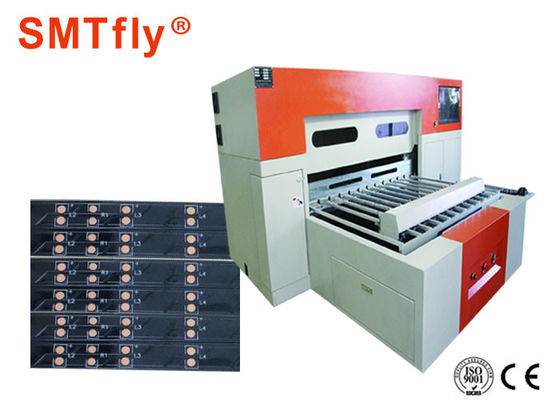

V Groove Line Making PCB Scoring Machine Highly Automated SMTfly-YB1200

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

V Groove Line Making PCB Scoring Machine Highly Automated SMTfly-YB1200

China V Groove Line Making PCB Scoring Machine Highly Automated SMTfly-YB1200 supplier
V Groove Line Making PCB Scoring Machine Highly Automated SMTfly-YB1200 supplier V Groove Line Making PCB Scoring Machine Highly Automated SMTfly-YB1200 supplier

Large Image :  V Groove Line Making PCB Scoring Machine Highly Automated SMTfly-YB1200

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-YB1200

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days
Supply Ability: 50Sets/Month
Contact Now
Detailed Product Description
Processing Thickness: 0.4mm~3.2mm Residual Thickness: ±0.05mm
Pitch: ±0.05mm Processing Speed: 0-40m/min
Min Processing Size: 105mmx105mm Weight: 1500Kg

Automated PCB V-Scoring Solutions for Making V Groove Line,SMTfly-YB1200 Features:


Electronic Control System Introduction:

Upper and lower cutters adopt Mitsubishi servo motor with 3μ precision;
Maximum speed 3500rpm Maximum output power 400W;
Push plate axis adopts Mitsubishi servo motor specification accuracy of 3μ;
Maximum speed 3500rpm Maximum output power 700W;
Cutter shaft adopts Japan Mitsubishi servo motor specification accuracy is 3μ;
Maximum speed 3500rpm Maximum output power 1500W;
The upper and lower grinding wheels adopt Japanese Fuji servo motor with the specification precision of 5μ;
Maximum speed 8000rpm Maximum output power 400W;
PLC module controller adopts six-axis motion control;
Its control stability is high.

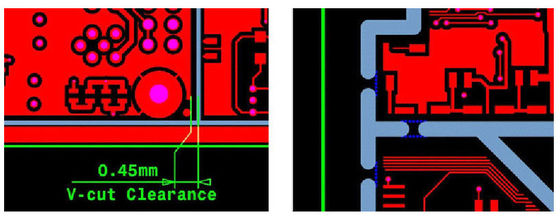

Automated PCB V-Scoring Solutions for Making V Groove Line Application:

SMTfly-YB1200 automatic V-CUT machine, suitable for PCB aluminum substrate processing.

With marble as a working platform, it has stable performance and high performance-to-price ratio and is recognized by our customers.



Automated PCB V-Scoring Solutions for Making V Groove Line Specifications:



Max processing size 1250mmx650mm
Min processing size 105mmx105mm
Processing thickness 0.4mm~3.2mm
Processing position the origin to the first knife up to 7.0mm or more
Processing pitch setting within parameters,Full-closed loop auto-correction function
Number of jumps set in the parameters
Processing accuracy Residual thickness ±0.05mm
Parallel ±0.05mm
Pitch ±0.05mm
Processing speed 0-40m/min
Machine size 2030(W)x2350(L)x1665(H)
Machine weight 1500kg


Automated PCB V-Scoring Solutions for Making V Groove Line Parameters:



Software introduction:

System data and PC integrated management;
Processing data transmission completed in 10 seconds;
Chinese operation interface circular operation is simple;
Processing data file management up to tens of thousands of pens;
With processing data search function and delete function.

Non-board full-scale tester:

This machine adopts West German set of pin action process;
Humanized operation flow makes processing more smooth.

Production board function:

With ergonomic operation height, the operator can be more handy;
The height of the main body of the machine can make the operator more comfortable;
The main structure of the machine is relieved of stress and strengthened with steel to increase stability;
The entire process is highly accurate, yields amazing, and increases efficiency.

Gripper function description:

This machine uses eleven independent cylinder jaws;
Can adjust the cylinder flow rate;
The space nail is precision ground 2.25~3.20mm;
Can be used as a set of pin dual purpose;
Automatic stripping function.
