Processing Thickness: 0.4mm~3.2mm Residual Thickness: ±0.05mm
Pitch: ±0.05mm Processing Speed: 0-40m/min
Min Processing Size: 105mmx105mm Weight: 1500Kg

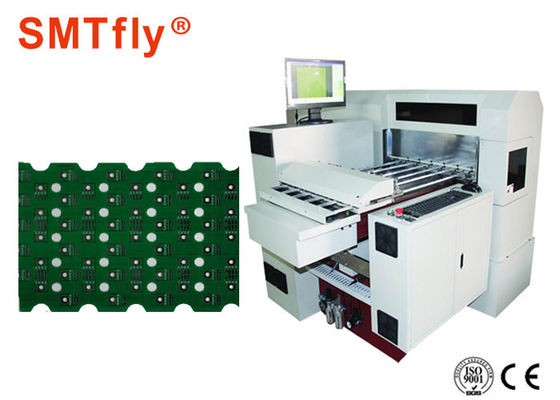

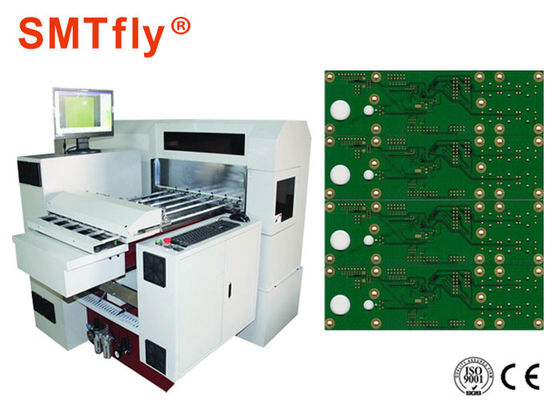

Making V - Cut Line On PCB Panel V PCB Scoring Machine,SMTfly-YB630 Application:



SMTfly-YB630 automatic V-CUT machine, suitable for PCB molding processing.

Stable performance, high cost performance, get the majority of customers affirmed.



Making V - Cut Line On PCB Panel V PCB Scoring Machine Features:



Software introduction:



System data and PC integrated management;

Processing data transmission completed in 10 seconds;

Chinese operation interface circular operation is simple;

Processing data file management up to tens of thousands of pens;

With processing data search function and delete function.



Non-board full-scale tester:



This machine adopts West German set of pin action process;

Humanized operation flow makes processing more smooth.



Production board function:



With ergonomic operation height, the operator can be more handy;

The height of the main body of the machine can make the operator more comfortable;

The main structure of the machine is relieved of stress and strengthened with steel to increase stability;

The entire process is highly accurate, yields amazing, and increases efficiency.



Gripper function description:



This machine uses seven independent cylinder type jaws;

Can adjust the cylinder flow rate;

The space nail is precision ground 2.25~3.20mm;

Can be used as a set of pin dual purpose;

Automatic stripping function.



Making V - Cut Line On PCB Panel V PCB Scoring Machine Specifications:



Max processing size 630mmx630mm
Min processing size 105mmx105mm
Processing thickness 0.3mm~3.2mm
Processing position from the origin to the first knife up to 7.0mm or more
Processing pitch setting within parameters,Full-closed loop auto-correction function
Number of jumps set in the parameters
Processing accuracy Residual thickness±0.05mm
Parallel ±0.05mm
Pitch ±0.05mm
Processing speed 0-50m/min
Machine size 1850(W)x2000(L)x1400(H)
Machine weight 1500kg



Making V - Cut Line On PCB Panel V PCB Scoring Machine Electronic Control System Introduction:



Upper and lower cutters adopt Mitsubishi servo motor with 3μ precision;

Maximum speed 3500rpm Maximum output power 200W;

Push plate axis adopts Mitsubishi servo motor specification accuracy of 3μ;

Maximum speed 3500rpm Maximum output power 400W;

Cutter shaft adopts Japan Mitsubishi servo motor specification accuracy is 3μ;

Maximum speed 3500rpm Maximum output power 700W;

The upper and lower grinding wheels adopt Japanese Fuji servo motor with the specification precision of 5μ;

Maximum speed 8000rpm Maximum output power 400W;

PLC module controller adopts six-axis motion control;

Its control stability is high.
