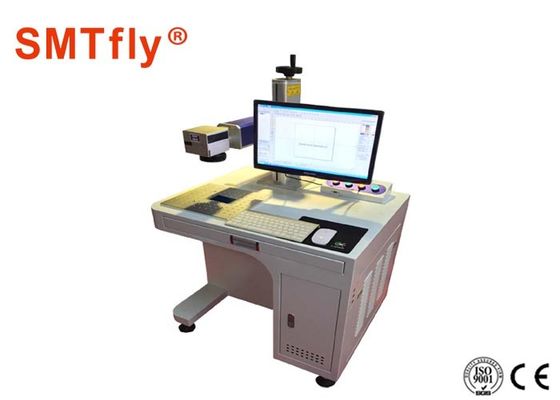

Industrial Laser Marking Equipment , High Efficiency Pcb Laser Etching Machine SMTfly-DB2A

China Industrial Laser Marking Equipment , High Efficiency Pcb Laser Etching Machine SMTfly-DB2A supplier
Industrial Laser Marking Equipment , High Efficiency Pcb Laser Etching Machine SMTfly-DB2A supplier Industrial Laser Marking Equipment , High Efficiency Pcb Laser Etching Machine SMTfly-DB2A supplier

Large Image :  Industrial Laser Marking Equipment , High Efficiency Pcb Laser Etching Machine SMTfly-DB2A

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-2A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1-Set
Packaging Details: plywood
Delivery Time: 15 working days
Supply Ability: 50Sets/Month
Detailed Product Description
Control Interface: Standard USB Marking Range: 300*300mm
Focus Spot Diameter: <0.01mm Laser Wave Length: 1064 Mm
Power: 20W Power Source: 110V
Marking Speed: ≤800 Standard Characters /s Color: White
High Light:

co2 laser marking machine

,

fiber laser marking machine

0.03 Accuracy PCB Laser Marking Machine with Fiber,SMTfly-DB2A Specification:



ModelSMTfly‐DB2A
Power20w
Laser wave length1064 mm
Repetition frequency20‐500KHZ
Temoo gaussian beam<2
Laser output power10%‐100% continuous adjustable
Power stability(8h)±1%rms
Focus spot diameter<0.01mm
Amrking machine typeStatic/dynamic marking
Marking range300*300mm
Marking depth≤1.2mm
Marking speed≤800 standard characters /s
Min line width0.01mm
Min character0.15mm
Repeat accuracy±0.03
Dimension65*80*130cm
Weight75kgs
Operation systemWindows 7
CoolingBuild-in air cooling
Control interfaceStandard USB
Beam qualityM2<1.5
Operating ambient temperature15-35degrees Celsius
Power source110V

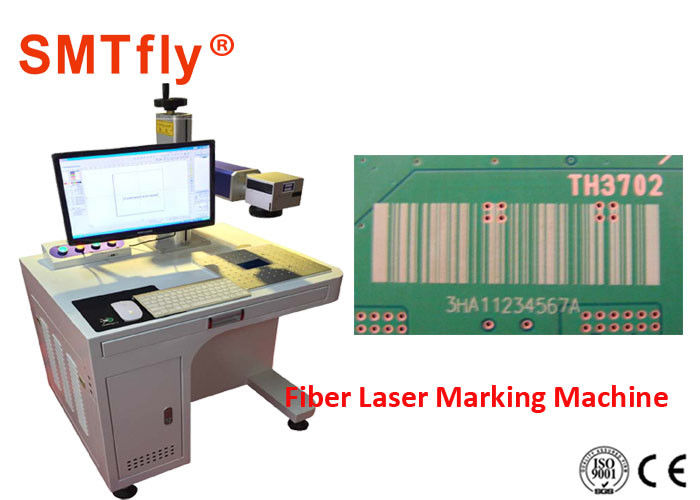

0.03 Accuracy PCB Laser Marking Machine with Fiber Description:

The products are mainly for the metal laser marking, professional design, also part of the plastic products processing can also be applicable to the equipment, the machine uses the professional fiber laser, domestic and imported configuration, meet the needs of customers for a variety of materials, the device width adjustable, let users a wider scope of application. The laser adopts integrated whole structure, no optical pollution and power coupling loss, air cooling, high efficiency, long life and less maintenance.


0.03 Accuracy PCB Laser Marking Machine with Fiber Features:



  • Fiber laser marking machine beam quality than the traditional solid laser marking machine, as the base mode (TEMOO) output, gathering spot diameter 10um, divergence angle is the 1/4 of the semiconductor pump laser. Particularly suitable for precision, fine marking.
  • Electronic optical conversion efficiency is up to 30%, the whole power consumption less than 500W, is the lamp pumped solid laser marking machine 1/10, greatly saving energy consumption expenditure.
  • The laser does not require any maintenance, nor does it need to adjust or clean the lens.
  • Using a laser diode as the pumping source, the average working time is 10 hours.
  • The processing speed is 2‐3 times of the traditional laser marking machine.


0.03 Accuracy PCB Laser Marking Machine with Fiber Applications:

The laser marking machine is mainly applied on metals and some non‐ metals, especially designed for the industrials have high requirements in depth, smoothness and fineness, such as Jigs, mould, electrical appliances, electronic communication, auto parts, precision metal, jewelry gifts, watch glasses, instrumentation and sanitary industry, not suitable for high reflective material.
