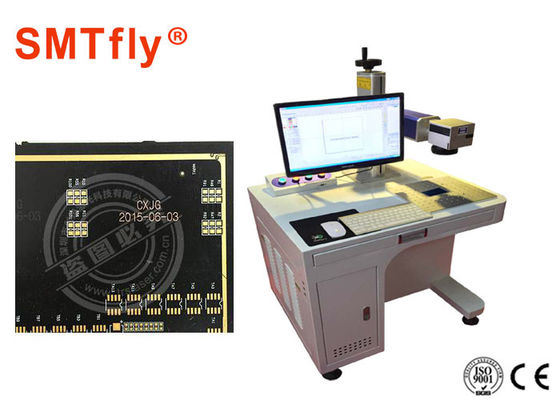

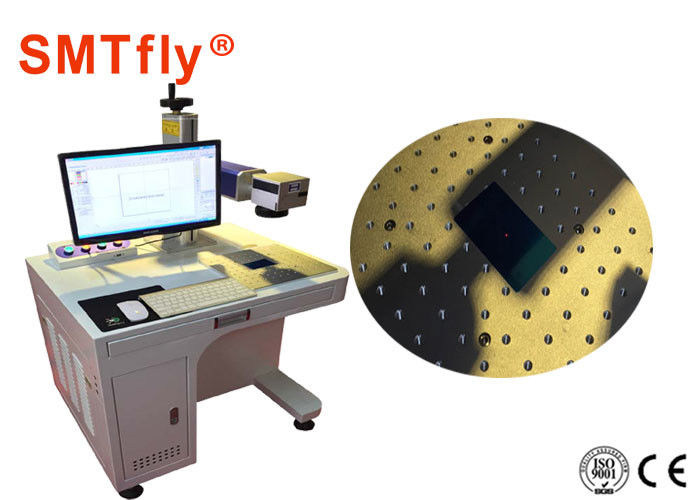

Customized PCB Laser Marking Machine For Metals / Non Metals 110V SMTfly-DB2A

China Customized PCB Laser Marking Machine For Metals / Non Metals 110V SMTfly-DB2A supplier
Customized PCB Laser Marking Machine For Metals / Non Metals 110V SMTfly-DB2A supplier Customized PCB Laser Marking Machine For Metals / Non Metals 110V SMTfly-DB2A supplier

Large Image :  Customized PCB Laser Marking Machine For Metals / Non Metals 110V SMTfly-DB2A

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-DB2A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1-Set
Packaging Details: plywood
Delivery Time: 15 working days
Supply Ability: 50Sets/Month
Detailed Product Description
Marking Range: 300*300mm Focus Spot Diameter: <0.01mm
Laser Wave Length: 1064 Mm Power: 20W
Power Source: 110V Marking Speed: ≤800 Standard Characters /s
High Light:

pcb marking system

,

fiber laser marking machine

Customized PCB Laser Marking Machine for Different Kind of Meterials,SMTfly-DB2A Features:



Fiber laser marking machine beam quality than the traditional solid laser marking machine, as the base mode (TEMOO) output, gathering spot diameter 10um, divergence angle is the 1/4 of the semiconductor pump laser. Particularly suitable for precision, fine marking.

Electronic optical conversion efficiency is up to 30%, the whole power consumption less than 500W, is the lamp pumped solid laser marking machine 1/10, greatly saving energy consumption expenditure.

The laser does not require any maintenance, nor does it need to adjust or clean the lens.

Using a laser diode as the pumping source, the average working time is 10 hours.

The processing speed is 2‐3 times of the traditional laser marking machine.



Customized PCB Laser Marking Machine for Different Kind of Meterials Description:


The products are mainly for the metal laser marking, professional design, also part of the plastic products processing can also be applicable to the equipment, the machine uses the professional fiber laser, domestic and imported configuration, meet the needs of customers for a variety of materials, the device width adjustable, let users a wider scope of application. The laser adopts integrated whole structure, no optical pollution and power coupling loss, air cooling, high efficiency, long life and less maintenance.


Customized PCB Laser Marking Machine for Different Kind of Meterials Applications:


The laser marking machine is mainly applied on metals and some non‐ metals, especially designed for the industrials have high requirements in depth, smoothness and fineness, such as Jigs, mould, electrical appliances, electronic communication, auto parts, precision metal, jewelry gifts, watch glasses, instrumentation and sanitary industry, not suitable for high reflective material.



Customized PCB Laser Marking Machine for Different Kind of Meterials Specification:



Model SMTfly‐DB2A
Power 20w
Laser wave length 1064 mm
Repetition frequency 20‐500KHZ
Temoo gaussian beam <2
Laser output power 10%‐100% continuous adjustable
Power stability(8h) ±1%rms
Focus spot diameter <0.01mm
Amrking machine type Static/dynamic marking
Marking range 300*300mm
Marking depth ≤1.2mm
Marking speed ≤800 standard characters /s
Min line width 0.01mm
Min character 0.15mm
Repeat accuracy ±0.03
Dimension 65*80*130cm
Weight 75kgs
Operation system Windows 7
Cooling Build-in air cooling
Control interface Standard USB
Beam quality M2<1.5
Operating ambient temperature 15-35degrees Celsius
Power source 110V
