10w 20w 30w Portable Laser Marking Machine , PCB Laser Labeling Machine No Restriction

China 10w 20w 30w Portable Laser Marking Machine , PCB Laser Labeling Machine No Restriction supplier
10w 20w 30w Portable Laser Marking Machine , PCB Laser Labeling Machine No Restriction supplier 10w 20w 30w Portable Laser Marking Machine , PCB Laser Labeling Machine No Restriction supplier

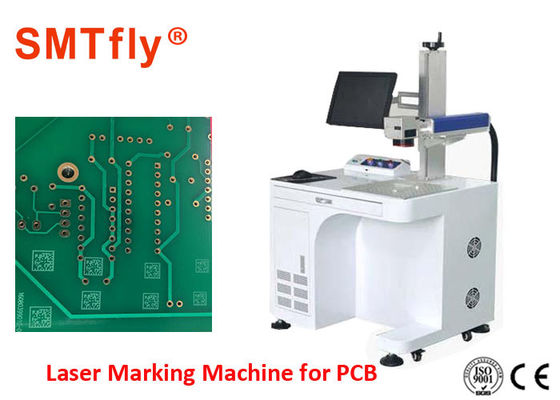

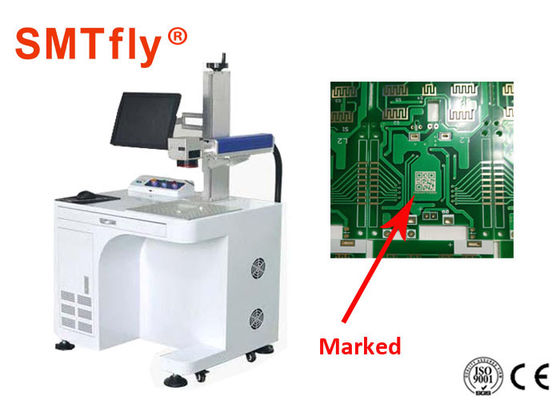

Large Image :  10w 20w 30w Portable Laser Marking Machine , PCB Laser Labeling Machine No Restriction

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-DB6A

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD1-Set
Packaging Details: plywood
Delivery Time: 15 working days
Supply Ability: 50Sets/Month
Detailed Product Description
Power: 10W/20W/30W Marking Area: 110mmx110mm
Laser Wavelength: 1064nm Laser Marking Depth: ≤5mm
Beam Quality: M2 <1.5 Power Input: 220V‐50HZ
High Light:

pcb marking system

,

co2 laser marking machine

Optional 10w 20w 30w Portable Laser Pcb Labeling Machine No Restriction,SMTfly-DB6A Specification:



Device Item No. SMTfly-DB6A10 SMTfly-DB6A20 SMTfly-DB6A30
Power 10W 20W 30W
Laser Brand SMTfly
Laptop Computer Including one laptop for each set, build‐in laser marking software.
Laser Marking Machine Type Portable, optional for desktop laser marking devices items.
Laser Wavelength 1064nm
Device Marking Area 110mmx110mm
Optional Marking Area 210mmx210mm / 310mmx310mm
Laser Marking Depth ≤5mm(depending on material and marking time).
Laser Marking Speed ≤7,000 mm/s
Minimum Line Width 0.01mm
Minimum Character 0.15mm
Repeated Precision ±0.003mm
Life‐span of Fiber Laser Marking 100,000 hours
Beam Quality M2 <1.5
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted.
System Operation Environment Windows XP / Win7(32/64bits) / Win8(32/64bits)/Win10.
Cooling Mode Built‐in fan for Air cooling.
Power Input 220V‐50HZ(single phase) or 110V‐60HZ(single phase).
Laser marking software Ezcad professional marking software, English version.



Optional 10w 20w 30w Portable Laser Pcb Labeling Machine No Restriction Features:

  1. High precision and speed. Marking depth can be controlled easily. Continue working no need mainte nance;
  2. U.A.S imported RF tube together with high speed galvanometer and path expander fans system. sta ble path fast marking;
  3. BML-CG economic design with glass CO2 tube .High power big working site with lower price;
  4. Industry computer, strong anti-interference and adaptation stable working position for 24 working;
  5. Red position system avoids material waste;
  6. Multi-function software with friendly interface support win7/xp/2000 together with many languages version. Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN cod e;
  7. Supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level grey image. Image processing for grey conversion, black white conversion and dot;
  8. Free control system and outside equipment.
About us:

SMTfly is a leader in PCB Separator, hot bar soldering machine & other SMT equipments, it provides high-end PCB manufacturing machines for industrial factories in this word.
SMTfly was found in September of 2004, it is a professional technology equipment manufacturer with R&D , production , sales and service in one line.
SMTfly head office is located at Ganghuaxing industrial park , Fuyong Town, Shenzhen.
Adhere to the "customer as the center" , meet the needs of the electronic industry customers by technological innovation & management optimization.
SMTfly help you soar!
