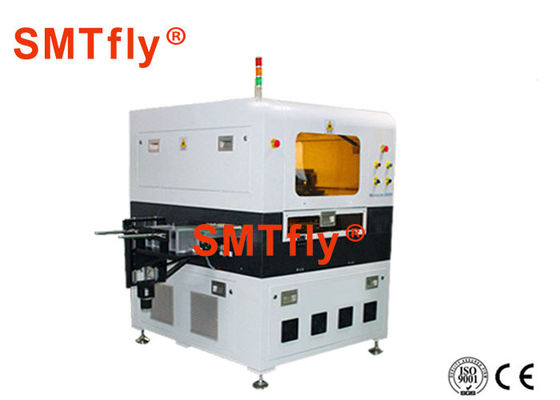

UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L

Certification
Good quality PCB Depaneling Router Machine for sales
Good quality PCB Depaneling Router Machine for sales
I'm Online Chat Now

UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L

China UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L supplier
UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L supplier UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L supplier

Large Image :  UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD/1Set
Packaging Details: Wooden Box
Delivery Time: After payment 15-30 working days
Contact Now
Detailed Product Description
Platform Repeatability: ± 2 μm Laser Wavelength: 355nm
Focus Spot Diameter: 20 ± 5 μm Laser Scanning Speed: 2500mm/s (max)
Laser Power: 10W/12W/15W/18W@30KHz Galvanometer Working Field Per One Process: 40mmх40mm
Laser Source: All-solid 355nm UV Laser Color: White

PCB (printed circuit board) Depaneling Using UV Laser-Laser PCB Depaneling Machine,SMTfly-5L​​Specification:



Laser Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength 355nm
Laser Power 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor ±2μm
Repetition Precision of Worktable of Linear Motor ±1μm
Effective Working Field 400mmX300mm(Customizable)
Laser Scanning Speed 2500mm/s (max)
Galvanometer Working Field Per One Process

40mmх40mm





Laser PCB Depaneling Machine Working Principle :



humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )



 Laser PCB Depaneling Machine Advantages:



1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3. Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance



UV Laser PCB Separator-Laser PCB Depaneling Machine Features:

  • Pre-camera vision product position registration and model check
  • Coherent Avia NX UV laser with HurrySCAN head
  • High capacity BOFA dust collector
  • User friendly Window based software
  • PCB flexible product jig adjustable for different board size
  • High resolution and accurate Z stage with auto-focus function
  • Large area low friction front loading platform for sliding multiple product jigs
  • Fully covered class 1 safety enclosure
  • Able to do cutting and marking together
  • Compact size

Sample for Inline PCB UV Laser Separating-PCB Separator Machine:

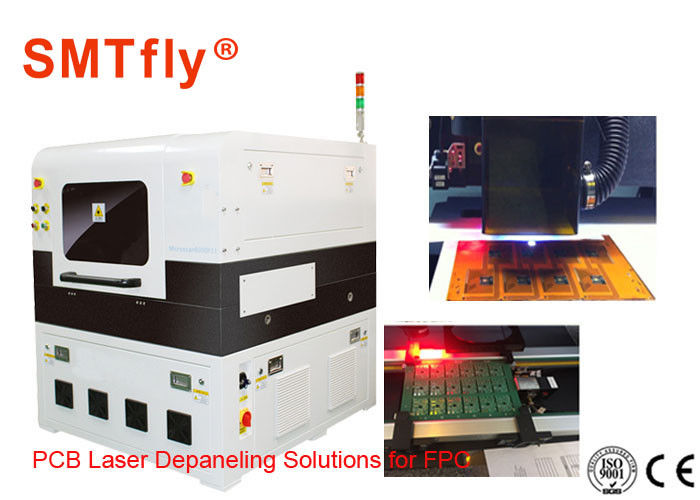

                       UV Laser PCB Depaneling Machine With Cutting And Marking Together SMTfly-5L



Why us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to foreign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



3. Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers



4. Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 14 years experience on PCB separator machines,PCB router machine and soldering machines.



Our R&D team continuously upgrade the existing machines to meet the market development trend.
