Repetition Precision: ±1μm Laser: Optowave UV
Laser Wavelength: 355nm Platform: Marble
Rated Power: 10W/12W/15W/17W Weight: 1500Kg

PCB De-panel Economic Laser Stand Alone Depanelize Machine,SMTfly-5S​Specification:



Technical Parameter

Main body of laser

1480*1360*1412

Weight

1500KG

Laser

355nm

Laser

Optoware 10W (US)

Material

≤1.2mm

Precision

±20μm

Platform

±2μm

Working Area

600*450mm

Maximum

3KW

Vibrating

CTI(US)

Power

AC220V

Diameter

20±5μm

Ambient

20±2℃

Ambient

< 60%

The Machine

Marble



PCB (printed circuit board) Depaneling using UV Laser Description:



PCB depaneling (singulation) laser machines and systems have been gaining popularity over recent years. Mechanical depanaling/singulation is done with routing, die cutting, and dicing saw methods. However, as the boards get smaller, thinner, flexible, and more sophisticated, those methods produce even more exaggerated mechanical stress to the parts. Large boards with heavy substrates absorb these stresses better, while these methods used on ever-shrinking and complex boards can result in breakage. This brings lower throughput, along with the added costs of tooling and waste removal associated with mechanical methods.

Increasingly, flexible circuits are found in the PCB industry, and they also present challenges to the old methods. Delicate systems reside on these boards and non-laser methods struggle to cut them without damaging the sensitive circuitry. A non-contact depaneling method is required and lasers provide a highly precise way of singulation without any risk of harming them, regardless of substrate.



PCB De-panel Economic Laser Stand Alone Depanelize Machine,SMTfly-5S​ Features:

  • High precision CCD automatic positioning, automatic focusing;

  • Fast and accurate positioning, save time and no worries;

  • Friendly interface,Simple operation, easy to use, free application;

  • Small size, Save more space;

  • rigorous security design;

  • Reduce energy consumption;

  • Cost savings;

  • Cost-effective, fast cutting speed,stable performance.



Advantages of Laser PCB Depaneling/Singulation Machine:



  • No mechanical stress on substrates or circuits
  • No tooling cost or consumables.
  • Versatility – ability to change applications by simply changing settings
  • Fiducial Recognition – more precise and clean cut
  • Optical Recognition before PCB depaneling/singulation process begins.
  • Ability to depanel virtually any substrate. (Rogers, FR4, ChemA, Teflon, ceramics, aluminum, brass, copper, etc)
  • Extraordinary cut quality holding tolerances as small as < 50 microns.
  • No design limitation – ability to cut virtually and size PCB board including complex contours and multidimensional boards

Application for Laser PCB Depaneling Machine:



  1.   FPC and some relative materials;
  2.   FPC/PCB/ Rigid‐Flex PCB cutting,
  3.   Camera module cutting.

FPC Laser Cutting/ Depaneling-Laser PCB Depaneling Machine with CE:

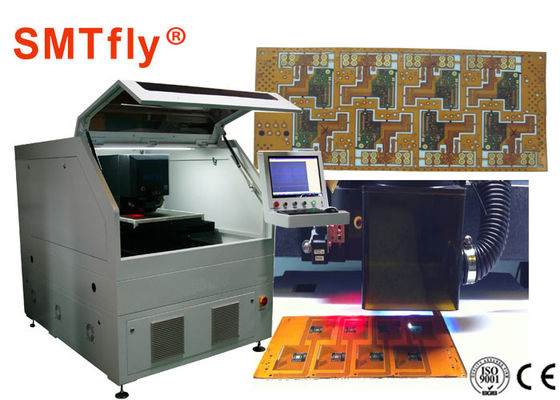

   Optowave UV Laser PCB Depaneling Machine Stand Alone Type Marble Platform SMTfly-5S



Why us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to foreign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
