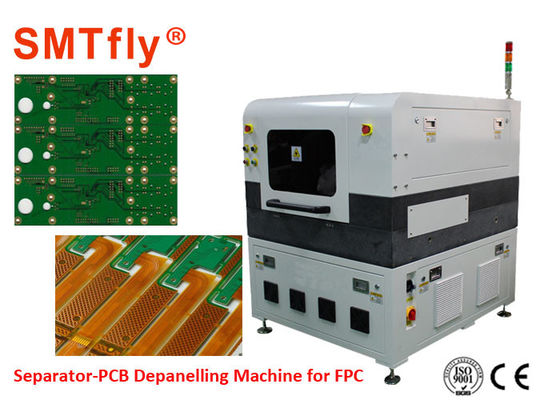

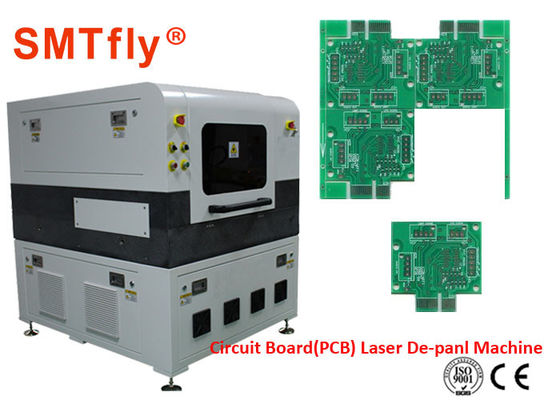

FPC Separator Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed SMTfly-5L

China FPC Separator Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed SMTfly-5L supplier
FPC Separator Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed SMTfly-5L supplier FPC Separator Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed SMTfly-5L supplier

Large Image :  FPC Separator Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed SMTfly-5L

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO
Model Number: SMTfly-5L

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: USD/1Set
Packaging Details: Wooden Box
Delivery Time: After payment 15-30 working days
Contact Now
Detailed Product Description
Laser Wavelength: 355nm Focus Spot Diameter: 20 ± 5 μm
Laser Scanning Speed: 2500mm/s (max) Laser Power: 10W/12W/15W/18W@30KHz
Galvanometer Working Field Per One Process: 40mmх40mm Laser Source: All-solid 355nm UV Laser
Platform Repeatability: ± 2 μm Weight: 1500Kg
High Light:

uv laser cutting machine

,

pcb laser cutting machine



FPC Separator 2500mm/s Laser Scanning Circuit Board PCB De-panel Machine,SMTfly-5L​ Features:



  • Pre-camera vision product position registration and model check
  • Coherent Avia NX UV laser with HurrySCAN head
  • High capacity BOFA dust collector
  • User friendly Window based software
  • PCB flexible product jig adjustable for different board size
  • High resolution and accurate Z stage with auto-focus function
  • Large area low friction front loading platform for sliding multiple product jigs
  • Fully covered class 1 safety enclosure
  • Able to do cutting and marking together
  • Compact size



FPC Separator 2500mm/s Laser Scanning Circuit Board PCB De-panel MachineSpecification:



Laser

Q-Switched diode-pumped all solid-state UV laser

Laser Wavelength

355nm

Laser Power

10W/12W/15W/18W@30KHz

Positioning Precision of Worktable of Linear Motor

±2μm

Repetition Precision of Worktable of Linear Motor

±1μm

Effective Working Field

400mmX300mm(Customizable)

Laser Scanning Speed

2500mm/s (max)

Galvanometer Working Field Per One Process

40mmх40mm



FPC Separator 2500mm/s Laser Scanning Circuit Board PCB De-panel Machine Working Principle :



humidity sensor ( humidity and temperature signal ) → Microcomputer ( CPU Central Processing Unit ) → Heaters ( PTC heating module polymer material heating ) → Smart shape memory alloy ( alloy shape with temperature change ) → Balance spring ( general balance spring with alloy )



Cutting PCB-Flex FPC Laser Depanelizer Machine Advantages:



1. High precision CCD automatic positioning, automatic focusing. Fast and accurate positioning, save time and no worries.

2. Friendly interface,Simple operation, easy to use, free application; Small size, Save more space; rigorous security design;

3. Reduce energy consumption, Cost savings.

Cost-effective, fast cutting speed, stable performance



Cutting PCB-Flex FPC Laser Depanelizer Machine Application:



FPC Separator Laser PCB Depaneling Machine 2500mm/S Laser Scanning Speed SMTfly-5L

Why us



1. Engineers available to service machinery oversea.



Engineers are available to be sent to foreign countries to do machinery training and offer technical support.

2. One year warranty for the machines except accessories.



Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.



3. Effective customer service.



All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and with departments, effectively communicate with one another, foster enthusiasm and participate in decision-making. To be easy reachable by customers and provide prompt replies to solve their problems and create value for customers



4. Mature technique & forerunner to process makes high quality machinery.



As largest manufactory in South China, we have 14 years experience on PCB separator machines,PCB router machine and soldering machines.



Our R&D team continuously upgrade the existing machines to meet the market development trend.
