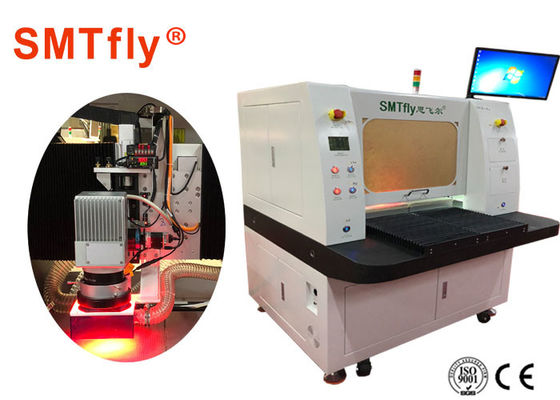

20μM CNC PCB UV Laser Cutting Machine SMTfly-LJ330 With 10W UV-PCB Separator

China 20μM CNC PCB UV Laser Cutting Machine SMTfly-LJ330 With 10W UV-PCB Separator supplier
20μM CNC PCB UV Laser Cutting Machine SMTfly-LJ330 With 10W UV-PCB Separator supplier 20μM CNC PCB UV Laser Cutting Machine SMTfly-LJ330 With 10W UV-PCB Separator supplier

Large Image :  20μM CNC PCB UV Laser Cutting Machine SMTfly-LJ330 With 10W UV-PCB Separator

Product Details:

Place of Origin: China
Brand Name: SMTfly
Certification: CE ISO9001
Model Number: SMTfly-LJ330

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: 1USD/Set
Packaging Details: plywood case
Delivery Time: 7-15 working days after payment
Supply Ability: 30/Sets/Year
Contact Now
Detailed Product Description
Laser Power Supply: AC220V / 3KW Machine Accuracy: ±20 μm
Positioning Accuracy: ±2 μm Repeat Ability: ±2 μm
Focus Spot Diameter: 20±5μm Thickness: ≤ 1.2 Mm
Weight: 150KG Color: White
High Light:

uv laser cutting machine

,

pcb laser cutting machine

20μm CNC PCB Laser Cutter Machine with 10W UV-PCB Separator SMTfly-LJ330 Features:



1 High Accuracy: The combination of a low-drift galvanometer and a fast ironless linear motor system platform enables fast cutting while maintaining micrometer-level accuracy.



2 easy to learn: independent research and development of Windows-based control software, easy-to-use Chinese interface, friendly and beautiful, powerful and diverse, easy to operate.



3 Intelligent Automated: Using high-precision CCD automatic positioning, focusing, positioning fast and accurate, without manual intervention, simple operation, to achieve the same type of one-button mode, greatly improve production efficiency. The galvanometer auto-calibration, auto-focusing and full automation are achieved. The laser displacement sensor is used to automatically adjust the height of the focus to the tabletop to achieve fast alignment and save time and effort.



20μm CNC PCB Laser Cutter Machine with 10W UV-PCB Separator Specification:



Size (L*W*H)

1250mm*1300mm*1600mm

Weight

1500Kg

Laser power supply

AC220V / 3KW

Laser Sources

All Solid State 355nm UV Lasers

Laser power

10W (customer-made or imported according to customer requirements)

Thickness

≤ 1.2 mm (depending on actual material)

Machine accuracy

±20 μm

Platform positioning accuracy

±2 μm

Platform repeat ability

±2 μm

Cutting web

Double Y table, single Y area 300*330mm

Focus spot diameter

20±5μm

Ambient temperature/humidity

20±2 °C/<60 %

Machine Tool Body

Galvo mirror system imported

Motion System

Full-closed AC linear motor system

Motion Control System

Original Import

Necessary hardware &software

Including PC and CAM software



20μm CNC PCB Laser Cutter Machine with 10W UV-PCB Separator Application:

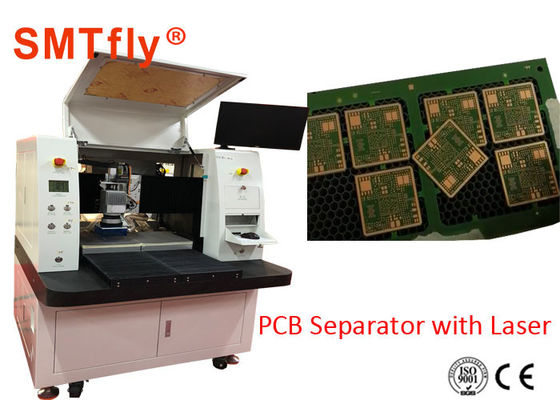

Suitable for cutting objects: FPC circuit board shape, chip cutting, mobile phone camera module.

Fragments, layers, blocks, or selected areas are cut and formed directly. The cutting edges are neat, smooth, smooth, and free of burrs. Products can be arranged in a matrix for automatic positioning and cutting, especially for fine, difficult, complex patterns and other exterior cutting

5High-performance laser: Adopting the solid-state UV laser of the international first-line brand, it has the advantages of good beam quality, small focal spot, uniform power distribution, small thermal effect, small kerf width and high cutting quality, which guarantees perfect cutting quality.
